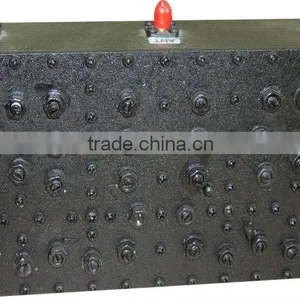

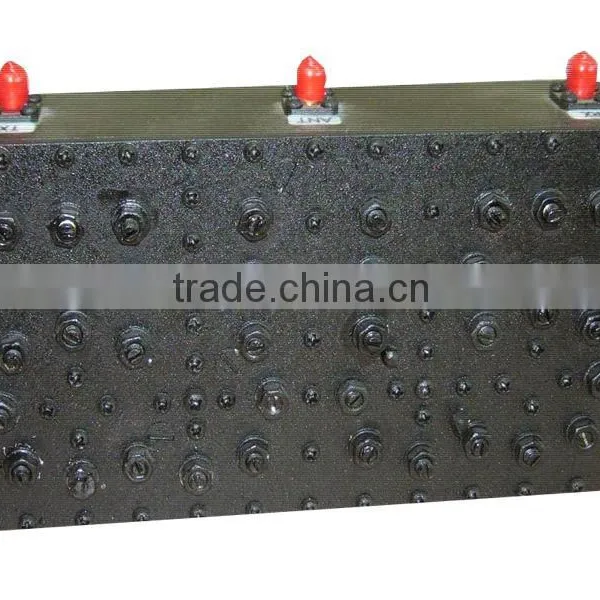

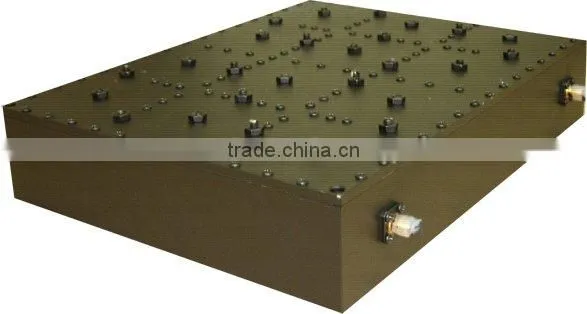

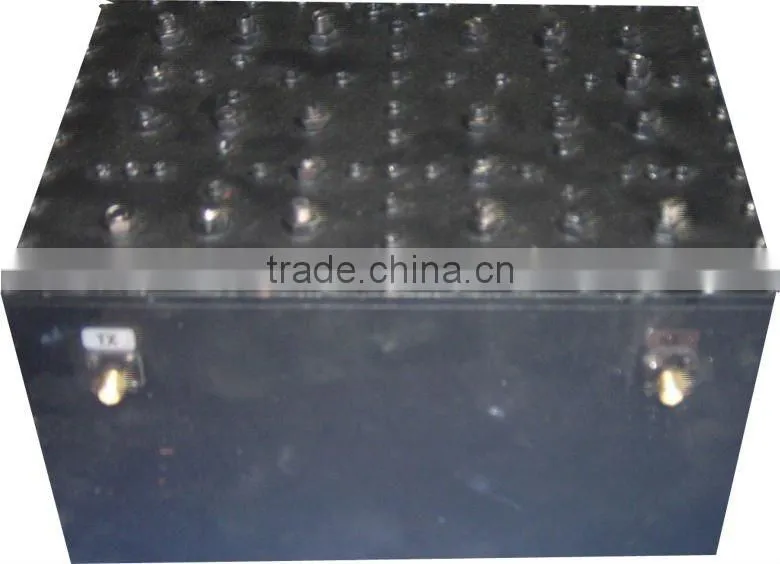

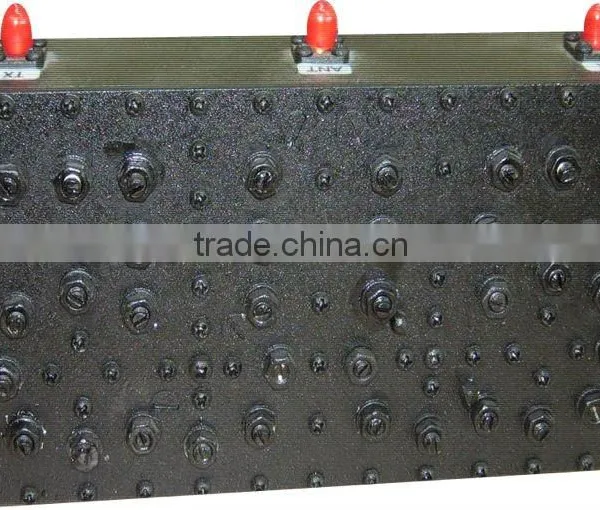

RF Duplexer 824-849MHz 869-894MHz CDMA800 or Gsm850mhz Duplexer
US$ 1 - 99
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
kingtone
Model Number:
KT-CDMA-
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OCXOUS$ 130 - 250MOQ: 1 Piece -
GSM 900MHz Repeater Duplexer, RF GSM Duplexer, GSM Cavity DuplexerUS$ 120 - 180MOQ: 1 Piece
-
Kingtone Cheap GSM 3G Fiber Optic Repeater Receiver Module - RF-Optical TransceiverNegotiableMOQ: 1 Piece
-
AC/DC Enclosed Standard Single OutputHF300-400W-S.pdfUS$ 1 - 2MOQ: 1 Set
-
VHF Duplexer GSM/WCDMA/DCS/CDMA/TETRA RepeaterUS$ 400 - 800MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
kingtone
Model Number
KT-CDMA-
Specifications
CDMA Duplexer:
1.High Q cavity design
2. High Power Handling
3.Low passive IMD
CDMA Duplexer Features:
1.High Q cavity design
2. High Power Handling
3.Low passive IMD
CDMA Duplexer Technical Specification:
Detailed Product Specification Model |
KT-CDMA-B |
memo |
|
Frequency |
824-849MHz |
869-894MHz |
Can design according customer specification |
Insertion Loss |
1.8dB typical 2.0dB max |
|
|
Ripple in Bang |
0.8dB p-p max |
|
|
VSWR |
1.3 Min |
|
|
Return Loss |
≥20dB @Pass Band |
|
|
Isolation |
≥90dB |
|
|
Coupling |
25dB±2dB |
|
|
Power Handling |
50W |
|
|
Operating Temperature |
-30 to +55 degree |
|
|
Storage Temperature |
-55 to +85 degree |
|
|
Operating Humidity |
0 to 90%, relative |
|
|
Port Connectors |
SMA-Female |
|
|
Surface Color |
Black or Gray |
Can design according customer specification |
|
