Home > Industrial Equipment & Components > Welding Equipment > Tube Welder > Narrow Gap Welding Station for Hydro Power Generator Shaft

Narrow Gap Welding Station for Hydro Power Generator Shaft

Narrow Gap Welding Station for Hydro Power Generator Shaft thumbnail-1
Narrow Gap Welding Station for Hydro Power Generator Shaft thumbnail-2
Narrow Gap Welding Station for Hydro Power Generator Shaft thumbnail-3
Narrow Gap Welding Station for Hydro Power Generator Shaft photo-1
Narrow Gap Welding Station for Hydro Power Generator Shaft photo-2
Narrow Gap Welding Station for Hydro Power Generator Shaft photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Certification:
CE, ISO
Contact Supplier Request Quote Chat Now
Wuxi Friendship Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Certification CE, ISO

Narrow gap welding station for hydro power generator shaft,



DESCRIPTION:

Specific Purpose:

For narrow gap welding of thick plate

Performance Characteristic

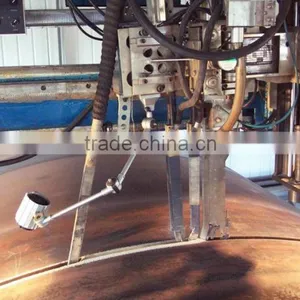

The system consists of narrow gap welding head, electrical cross sliding guide, two-dimensional tracing device, wire feeder with dual-direction straightening device, PEH control box, LAF-1000 power source, 4×4m manipulator, 200t turning rolls, control system, flux recovery and conveying system.

AC servo and specially designed narrow gap welding torch make the weave reliable

Long distance laser tracker can trace the seam bottom and the height of both sides

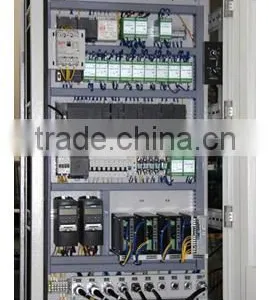

The control system consisting of PLC, touch screen and AC servo can make the weave bead automatically

Technical Parameter:



    VESSEL THICKNESS

≤350mm

   GROOVE WIDTH

18-24mm

    JOINT TYPE

NARROW GAP

   WIRE DIAMETER

3,4mm

  WEAVE ANGLE

±3.5°




Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Wuxi Friendship Machinery Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
Contact Supplier Request Quote Chat Now
