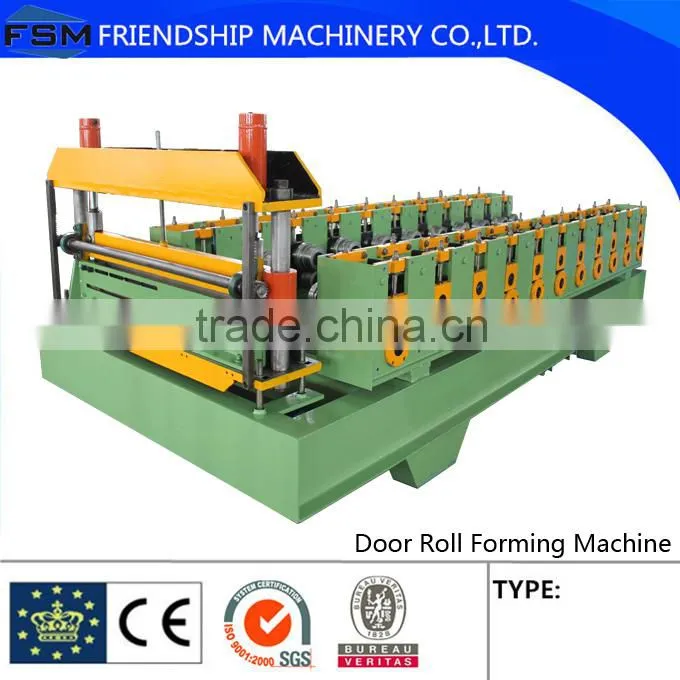

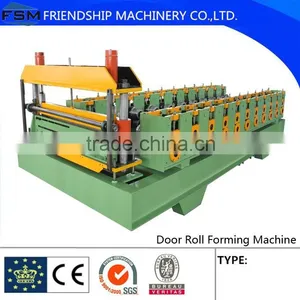

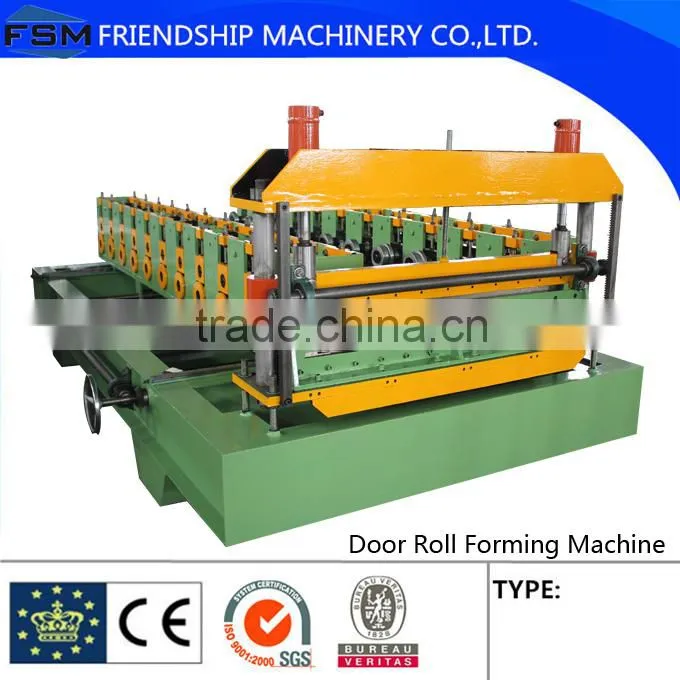

Metal Door Sheet Roll Forming Machine With 10 Forming Rollers

US$ 50,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Work Pressure:

normal pressures

Production Capacity:

100%

Wuxi Friendship Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Work Pressure normal pressures

Production Capacity 100%

Place of Origin China

Brand Name FSM

Model Number FSM062

Voltage 380v/410v

Power(W) 7.5kw

Dimension(L*W*H) 10*1*1.2M

Weight 6000kgs

Certification ce

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

Steel Frame Roll Forming Machine

Ⅰ:Composition of machine

Ⅱ: Details of each composition

Item	Sheet Roll Forming Machine
Coil Material	Thickness	0.3-2mm
	Coil width	Custom-made, 1000mm or 1200mm or 1250mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Roll Forming Machine	Forming Stations	16Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels
