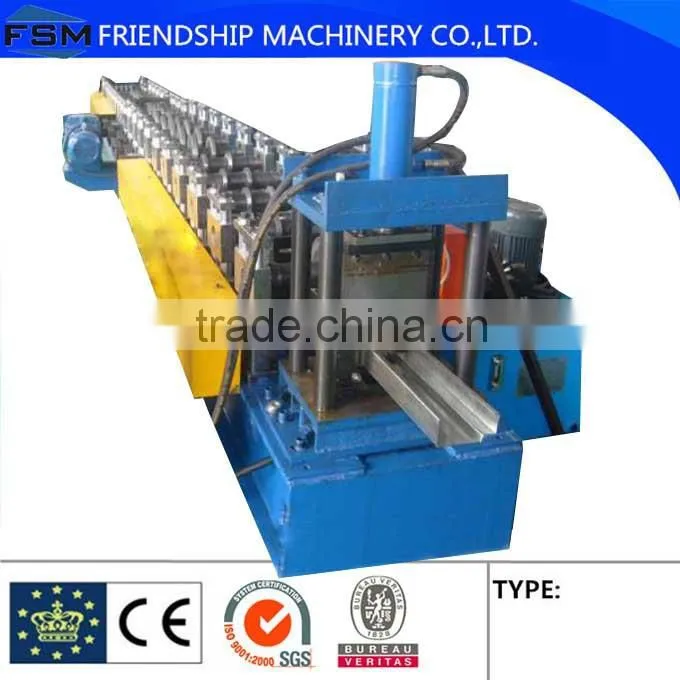

10 M/min Forming Speed Metal Door Frame Roll Forming Machine With 18 Forming Rollers

10 M/min Forming Speed Metal Door Frame Roll Forming Machine With 18 Forming Rollers thumbnail-1
10 M/min Forming Speed Metal Door Frame Roll Forming Machine With 18 Forming Rollers photo-1
US$ 50,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Work Pressure:
normal pressures
Production Capacity:
100%
Contact Supplier Request Quote Chat Now
Wuxi Friendship Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Work Pressure normal pressures
Production Capacity 100%
Place of Origin China
Brand Name FSM
Model Number FSM062
Voltage 380v/410v
Power(W) 7.5kw
Dimension(L*W*H) 10*1*1.2M
Weight 6000kgs
Certification ce
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Steel Frame Roll Forming Machine



Ⅰ:Composition of machine



Roll forming main machine 1 unit
Manual de-coiler 1 unit
Control panel 1 unit
Hydraulic station 1 unit
Manual out table 2 unit



Ⅱ: Details of each composition

A: Roll forming main machine

1: Coil width:311-361mm (396-438mm )

  effective size: 40x(125-175)mm      40x(210-250)mm

2: working speed: 8m—12m/min (not contain cutting)

3: roll station: about 23stations

4:Material of roller: High grade 45#, polished and coated with 0.05mm

Chrome Surface.

5:material of main shaft: 45# forge steel

6:diameter roller: 70mm

7: main power: 7.5KW

8: forming thickness: 1.5mm—2.5mm  250MPA

9: Transmission: by 1.2 inch double chain

10: weight: about 6000Kgs

11: color: blue

12: structure of frame: H beam steel plate

13:Cutting:

(1)Cutting type: adopt Hydraulic Cutting

(2)Cutting after forming: Cut the sheet after roll forming to required length

(3)Length measuring: Automatic length measuring

(4)Tolerance of length: 3m+/- 1.5mm
