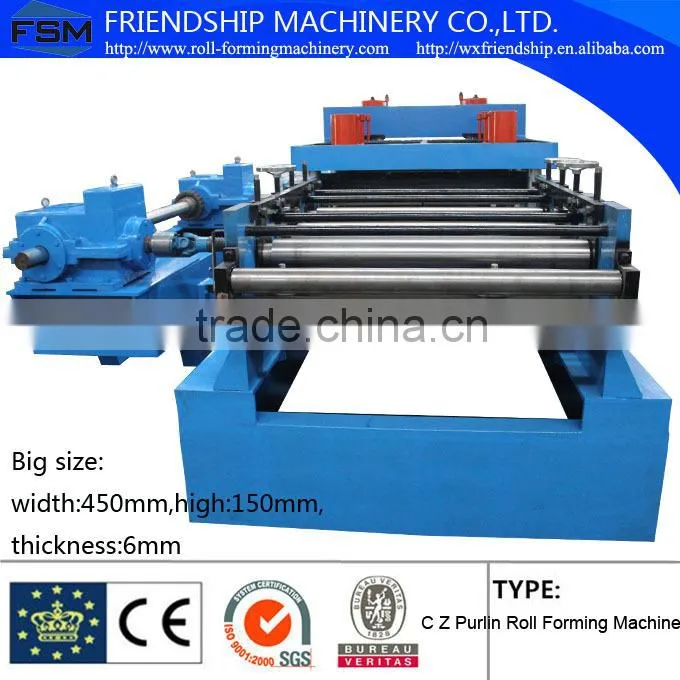

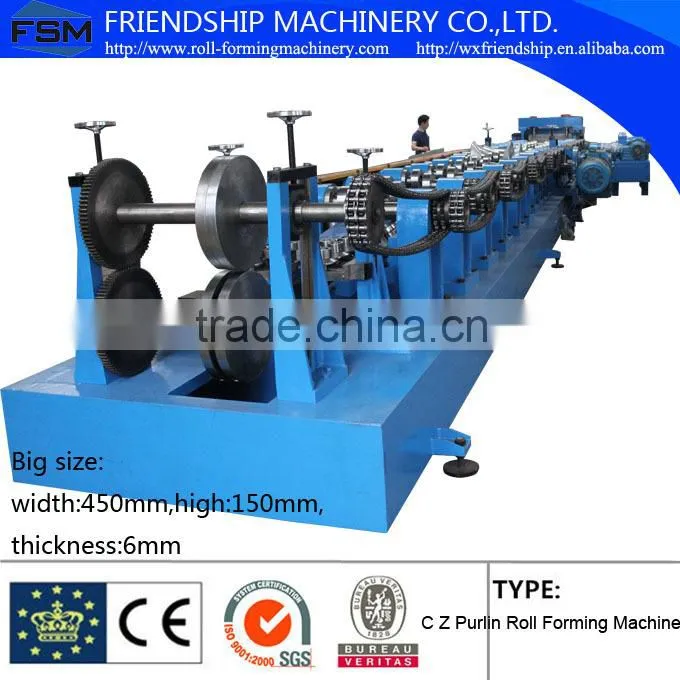

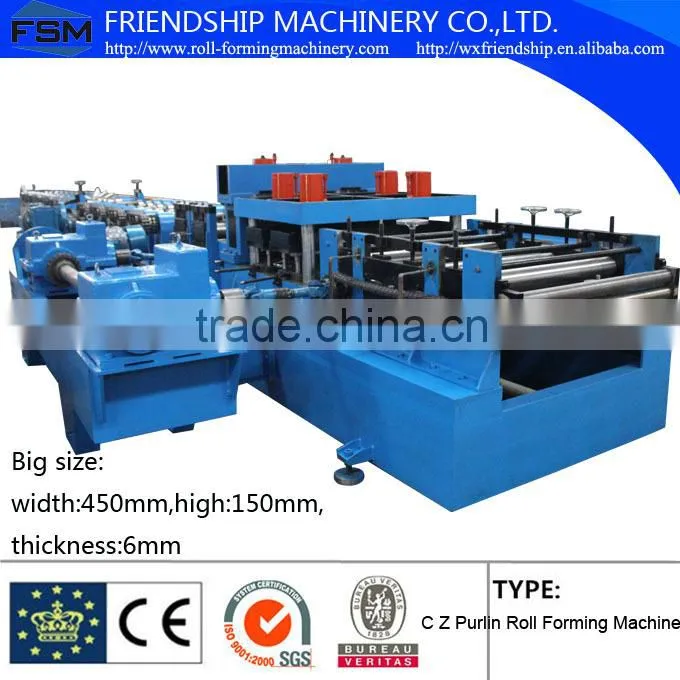

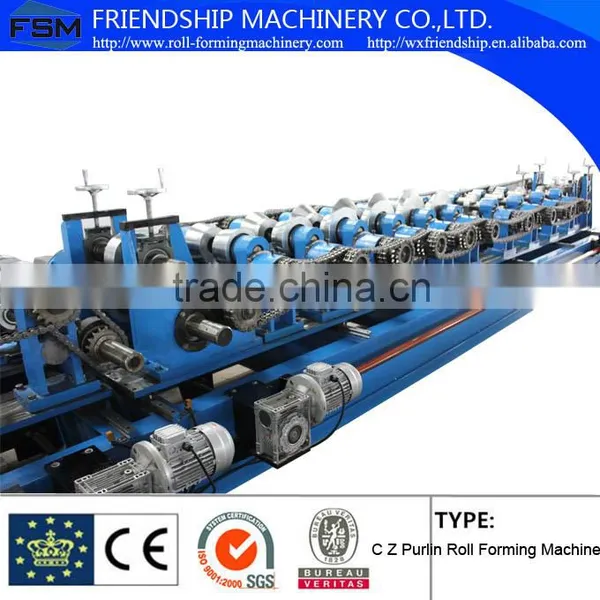

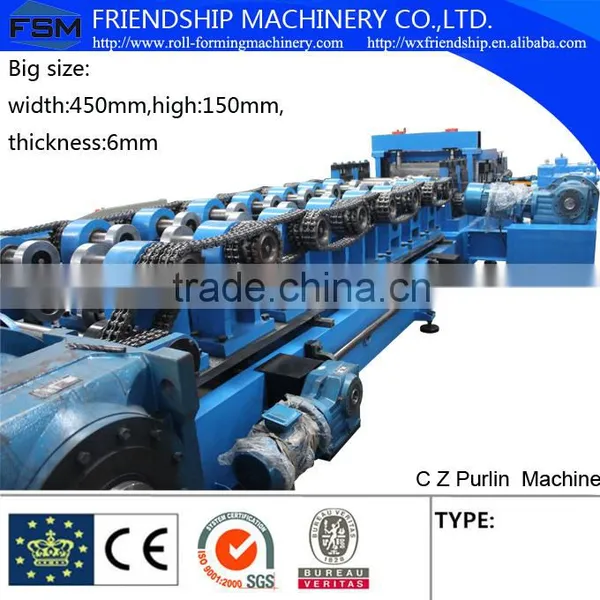

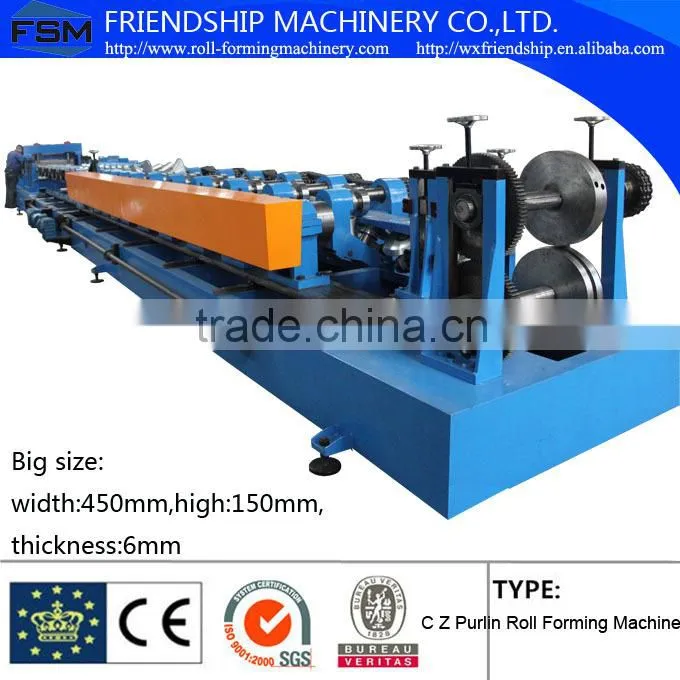

Gearbox Driven Automatic C Z Purlin Roll Forming Machine
The characteristic and function of this machine
Gearbos Driven Automatic c z Purlin Roll Forming Machine
1.C z purlin roll forming machine adopt new station to increase the firmness of the machine
2.The machine also adopt gearbox transmission to ensure machine working more stable
3.Machine use after-cutting to ensure quality of the cutting position of product very smooth
4.C Z purlin are widely used in steel structure building
Details of machine
automatic c z purlin roll forming machine
Item |
Description |
Material of roller : |
GCr15,quenched |
Material of shaft : |
45#forge steel |
Material of punching mold : |
Cr12 HRC 58-62 |
Material of cutting blade : |
CR12with heat treatment |
Main power : |
30KW |
Hydraulic power : |
30KW |
Working speed : |
10-20m/min (not include cutting and punching) |
Forming stations : |
20 stations |
Control system : |
PLC Panasonic |
Transmission : |
By chain and gearbox |
Automaticity : |
Semi-Automatic/Automatic |
Main dimension(L,W,H) : |
12m*2m*1.6m |
Total weight : |
40Ton |
Gearbox Driven High speed C Purlin Profile Roll Forming Machine
Main components of the machine
NO. |
Name |
Unit |
Qty |
1 |
Roll Forming Main Machine |
Set |
1 |
2 |
Hydraulic/Manual decoiler |
Set |
1 |
3 |
PLC Control System |
Set |
1 |
4 |
Hydraulic Punching Device |
Set |
1 |
5 |
Hydraulic Cutting Device |
Set |
1 |
6 |
Hydraulic Station |
Set |
1 |
7 |
Manual Out Table |
Set |
2 |
Some parts of machine
Name |
Describe |
|
|
Control panel (PLC Panasonic) |
Computer used to control length and quantity,the machine will automatically cut to length and stop when required quantity is achieved. |
|
Control panel:button-type switch and touch screen | ||
The program should be can set 5 different measure and quantity | ||
Tolerance of length: 3m+/- 1.5mm | ||
Voltage,Frequency,phase:415V,50HZ,3Phase | ||
|
Punching and cutting device |
Punching with hydraulic drive |
|
|
This machine with two sets punching system |
punching at end-wise controlled by PLC control system |
|
punching at broad-wise adjusted by manual | ||
|
Hydraulic Cutting before forming: Cut the sheet before roll forming to required length | ||
|
Cutting motion: The main machine automatically doesn't stop and the continue punching and cutting . | ||
|
Hydraulic decoiler
|
Hydraulic coiler car adopt motor advance (power:3KW, hydraulic up and down:12MPA) |
|
Single head to put the coil hydraulic flow over device | ||
Coil spec:Φ508×1300mm | ||
Flow over range:Φ460-520mm | ||
Oil cylinder:Φ160×90mm | ||
Transmission:drive by hydraulic brake | ||
Load bearing:10T | ||
Drawings and parameter of C purlin
Gearbox Driven High speed C Purlin Profile Roll Forming Machine
|
|
a |
120~450 |
b |
40~150 |
|
c |
14~25 |
Some pictures of machine
