Product Details
Condition: | New | Work Pressure: | normal pressures | Production Capacity: | 100% |
Place of Origin: | Jiangsu, China | Brand Name: | FSM | Model Number: | FSM-005008 |
Voltage: | 380V/50HZ | Power(W): | 15KW | Dimension(L*W*H): | 11000 x 1400 x 1400mm |
Weight: | 14TONS | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

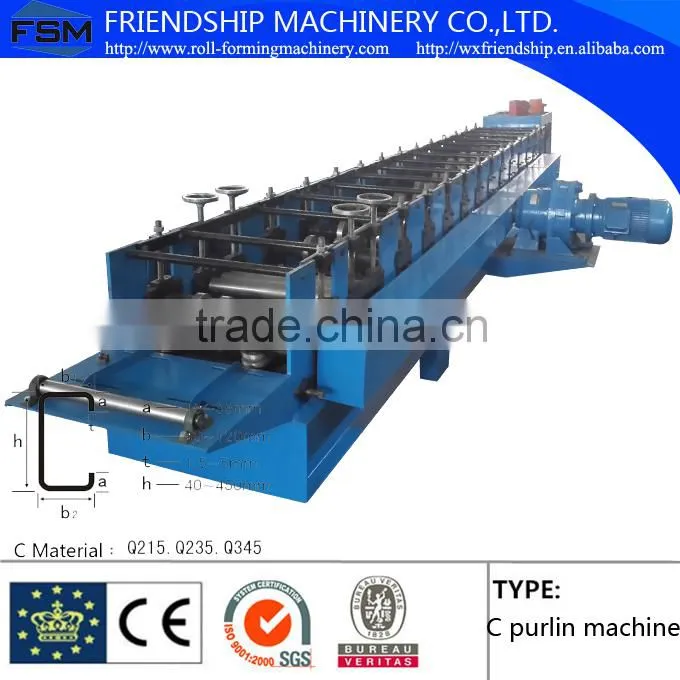

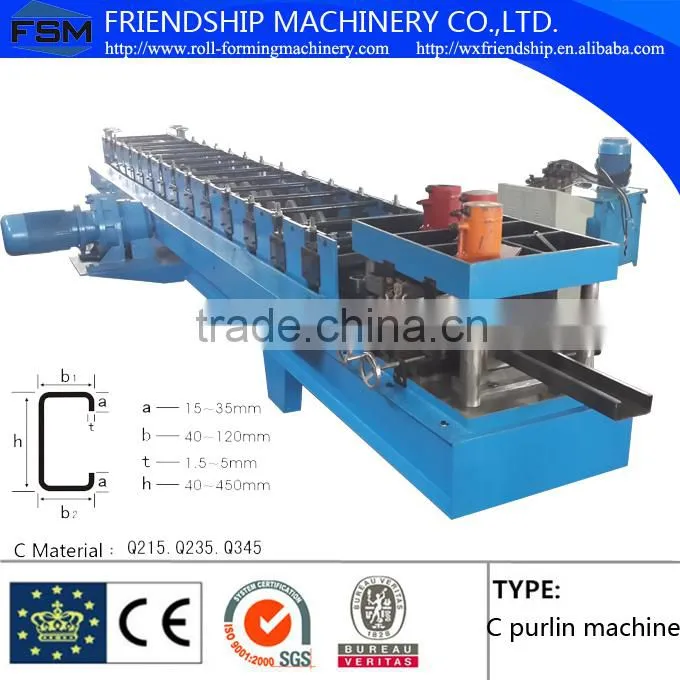

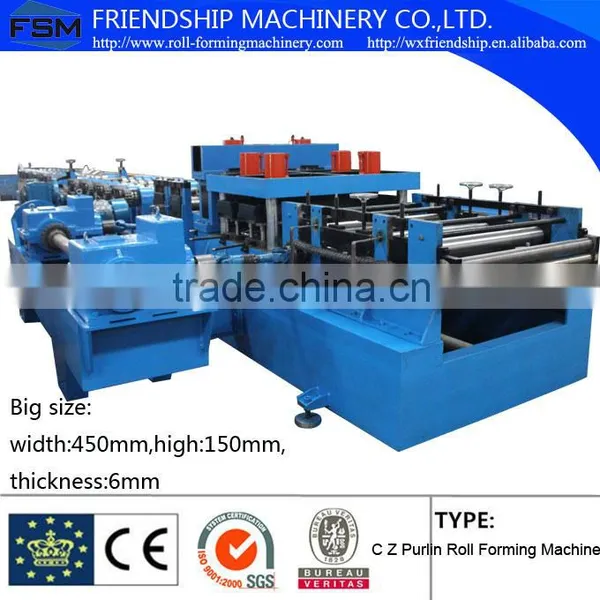

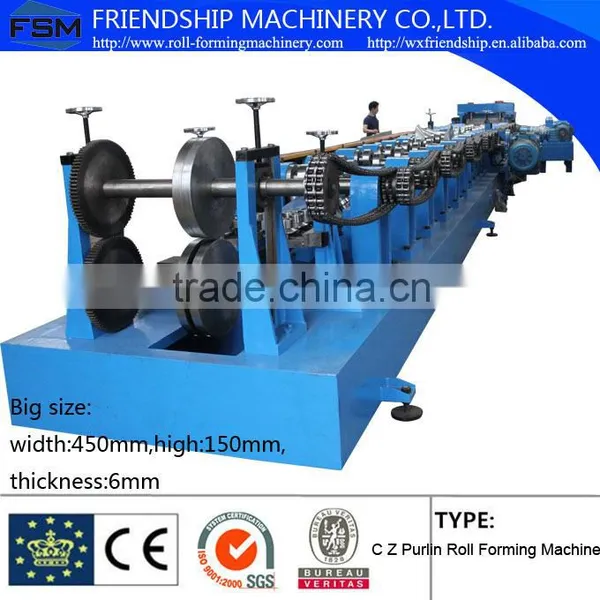

C Purlin Profile Roll Forming Machine
The characteristic and function of this machine
Gearbos Driven High Speed C Purlin Profile Roll Forming Machine
1.C purlin roll forming machine adopt new station to increase the firmness of the machine
2.The machine also adopt gearbox transmission to ensure machine working more stable
3.Machine use after-cutting to ensure quality of the cutting position of product very smooth
4.C purlin are widely used in steel structure building
Details of machine
Item | Description |
Material of roller : | GCr15,quenched |
Material of shaft : | 45#forge steel |
Material of punching mold : | Cr12 HRC 58-62 |
Material of cutting blade : | CR12with heat treatment |
Main power : | 15KW |
Hydraulic power : | 5.5KW |
Working speed : | 15m/min(not include cutting and punching) |
Forming stations : | 17 stations |
Control system : | PLC Panasonic |
Transmission : | By chain |
Automaticity : | Semi-Automatic/Automatic |
Main dimension(L,W,H) : | 11000mm*1400mm*1400mm |
Total weight : | 14000KG |
Gearbox Driven High speed C Purlin Profile Roll Forming Machine
Main components of the machine
NO. | Name | Unit | Qty |
1 | Roll Forming Main Machine | Set | 1 |
2 | Hydraulic/Manual decoiler | Set | 1 |
3 | PLC Control System | Set | 1 |
4 | Hydraulic Punching Device | Set | 1 |
5 | Hydraulic Cutting Device | Set | 1 |
6 | Hydraulic Station | Set | 1 |
7 | Manual Out Table | Set | 2 |
Some parts of machine
Name | Describe | |
Control panel (PLC Panasonic) | Computer used to control length and quantity,the machine will automatically cut to length and stop when required quantity is achieved. | |
Control panel:button-type switch and touch screen | ||
The program should be can set 5 different measure and quantity | ||
Tolerance of length: 3m+/- 1.5mm | ||
Voltage,Frequency,phase:415V,50HZ,3Phase | ||

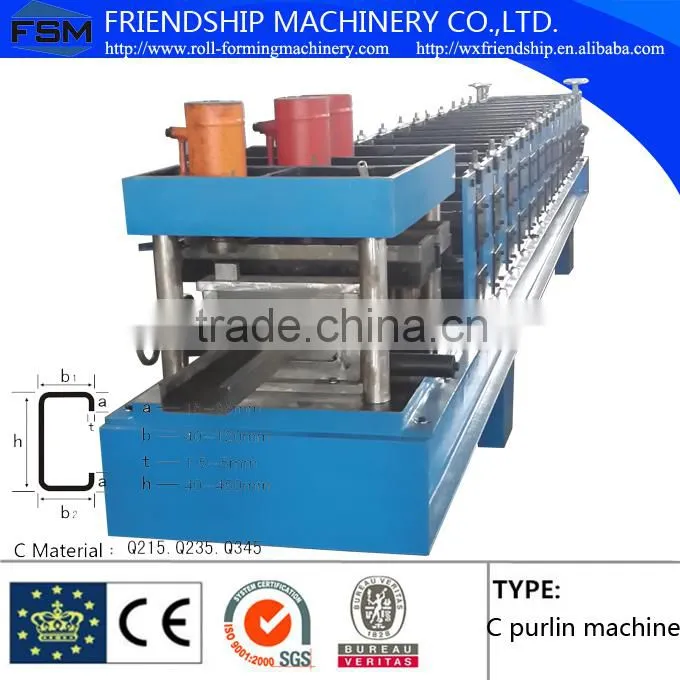

Punching and cutting device | Punching with hydraulic drive | |
This machine with two sets punching system | punching at end-wise controlled by PLC control system | |
punching at broad-wise adjusted by manual | ||
Hydraulic Cutting before forming: Cut the sheet before roll forming to required length | ||
Cutting motion: The main machine automatically doesn't stop and the continue punching and cutting . | ||

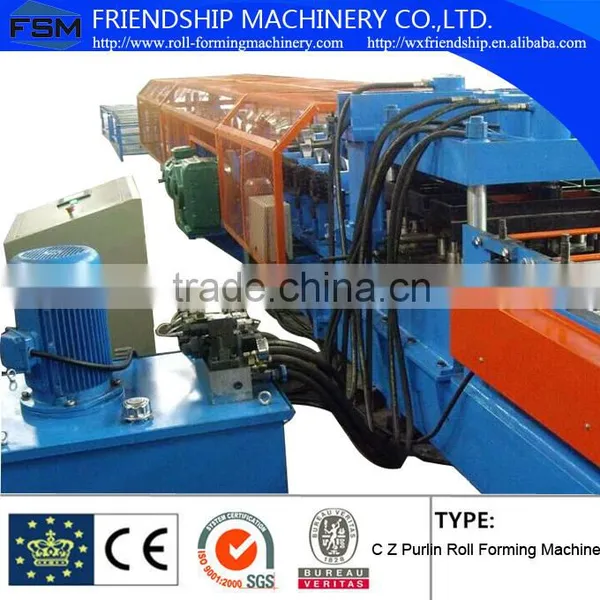

Hydraulic decoiler
| Hydraulic coiler car adopt motor advance (power:3KW, hydraulic up and down:12MPA) | |
Single head to put the coil hydraulic flow over device | ||
Coil spec:Φ508×1300mm | ||
Flow over range:Φ460-520mm | ||
Oil cylinder:Φ160×90mm | ||
Transmission:drive by hydraulic brake | ||
Load bearing:5T,10T,20T |
Drawings and parameter of C purlin
Gearbox Driven High speed C Purlin Profile Roll Forming Machine
a | 80~350 | |
b | 40~80 | |
c | 14~25 |
