Specifications
FOSIT new type pert ppr pipe extrusion line1.High quality assurance
2.PLC control
3.CE certificate
4.High automation

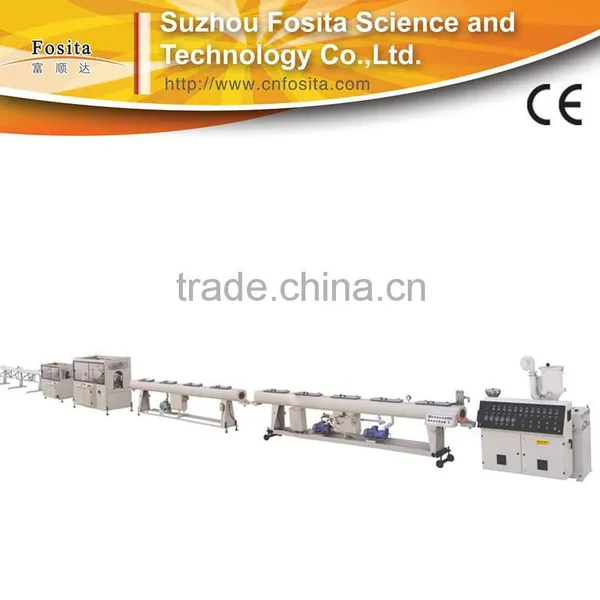

FOSIT new type pert ppr pipe extrusion line
Application and features:

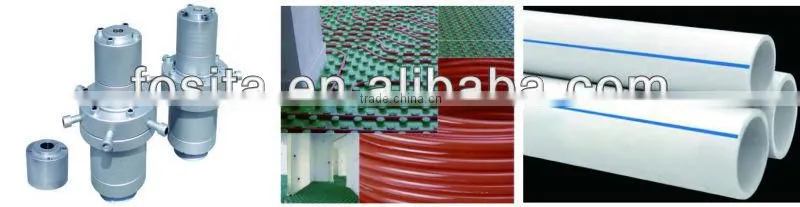

This line is mainly used for extruding PPR PERT etc pipe products. Equipped with co-extrusion machine head it can produce PPR fiber composite pipe.
1. The design of groove feeding barrel and barrier type screw can improve the efficiency of plasticization. The extruding capacity is high and melting temperature and pressure is low and save energy source.
2. The filtering type mould head are adopted, which guarantee the material is sheared overly and prevent the material from being degraded.

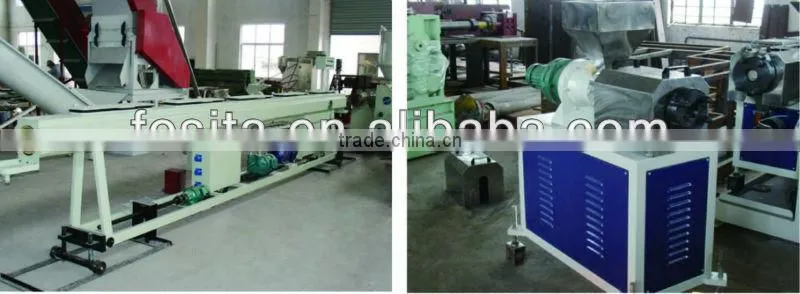

3.The production line adopts the high efficient single screw extruder designed by our company.It has the characters of high speed extrusion and high efficient plasticization.
4.Barrier pattern of double poler of PPR specialized spiral pole, opened dent of machine.
5.Equipped with twice diffluence new pattern mould which has the characters of low temperature and low pressure extrusion.
6.Water film calibrating sleeve is adopted,which can guarantee high speed production.
7.PLC control system is adopted to guarantee easy operation.
8.Equipped with co-extruder for color strips according to customers' requirements.
Technical Parameters:
model |
PP-R63 |
PP-R110 |
|
pipe range(mm) |
20-63 |
63-110 |
|
capacity(kg/h) |
90 |
150 |
|
center height(mm) |
1000 |
1000 |
|
|
single screw extruder |
extruder model |
SJ65 |
SJ90 |
screw diameter(mm) |
65 |
90 |
|
L/D |
30:1 32:1 |
28:1 30:132:1 |
|
Screw rotation speed(rmp) |
80 |
70 |
|
motor power(kw) |
30/37 |
45/55 |
|
heating power(kw) |
20 |
30 |
|
coolin blower power(kw) |
0.18 |
0.18 |
|
|
vacuum calibration tank |
length of calibration case(mm) |
6000 |
6000*2 |
vacuum degree(mpa) |
-0.08 |
-0.08 |
|
absorbing gas speed(m3/h) |
60 |
60*2 |
|
water pump power(kw) |
2*2.2 |
2*2.2 |
|
longitudinal moving motor power(kw) |
1.1 |
1.1 |
|
Spray cooling tank |
length of spraying tank(mm) |
4000-6000 |
6000-8000 |
water pump power(kw) |
2.2 |
2.2 |
|
|
haul off |
driving power(kw) |
3 |
5.5 |
max pull(N) |
7000 |
10000 |
|
effctive haul off length(mm) |
1200 |
1700 |
|
|
blade type cutter |
blade diameter(mm) |
350 |
350 |
driving power(kw) |
2.2 |
2.2 |
|
working air pressure(mpa) |
0.7-0.7 |
0.7-0.7 |
|
stacker |
length(mm) |
6000 |
6000 |

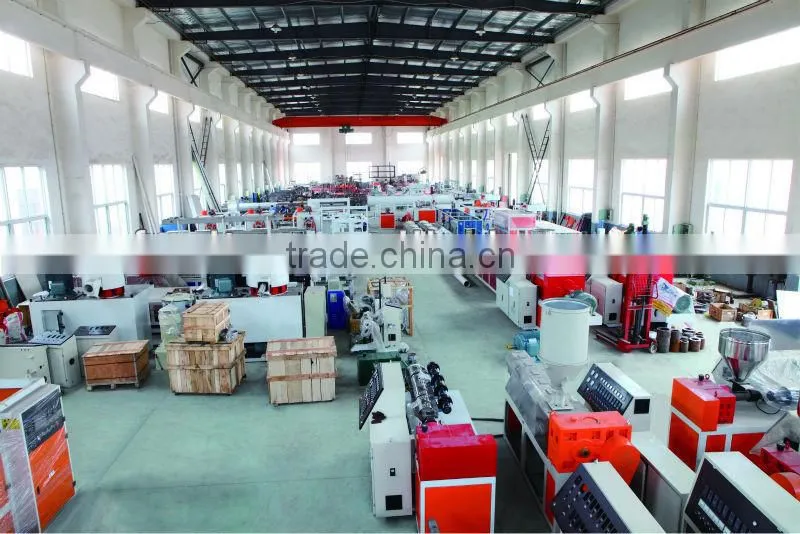

2. SUZHOU FOSITA Science and technology Co.Ltd is located in Zhangjiagang city Jiangsu Province, the economic booming area of Changjiang Delta.
3.Each year, there are many old and new customers come to our factory to have cooperation.
4. we have attended many trade fairs such as Chinaplas ,Arabplast and plastindia.We will attend CHINAPLAS AND ARABPLAST 2014 in April.
5. Our company have high quality of products and reasonable price and using our professional technique skills to do it.
