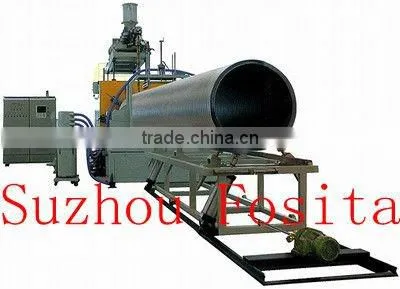

Large Caliber Hollow Wall Twine Pipe Production Line
We succeed in researching the large caliber hollow wall twine pipes production line on the foundation of abundantly absorbing and digesting European technology. And acquire many items of national patents. The pipes we produced base on high density polythene (PE) as main material. The rectangle pipes are extruded by the first extruder and then enter into the twine form machine, at the same time, the second extruder spray the rubber strips and then squeeze to reunite it, it's outside wall is neat and smooth. Specification is *400-*2200mm. According to different usage term, the hardness degree of ring is divided into four grades and the Max can reach 16KN/m2. It is suitable for the sour alkali liquid below 10%. This kind of pipes have many extremely excellent characteristics, such as, corrosion resistant light, easy to fix, long life time (50years), etc, it can substitute the pipes made of high energy consumption material(cement, cast iron, porcelain and ceramics, etc) it is widely used for sewer in superhighway, municipal construction, flats, athetic field, square, mine agricltrue, and bridges, etc.
Charatters:
1.The mian machine adopts high-efficiency single-screw steam extruder with strengthening plasticizing and mixing function to ensure low temperature and low pressure high speed extruding.
2.It adopts compound machine head,double machine accoprating feeding;screw rotation shaping compound technology to ensure high quality of the products.
3.It adopts auto temperature adjustment or PLC control.The operation is convenient,steady and erliable.
The main characteristics are as followings:
| Model | Pipe Diameter | Extruder | Total power of production line (kw) | Production Capacity (Kg) | Appearance size(M) | |||
| Mould | L/D | Main motor power | Heat power | |||||
| TT1200 | Φ400-1200 | TT90 | 31:01 | 132 | 45 | 120 | 450 | 24×12×4 |
| TT65 | 30:01 | 75 | 26 | |||||
| TT1500 | Φ800-1500 | TT90 | 34:01 | 132 | 45 | 300 | 600 | 24×16×5.8 |
| TT65 | 30:01 | 75 | 26 | |||||
| TT2200 | Φ1400-2200 | TT120 | 30:01 | 185 | 60 | 380 | 700 | 25×18×6.8 |
| TT90 | 34:01 | 132 | 45 | |||||
Suzhou Fosita Science and technology Co.Ltd is located in Zhangjiagang city Jiangsu Province, the economic booming area of Changjiang Delta.
Here is our CE certificate, we can provide you high quality production and excellent after-sale service.
Each year, there are many old and new customers come to our factory to have cooperation.
we have attended many trade fairs such as Chinaplas ,Arabplast,plastindia to show our product.
Our main products are PE/PPR/PVC pipe,WPC/PVC profile production lines,PET bottles and PP/PE films recycling line,Plastic wastes pelletizing lines, and all kinds of other auxiliary equipments,such as Mixer,Crusher,Pulverizer,Shredder,Water chiller and so on .Looking forward to cooperating with you!
Pre-sale services
1.Provide the free consultation of the machine
2.Provide the standard device and the flow chart
3.According to the clients’ special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging
