Specifications
1.IP65 led street lamp2.Solar & Wind Energy
3.Power:60,80,90,120,150,160,180W
4.CE & CQC Certification
5.Warranty:3 years
I) Key features of led street lamp DL0706 SERIES:
1) Streamline configuration, graceful appearance combine with the city street environment well;
2) Excellent self-cleaning function;
3) Die-cast aluminium alloy(ADC12) housing guarantees its high soundness;
4) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness within 40m distance;
5) Excellent heat radiation character reach a temperature raise below 23K;
6) Horizontal or vertical installation are avialable;
7) Original America-imported CREE LEDs with excellent luminous efficiency;
8) Superior tempered glass diffuser has a good light transmittance and invariant color;
9) Independent light source and electrical equipment case,long life power driver ensures above 50000 hours use-life and has short,open-circuit and over-heat protection.

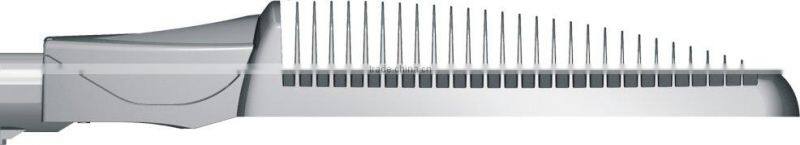

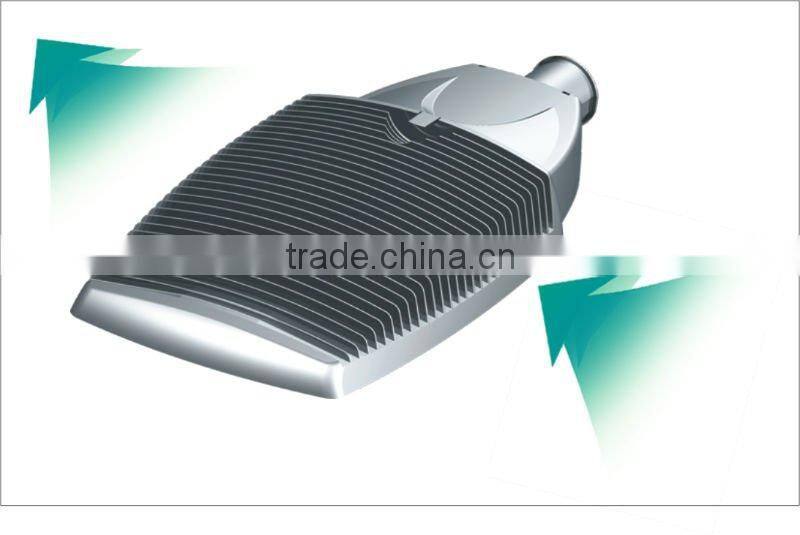

Special design for excellent heat dissipation and self-cleaning
II) Specification:
| Item No. | DL0706 | DL0706A | DL0706B | DL0706C | DL0706D | DL0706E | DL0706F | DL0706G | DL0706H | DL0706I | DL0706J |
| Light Source | CREE 120*1W | CREE 60*1W | CREE 80*1W | CREE 60*1.5W | CREE 80*1.5W | CREE 100*1.5W | CREE 120*1.5W | CREE 40*2W | CREE 60*2W | CREE 80*2W | CREE 90*2W |
| Led Power | 120W | 60W | 80W | 90W | 120W | 150W | 180W | 80W | 120W | 160W | 180W |
| System Consumption | 136W | 68W | 90W | 102W | 136W | 170W | 203W | 90W | 136W | 181W | 203W |
| Luminous Efficiency | >100lm/W | >100lm/W | >100lm/W | >95lm/W | >95lm/W | >95lm/W | >95lm/W | >80lm/W | >80lm/W | >80lm/W | >80lm/W |
| Initial Luminous Flux | >12000lm | >6800lm | >8000lm | >8550lm | >11400lm | >14250lm | >17100lm | >6400lm | >9600lm | >12800lm | >14400lm |
| Constant Luminous Flux | >10800lm | >5400lm | >7200lm | >7695lm | >10260lm | >12825lm | >15390lm | >5760lm | >8640lm | >11520lm | >12960lm |
| System Rresistance | 0.19°C/W | 0.30°C/W | 0.23°C/W | 0.23°C/W | 0.21°C/W | 0.17°C/W | 0.15°C/W | 0.26°C/W | 0.21°C/W | 0.17°C/W | 0.16°C/W |

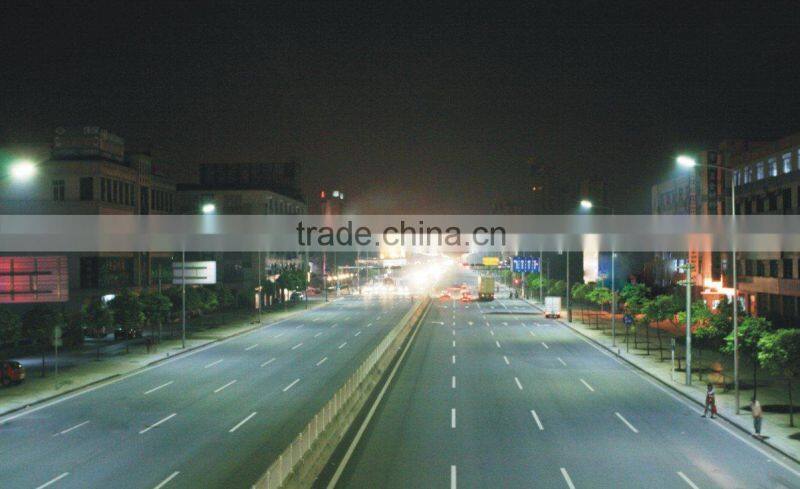

III) Application of Led Street Lamp
