Help Centerce Led Lamp
US$ 200 - 500
MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
CREE or Epistar
Input Voltage(V):
AC220V or AC110V
Lamp Power(W):
180
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HIGH QUALITY Led Tunnel Light 72wUS$ 200 - 500MOQ: 100 Pieces -
Mini Rgb Led Flood Light DL0221NegotiableMOQ: 1
-
IP65 Rectangular Guardrail Street Light LEDNegotiableMOQ: 1
-
CE Approved High Power 120w Led High Bay Light Professional Optical DesignUS$ 70 - 200MOQ: 1 Set
-
Cute Design Ip65 Led High Bay Light Fixture Rectangular Optical SpotUS$ 70 - 200MOQ: 1 Set
LED Light Source
CREE or Epistar
Input Voltage(V)
AC220V or AC110V
Lamp Power(W)
180
Lamp Luminous Flux(lm)
16200
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-30, 50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP65
Certification
CE, CQC
Warranty(Year)
3
Place of Origin
Guangdong, China
Brand Name
DELOS
Model Number
DL0608
Specifications
1.Intelligent control led tunnel light;2.Independent gear box;
3.72w,108w,144w,180w available;
4.IP65 led tunnel light.

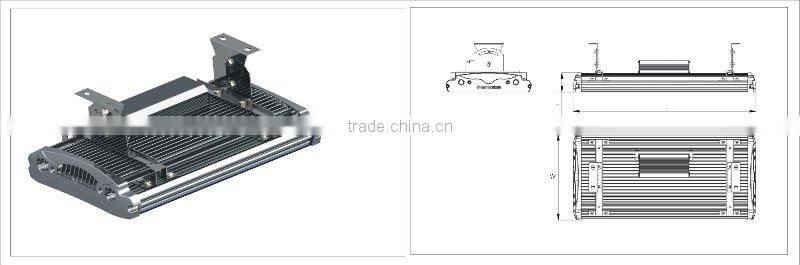

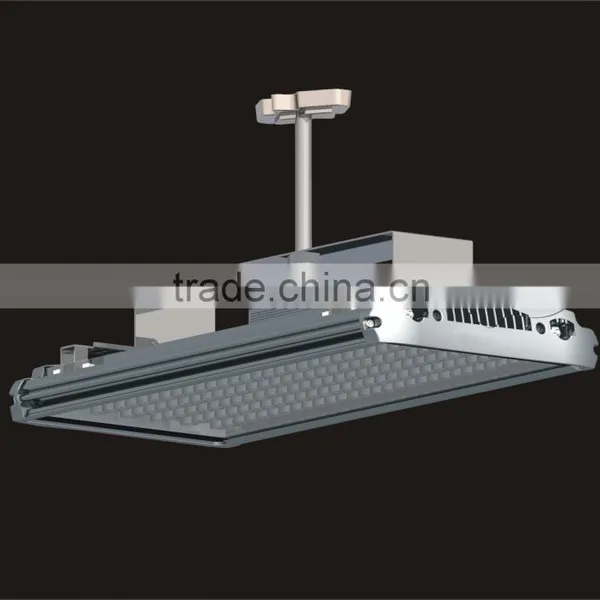

I Key features of led tunnel light DL1201 SERIES:
1) Streamline and self-clean configuration coping with LEDs perfectly; Intelligent control led tunnel light
2) Separate driving block for easy installation and maintenance;
3) Tree-section configuration for flexible power design;;
4) 23K temperature rise design concept and short fin design with air natural convection cooling principation level;
5) Unique optical cotrol system conforming to lighting standards:;
6) Reliable LED driver with shortprotection.open-circuit protection and over-heat protection.ensuring 50000hours lifre span..
Intelligent control led tunnel light
II Specification of led tunnel light DL1201 SERIES:
| Item No. | DL1201 | DL1201 A | DL1201 B | DL1201 C | DL1201 D | DL1201 E | DL1201 F | DL1201 G | DL1201 H | DL1201 I | DL1201 J | DL1201 K |
| Input Voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
| Frequency | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% |
| Light Source | CREE 72*1W | CREE 108*1W | CREE 144*1W | CREE 180*1W | CREE 48*1.5W | CREE 72*1.5W | CREE 96*1.5W | CREE120*1.5W | CREE 36*2W | CREE 54*2W | CREE 72*2W | CREE 90*2W |
| Led Power | 72W | 108W | 144W | 180W | 72W | 108W | 144W | 180W | 72W | 108W | 144W | 180W |
| System Consumption | 81W | 122W | 163W | 203W | 81W | 122W | 163W | 203W | 81W | 122W | 163W | 203W |
| LED Luminous Efficiency | >100lm/W | >100lm/W | >100lm/W | >100lm/W | >95lm/W | >95lm/W | >95lm/W | >95lm/W | >80lm/W | >80lm/W | >80lm/W | >80lm/W |
| Initial Luminous Flux | >7200lm | >10800lm | >14400lm | >18000lm | >6840lm | >10260lm | >13680lm | >17100lm | >5760lm | >8640lm | >11520lm | >14400lm |
| Constant Luminous Flux | >6480lm | >9720lm | >12960lm | >16200lm | >6156lm | >9234lm | >12312lm | >15390lm | >5184lm | >7776lm | >10386lm | >12960lm |
| Luminaire Efficiency | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% |
| System Rresistance | 0.32°C/W | 0.21°C/W | 0.16°C/W | 0.13°C/W | 0.32°C/W | 0.21°C/W | 0.16°C/W | 0.13°C/W | 0.32°C/W | 0.21°C/W | 0.16°C/W | 0.13°C/W |
| Dimension(mm) | 360*349*79 | 495*349*79 | 630*349*79 | 765*349*79 | 360*349*79 | 495*349*79 | 630*349*79 | 765*349*79 | 360*349*79 | 495*349*79 | 630*349*79 | 765*349*79 |
Intelligent control led tunnel light
