1.CREE Led Industrial Light2.Parking lot,warehouse,work shop
3.Independent gear and light source
4.Warranty:3years
5.36-72W
I) Key features of Led Industrial Light (DL0606):
1) Power supply and light source are seperated for easy installment and maintain;
2) 23K temperature raise controling on housing and gooves design to compliance with the natural convection to reach perfect heat radiation;
3) Unique optical systerm to distribute light well on tunnel lighting;
4) Superior tempered glass diffuser ensure high ligh transmission and invariant color;
5) Long life power driver ensures above 50000 hours use-life and has short ,open-circuit and over-heat protection;
6) Had adopted ISO9001:2000 Quality System Authorities.
CREE Led Industrial Light
II) Specification of Led Industrial Light :
| Item No. | DL0606 | DL0606A | DL0606B | DL0606C | DL0606D | DL0606E | DL0606F | DL0606G |
| Input Voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
| Frequency | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% |
| Light Source | CREE 36*1W | CREE 48*1W | CREE 60*1W | CREE 24*1.5W | CREE 36*1.5W | CREE 48*1.5W | CREE 24*2W | CREE 36*2W |
| Led Power | 36W | 48W | 60W | 36W | 54W | 72W | 48W | 72W |
| System Consumption | 41W | 52W | 68W | 41W | 61W | 81W | 54W | 81W |
| Luminous Efficiency | >100lm/W | >100lm/W | >100lm/W | >95lm/W | >95lm/W | >95lm/W | >80lm/W | >80lm/W |
| Initial Luminous Flux | >3600lm | >4800lm | >6000lm | >3420lm | >5130lm | >6840lm | >3840lm | >5760lm |
| Constant Luminous Flux | >3240lm | >4320lm | >5400lm | >3078lm | >4617lm | >6156lm | >3456lm | >5184lm |
| Luminaire Efficiency | >80% | >80% | >80% | >80% | >80% | >80% | >80% | >80% |
| System Rresistance | 0.61°C/W | 0.46°C/W | 0.37°C/W | 0.64°C/W | 0.43°C/W | 0.32°C/W | 0.52°C/W | 0.35°C/W |

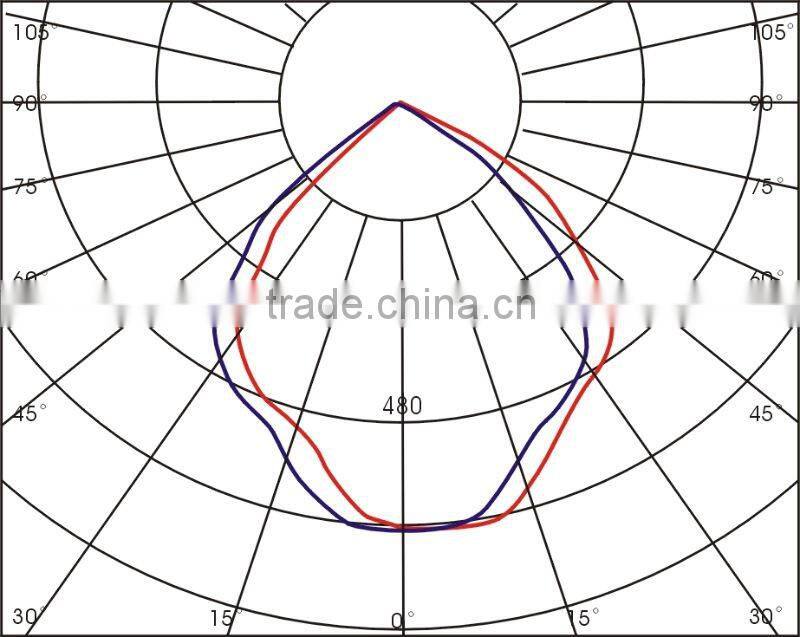

Light distribution curve:

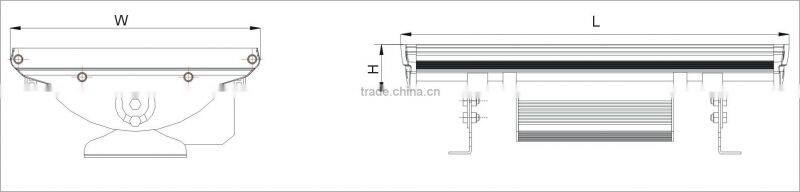

Dimension:L:326mm/464mm/602mm/740mm; W:246.5mm; H:121mm.
IV) Application of Led tunnel light (DL0606):
