Displacement flow meter and oval gear flowmeter
General description
Displacement flow meter and oval gear flow meter are instruments used for the continuous and intermittent measurement andcontrol of the pipe liquid flow ,which are typical of Volumetric flowmeter,feature large flowrange ,low pressure loss, large viscosity range ,easy installation, high accuracy and can measure high temperature, high viscosity liquids with easy calibration .the meters are widely used for the flow measurement in the field of petroleum, chemical,chemical fiber,traffic,food industries and commerce,medical and sanitary departments.
Products classification
Model |
LC—Acast iron |
LC—QACast aluminum gear type |
LC—E cast steel |
Pressure MPa |
1.6 |
2.5,4.0,6.3 |
|
Flow range m3/h | |||
The viscosity of liquid mPa.s | |||
Diameter (mm) |
0.6—2 |
2—8 |
8—200 |
10 |
|
0.08—0.4 |
0.04—0.4 |
15 |
|
0.3—1.5 |
0.15—1.5 |
20 |
0.75—3 |
0.4—3 |
0.3—3 |
25 |
1.5—6 |
0.8—6 |
0.6—6 |
40 |
3—15 |
2—15 |
1.5—15 |
50 |
4.8—24 |
3—24 |
2.4—24 |
65 |
8—40 |
5—40 |
4—40 |
80 |
12—60 |
8—60 |
6—60 |
100 |
20—100 |
13—100 |
10—100 |
150 |
38—190 |
24—190 |
19—190 |
200 |
68—340 |
45—340 |
34—340 |

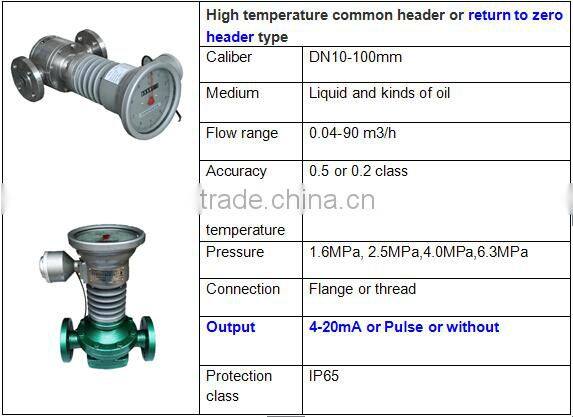

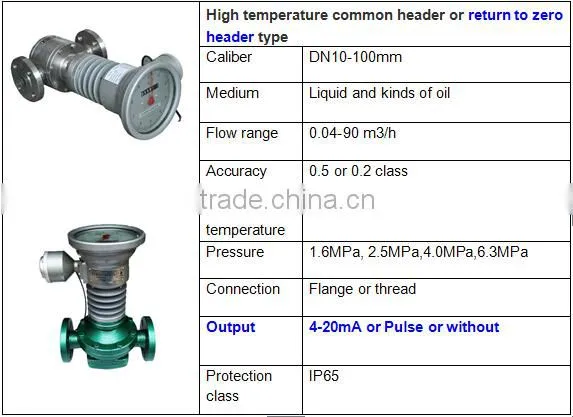

Cast iron, cast steel high temperature oval gear flow meter
Type |
LC—TAcast iron temperature |
LC—TEcast steel temperature |
||
pressureMPa |
1.6 |
6.3 |
||
Temperature range℃ |
+100~+160 |
|||
Accuracy |
0.5 0.2 |
|||
Flow range m3/h | ||||
|
The viscosity of liquid mPa.s |
|||
Diameter (mm) |
0.8—2 |
2—8 |
8—200 |
|
10 |
|
0.08—0.4 |
0.04 |
|
15 |
0.45—1.35 |
0.36—1.35 |
0.18—1.35 |
|
20 |
0.9—2.7 |
0.48—2.7 |
0.36—2.7 |
|
25 |
1.8—5.4 |
0.96—5.4 |
0.72—5.4 |
|
40 |
3.6—13.5 |
2.4—13.5 |
1.8—13.5 |
|
50 |
5.8—21.6 |
3.6—21.6 |
2.9—21.6 |
|
65 |
9.6—36 |
6—36 |
4.8—36 |
|
80 |
15—54 |
9.6—54 |
7.2—54 |
|
100 |
24—90 |
22—90 |
12—90 |
|
Cast iron, cast steel high viscosity oval gear flow meter
Type |
LC—NAcast iron high viscosity |
LC—NE cast steel high viscosity |
Pressure MPa |
1.6 |
6.4 |
Temperature range℃ |
-10—+80 +100—+180 |
|
Accuracy |
0.5 0.2 |
|
Flow range m3/h | ||
The viscosity of liquid mPa.s | ||
Diameter (mm) |
200—2000 |
|
10 |
0.02—0.2 |
|
15 |
0.075—0.75 |
|
20 |
0.15—1.5 |
|
25 |
0.3—3 |
|
40 |
0.75—7.5 |
|
50 |
1.2—12 |
|
80 |
3—30 |
|
100 |
5—50 |
|
150 |
9.5—95 |
|
200 |
17.4—174 |
|

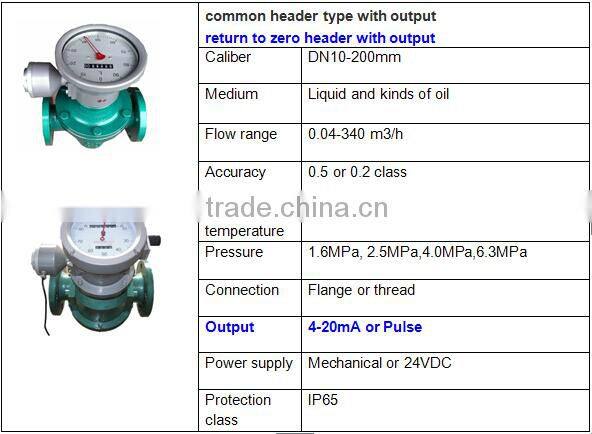

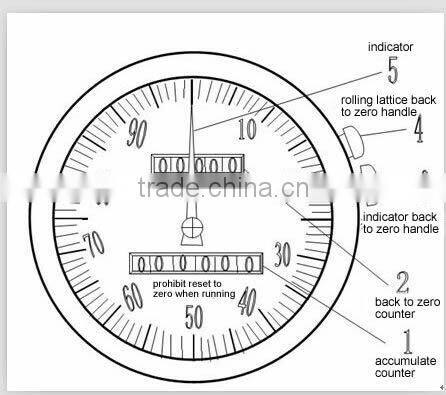

Return to zero header
Order sheet
|
Diameter(mm)
|
|
DN10~200 |
Accuracy |
U |
±0.5 |
O |
±0.2 |
|
|
Temperature and pressure
|
N |
<60℃ |
H |
<200℃ |
|
|
Pressure |
1.6 |
1.6Mpa |
2.5 |
2.5Mpa |
|
|
Material
|
A |
Cast iron |
E |
Cast steel |
|
B |
304Stainless steel |
|
Meter head |
1 |

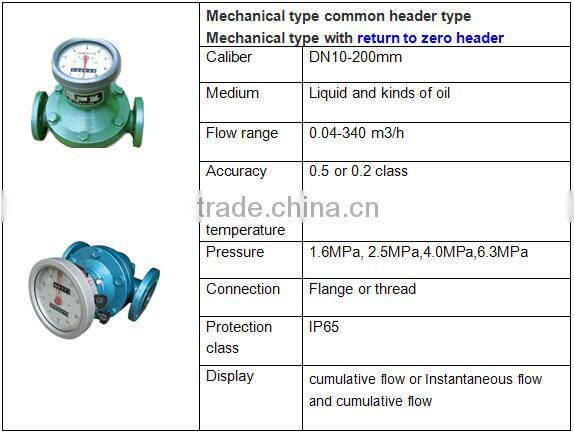

Common head |
2 |
Zero resettable head |
|
3 |

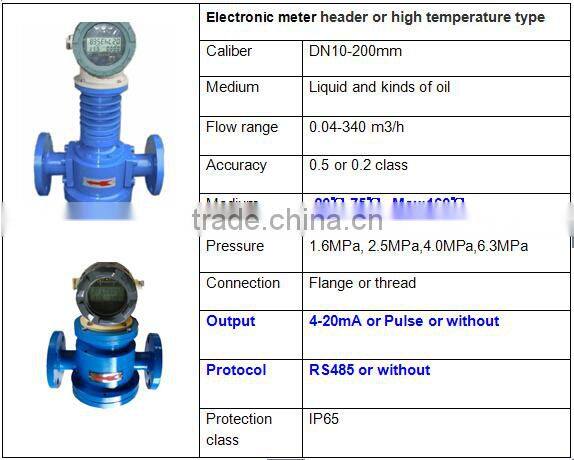

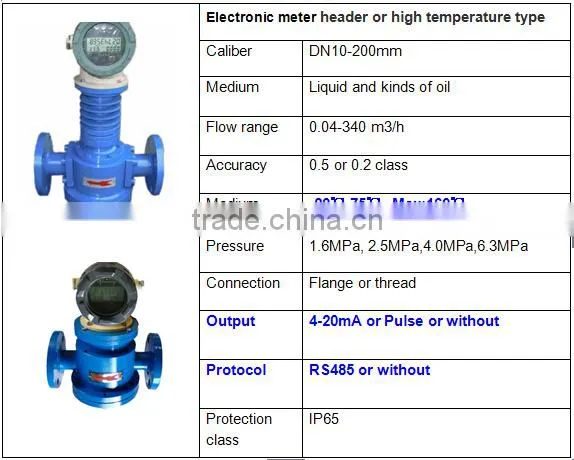

Electronic meter head |
|
Flange connection |
|
JB ,DIN,ASME,JIS... |
Communication protocol |
R |
RS485 |
|
Signal Output
|
P |
Pulse output |
M |
4-20mA output |
|
|
Power supply
|
W |
Without |
S |
Buttery /24V(ONLY Electronic meter head) |
