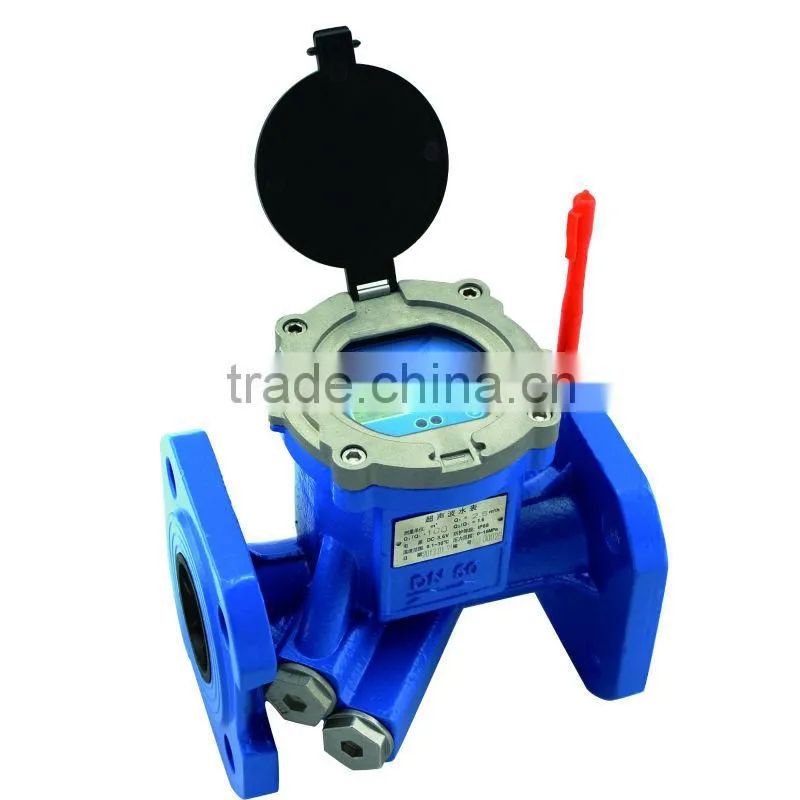

Low cost ultrasonic water meters with international standard

Name: Low cost ultrasonic water meters with international standard
Brand: AUTO
Price: USD $200 - 300 / Unit

FOB Price

USD $200 - $300 / Unit

1 Unit(Min.Order)

Supply Ability 1500 Unit / Units per Month
Port Yantai
Payment Terms:T/T D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shandong, China

Brand Name:

AUTO

Model Number:

ATWF

Packaging Details

Carton

Product Description

Low cost ultrasonic water meters with international standard

Feature:

l Double beam ultrasonic sensors for high accuracy and reliable operation

l Multi line 9 digital LCD display accumulative flow and 4 digital for instantaneous flow

l Less than 0.01 m/s starting velocity

l Installation with no need of straight pipe section, suitable for more occasions installation

l High reliability design, no moving parts

l Two channel isolated pulse output,pulse equivalent and output pulse can be arbitrary customed

l Two-wired system 4-20mA output optional

l Built-in Lithium battery for 6 years life expectancy

l Automatic power saving function under the empty pipe or long-term fluid stationary state

l Resin vacuum sealed IP68 for long life and high performance

l Date cumulative record

l Wireless power supply function optional

l Standard RS485 interface

l Infrared communication interface,support CJ-188 communication

l Support MODBUS,M-BUS ,HART communication protocol

l TTL levels pulse output and USART interface,convenient to connect

the low power consumption equipment

l Cast steel shell meet international city water standard

l Stainless steel 304 shell optional

l Software online upgrade function

l With the two channel PT1000 temperature transducer,

which can realize the heat measurement

l Various of Units selected, including Cubic meter, USA gallon, Cubic feet and Liter

Technical parameter:

Item	Specification
Instrument Classification	Class Ⅱ
Measurement Range	Water, Sewage, Seawater(Other liquid need to customized),liquid should be full of the pipeline
Medium Temperature	0.1-30°C
Working Environment	Temperature:-10~45°C;Humidity≤100%(RH)
Working Pressure	1.6MPa/2.5Mpa optional
Structural Form	Integrated
The sensitivity of upstream flow field	U0
The sensitivity of downstream flow field	D0
Climatic and mechanical environment class	C class
Electromagnetic compatibility class	E2 class
Communication Interface	RS485/USART/Infrared
Output Signal	Dual open pulse OCT output/TTL pulse output/4-20mA output
Power supply	Built-in Lithium battery(3.6V)/ External DC 5V/ Two-wired system4-20mA/ Wireless power supply
Protection Class	IP68
Digital Display	Multi line 9 digital LCD display accumulative flow, 4 digital display for instantaneous flow, state prompt and units
Data Storage	EEPROM/FLASH
Measurement Cycle	Measuring:1 times/second(2~4 times/second optional); Verification:4 times/second
Power Consumption	<2.7AH/Year

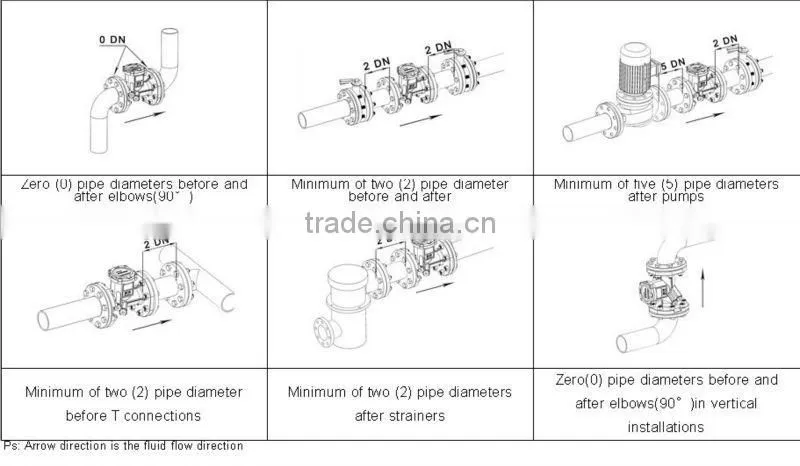

Choose installation point:

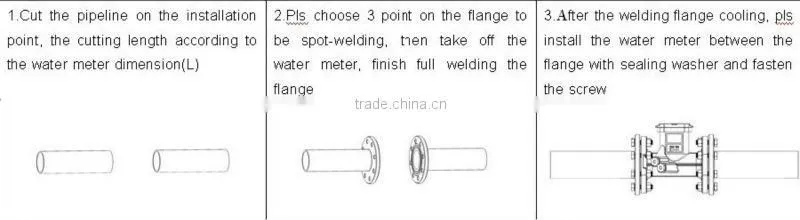

Installation Method:

Straight Pipe installation:

Contact me:

Company Profile

Yantai AUTO Instrument Precision Casting Co., Ltd.

Yantai Auto Instrument Making Company Limited is located in Yantai, a seaside resort in Shandong peninsula with charming natural beauty and convenient transportation. The company is specialized in developing, producing and marketing the process control instruments, possessing the complete ability of automatic system engineering.
We mainly produce differential pressure transmitter, pressure transmitter, capacitive pressure sensor, RF admittance controller, tuning fork, level meter, winding pressure transmitter, magnetostrictive level gauge etc.. Which are widely used in the industries of electrical power, petroleum, metallurgy, medicine, food, brewing, textile, and build material etc.. The performance of the company are quickly increased through stable development for more than ten years since 1994.
We adopt firstly in Shandong of the certification of ISO9001:2000 for the instrument company by Premier company in July,2001, and we build the quality management system which comply with the international approval.
Our company is authorized to be the China Marketing General Agent of ultrasonic range finder by the Bohr company from Germany.
We build up the casting department. And we mainly apply the silica sol precision-casting technology to produce many kinds of cast steel such as carbon steel, stainless steel, alloy steel etc. for better service of our instrument products.
We meet the challenge of the using requirement of spot instruments relying on abundant technology strength, advanced equipment, super technology,strictly scientific quality management, continuously applying the advanced international technology and improving the products. And we guarantee the high quality and well-deserved reputation of the AUTO products.
The director of the company is willing to create a promising picture with the people of vision. Faithfully invite the friends from the foreign and domestic countries to the heaven on earth for business discuss.

Contact Us

Yantai AUTO Instrument Precision Casting Co., Ltd.: Contact nameHong Shi; Phone86-535-2162110; AddressNo.3 Hengshan Road, Economy and Technology Development Zone, Yantai, China Yantai,Shandong
