Specifications
1.High Measurement accuracy2.Reliability, low maintenance rate.
3.For a variety of media
4.With the core processor

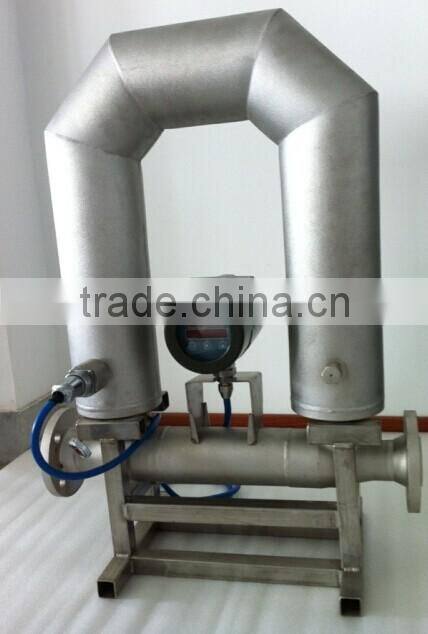

Coriolis Mass Flow Meter
Technical Parameters
Dimension and Measuring Range
Specification |
DN (mm) |
Flow range(kg/h) |
MTCMF-006 |
6 |
0~900~1000
|
MTCMF-010 |
10 |
0~1800~2100
|
MTCMF-015 |
15 |
0~3600~4500
|
MTCMF-020 |
20 |
0~6000~7200
|
MTCMF-025 |
25 |
0~9600~12000
|
MTCMF-032 |
32 |
0~18000~21000
|
MTCMF-040 |
40 |
0~30000~36000
|
MTCMF-050 |
50 |
0~48000~60000
|
MTCMF-080 |
80 |
0~150000~180000
|
MTCMF-100 |
100 |
0~240000~280000
|
MTCMF-150 |
150 |
0~480000~600000
|
MTCMF-200 |
200 |
0~900000~1200000
|
Accuracy(Liquid) :( With FT51, FT52 Transmitter):
Accuracy of fluid measurement: ±0.2~0.5%
Repeatability: ±0.1~0.25%
Density(Liquid) measuring range and accuracy (With FT51, FT52 series transmitter)
Range: 0.5~2g/cm3 Accuracy: ±0.002g/cm3
Temperature measuring range and accuracy (With FT51, FT52 transmitter):
Temperature measuring range: -100~300℃ Accuracy: ±1℃
Working temperature of measured medium: -50℃~200℃
Ambient temperature: -40℃~70℃
Material : The measuring tube 316L Housing: 304
Working pressure: 0~4.0MPa
Explosion-proof level : Exd (ia) ⅡC T6Gb
Installation Recommendations
In order to ensure the reliability of the measurement, the ways of installation should consider the following
factors;
The meter shell should be installed downward when measuring liquid flow (Figure2.1), so that air
cannot get trapped inside the tubes.
The meter shell should be installed upward when measuring gas flow (Figure2.2), so that liquid cannot get trapped inside the tubes.
The meter shell should be installed sideward when the medium is turbid liquid (Figure2.3).
The flow direction of medium goes from the bottom up through the sensor.
2.3.3 Dimension and Installation
Split-type
Installation and Dimension Table
Specification |
A(flange space) |
B(overall height) |
C(width) |
D(shell thickness) |
mm |
mm |
mm |
mm |
|
MTCMF010 |
200 |
395 |
350 |
58 |
MTCMF015 |
250 |
500 |
500 |
89 |
MTCMF020 |
250 |
500 |
500 |
89 |
MTCMF025 |
550 |
560 |
445 |
108 |
MTCMF032 |
550 |
570 |
445 |
108 |
MTCMF040 |
600 |
840 |
500 |
140 |
MTCMF050 |
600 |
840 |
500 |
140 |
MTCMF080 |
850 |
1150 |
780 |
220 |
MTCMF100 |
1050 |
1200 |
840 |
295 |
MTCMF150 |
1200 |
1350 |
950 |
320 |
MTCMF200 |
1200 |
1380 |
1000 |
400 |
