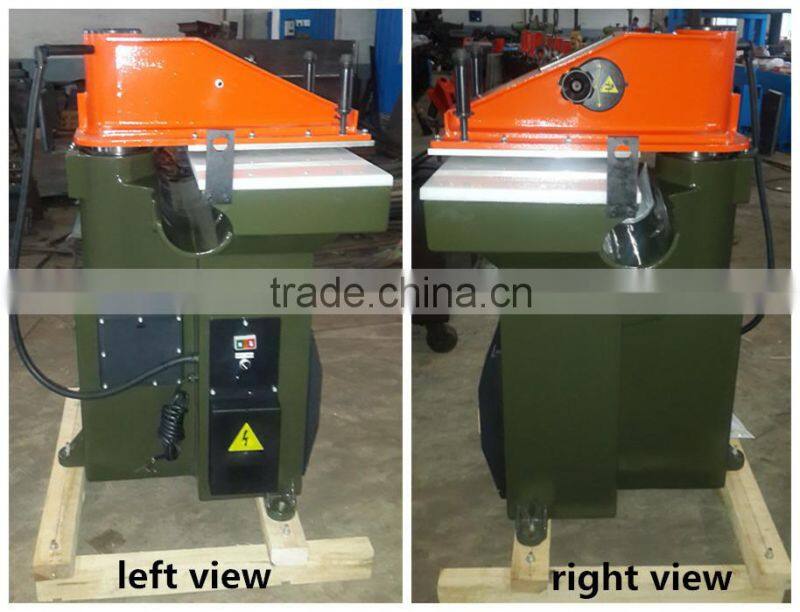

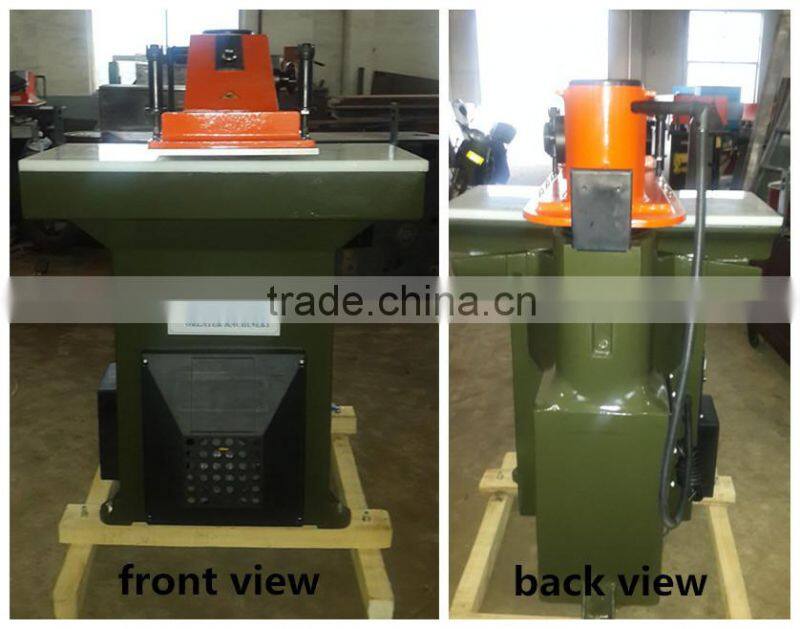

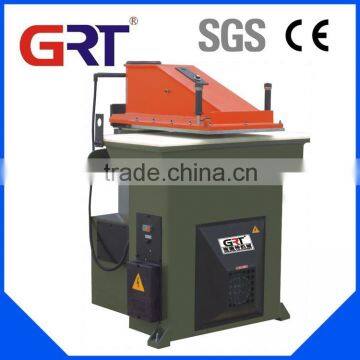

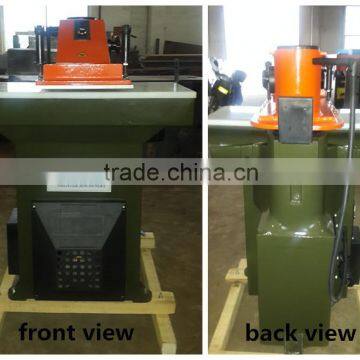

HYDRAULIC SWING ARM CUTTING PRESS
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of die cutter is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of die cutters of different sizes, another
type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.

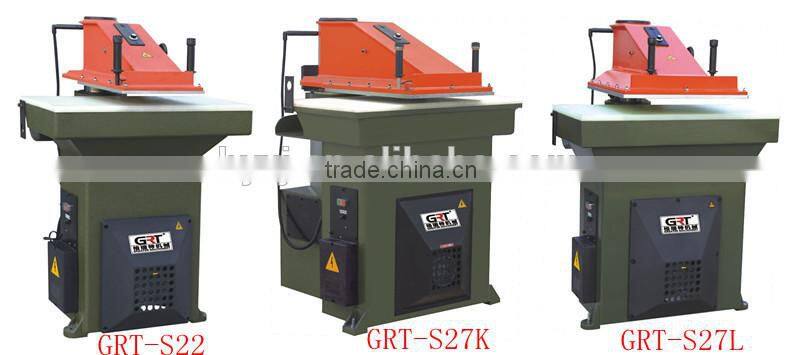

Model |
GRT-S22 |
GRT-S27 |
GRT-S27K |
GRT-S27L |
Maximum cutting force |
22T |
27T |
27T |
27T |
Table area |
900×430mm |
1000×500mm |
1000×500mm |
1000×500mm |
Swing arm width |
370mm |
370mm |
500mm |
610mm |
Cutting stroke |
90mm |
90mm |
90mm |
90mm |
Motor power |
1.1KW |
1.5KW |
1.5KW |
1.5KW |
Electric Supply Voltage |
3x440/415/400/380 /220V, 50/60 Hz |
|||
Single phase 240V/220V, 50/60 Hz | ||||
Packing size |
1050×1000×1500mm |
1150×1200×1500mm |
1150×1200×1500mm |
1150×1200×1500mm |
N.W(with oil) |
690kg |
980Kg |
1010kg |
1030kg |
G.W |
700kg |
1000Kg |
1030kg |
1050kg |
REMARK:The machine will include the cutting board,hydraulic oil,tools and spare parts.
Machine configuration | |
Pump and Valve |
made in TAIWAN |
Sealing ring |
made in ITALY |
Press switch |
made in ITALY |
Cutting switch |
made in GERMANY |
please add me wechat: grtmachinery
