Portable Laser Cutter Machine 150w / Co2 Acrylic Laser Machine LM-1318
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Large Size Laser Cutter Machine Co2 Price LM-1325
-
Large Size Co2 Laser Cutter Acrylic Plexiglass PMMA LM-1325
-
High Speed 80w Acrylic Laser Cutter Machine 1390 LM-1390
-
150w Laser Machine for Cutting Acrylic / Co2 Plexiglass Laser Cutter LM-1490
-
1325 Flat Bed Laser Cutting Machine for Plexiglass Acrylic Sheet LM-1325
-
1390 100w Plexiglass Acrylic Co2 Laser Cutter Machine LM-1390
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, Other, Acrylic, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, cloth, foam, PVC, fiberglass | Cutting Thickness | 30mm | |
| Cutting Area | 1300mm x 1800mm | Cutting Speed | 50000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | lasercut5.3 or RDworks | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | LM | |
| Model Number | LM-1318 | Certification | CE, SGS, Other, CE, SGS, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
LM-1318 portable laser cutter machine 150w / co2 acrylic laser machine
>> Technical Parameters >>
Machine model: | LM-1318 portable laser cutter machine 150w |
Laser type: | Sealed CO2 laser tube, wavelength: 10.64μm |
Laser power: | 80W / 100W / 150W / 180W |
Cooling mode: | Circulating water cooling |
Laser power control: | 0-100% software control |
Control system: | DSP offline control system |
Max. engraving speed: | 60000mm/min |
Max cutting speed: | 50000mm/min |
Repetition accuracy: | 0.01mm |
Min. letter: | Chinese: 1.5mm; English: 1mm |
Table size: | 1300x1800mm |
Working voltage: | 110V/220V,50~60Hz |
Working conditions: | temperature: 0-45°C, humidity: 5%-95% |
Control software language: | English / Chinese |
File formats: | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc |
>> Machine Features >>
1. CO2 Glass sealed laser tube
China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.
2. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. DSP control system, Leetro Controller
Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Tiwan Linear guide rails
8. Lasercut 5.3 software, user’s manual
9. Tool box
>> Equipment coming together with machine >>
1. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability
2. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.
3. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.
>> Options >>
1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.
2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
5. Rotary
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
>> Warranty >>
1. One year for the machine, except for consumables.
2. Laser tube warranty:
40W: 3 months
60W: 3 months
80W: 6 months;
100W, 150W, 180W: 8 months;
3. Lens and mirrors are not within warranty scope.
>> Applicable Materials >>
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.
Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

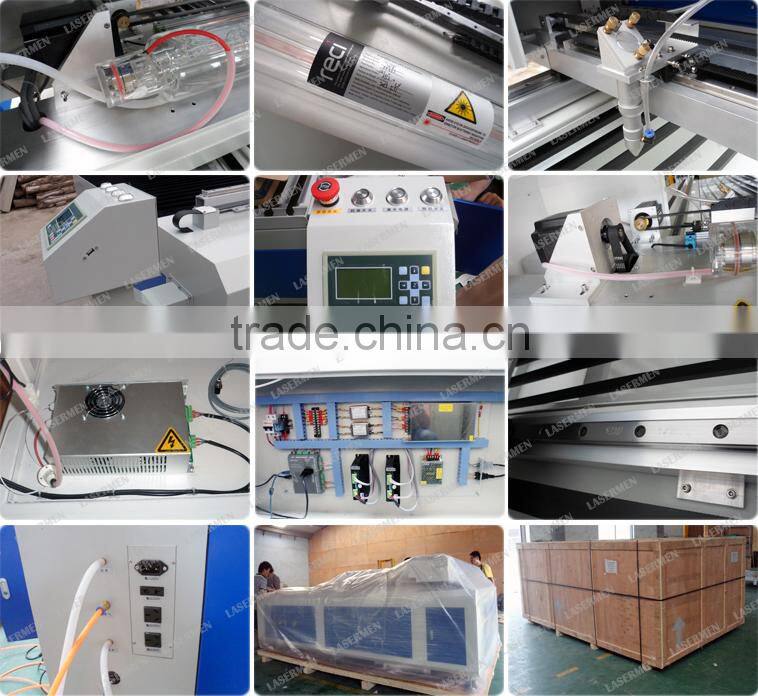

>> Machine Details >>
>> Sample Pictures >>
>> About Us >>
Jinan LaserMen CNC Equipment Co.,Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of laser engraving, cutting, marking machines.
We possess high efficient cooperated technology and service team, high coordinated producing and service network. Our machines are CE, FDA certified. Our company strictly comply with ISO9001:2008 international quality management system.
Our company will continue its efforts to make greater achievements.
>> Contact Information >>
We are sincerely looking for agents and distributors all over the world!!!
Contact Us
- Jinan Lasermen CNC Equipment Co., Ltd.
- Contact nameGrace Guo Chat Now
- Phone86-531-58966305
- AddressNo. 159-26, Gongye North Road, Licheng Dist.
