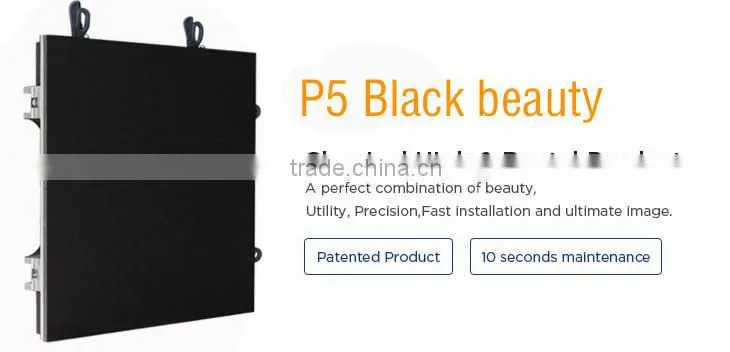

P5 Black Beauty LED screen
Specification:
| Unit Module | Item | Parameter |
| Model Number | P5 Black beauty LED display | |

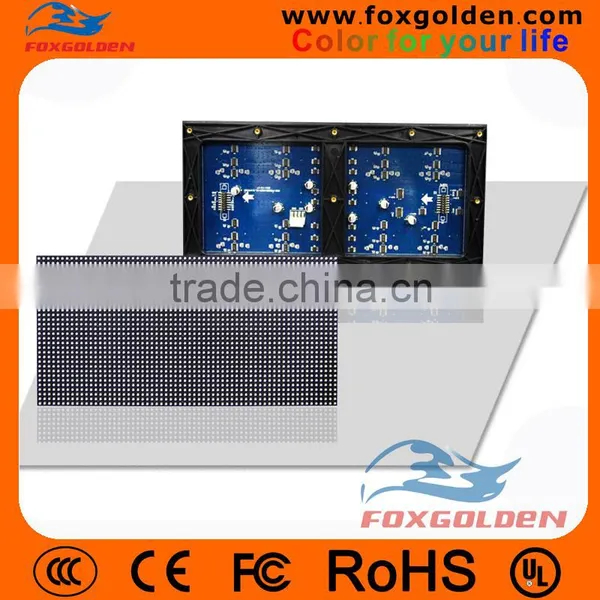

| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixel configuration | 40000/Sqa | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power consumption | 20W | |
| Module thickness | 2CM | |
| Weight | 0.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16 scan | |
| Port type | HUB75B | |
| Brightness of white balance | ≥2000cd/Sqm | |

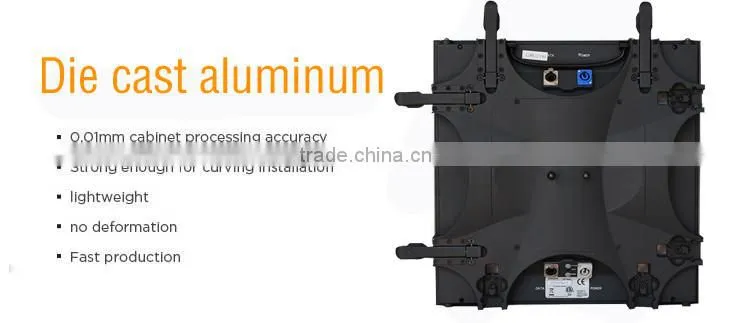

| LED Cabinet | Dimension | 640mm*640mm |
| Quantity of Module | 8 | |
| Power supply | 5V/40A 5V/60A | |
| Pixel per cabinet | 128*128 | |
| Best viewing distance | 2M~5M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ working:-20℃~+50℃ |
|
| Operation humidity | 10%-95% | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 220W/H | |
| Max.Power consumption | ≤500W/sqm | |
| Current | ≤15mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | XP/WIN7/8 | |
| Control method | Synchronization | |

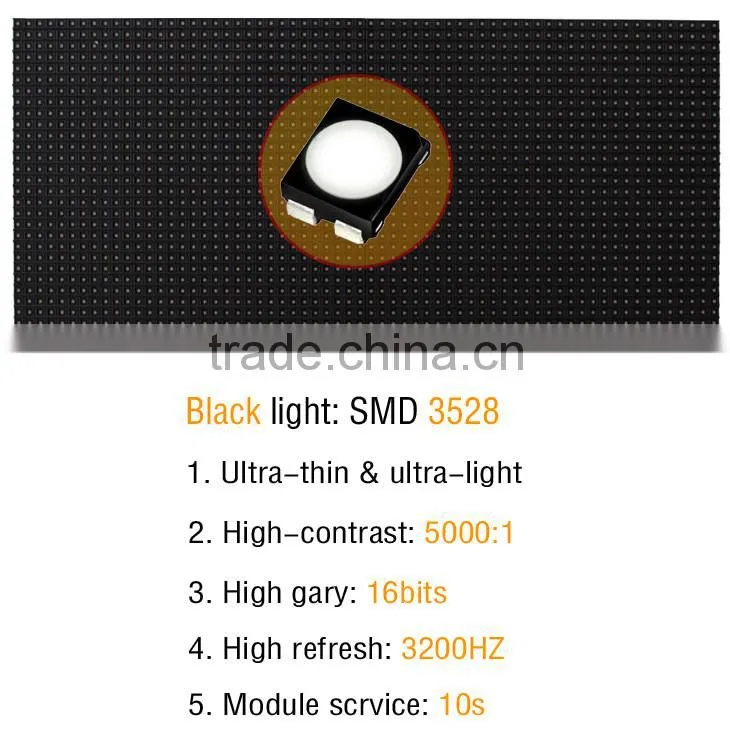

| Main technical parameter | LAMP | black light SMD 3528 |
| Driving device | MBI5020 | |
| Refresh frequency | ≥3200HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch |
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support. problem |
On Oct 10thfd, 2015, FOXGOLDEN begin to went into capital market and step into official listed company, stock code: 666153.
Thanks for 12-year customer support on FOXGOLDEN always.
Thanks for 12-year meterial supplier support on FOXGOLDEN always.
Thanks for 12-year FOXGOLDEN family constant effort and hard work.
We have 12-year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.
As said by Jack Ma, the president of Alibaba group, it is the time of 3 wins. The meaning of FOXGOLDEN official website is WIN-WIN-WIN. WIN FOR CUSTOMERS; WIN FOR SUPPLIERS; WIN FOR FAMILIES. COM: COMING.
So means win-win-win, FOXGOLDEN has been coming to do it.
We are a young team, whose average age is 26.6 years old. Thanks, ercourage, and effort always accompany us. Looking back to yesterday. We live Today, and will move towards better promising Tomorrow.
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
---------------------------------
Email: info @foxgolden.com
Whats App: +86 15118019850
Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
