Function and features:
l Standard motorized body left-right rectification ,right-left 200mm.

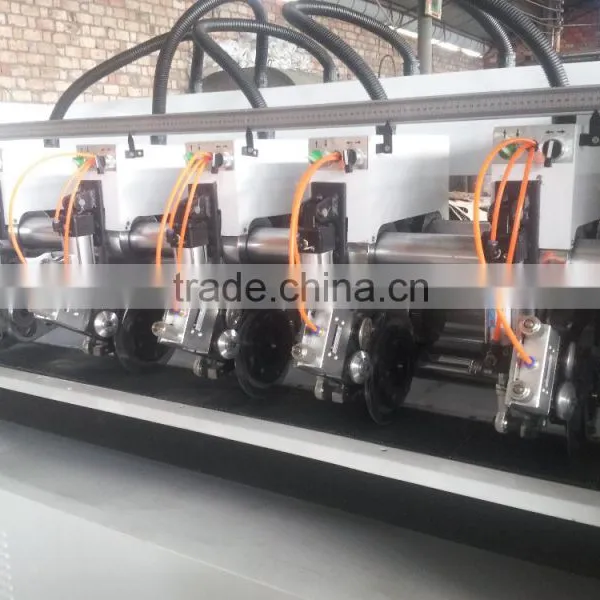

l Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr

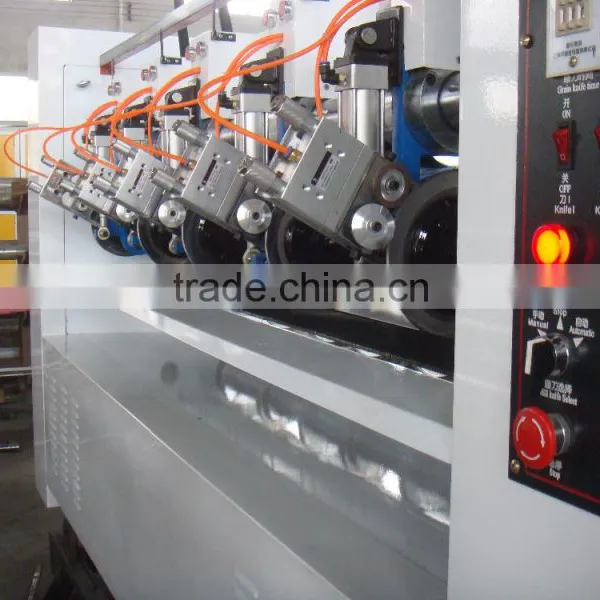

l Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.
l Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry, and easy to bend the carton sheet.
l Adopt China famous brand or imported electric element,dependable performance.
Technical Parameters:
TYPE |
SMBD-HY-1800 |
SMBD-HY-2000 |
SMBD-HY-2200 |
Effective width |
1700mm |
1900mm |
2100mm |
Speed |
80m/min |
80m/min |
80m/min |
Min. Slitter-spacing |
120mm |
120mm |
120mm |
Min. Score-spacing |
30mm |
30mm |
30mm |
Body rectification range |
200mm |
200mm |
200mm |
Dimensions L x W x H (mm) |
2440*900*1620 |
2640*900*1620 |
2840*900*1620 |
l Blade electric adjusted left-right moving slitter scorer.
l Double guide optical axis, stable operation; inlay O-ring seal, clean and dust-proof.
l Self-researched nut rotation technique with the automatic locking function, simple and useful.
The company has absolute guarantee product quality,pay attention to credibility.
As far as possible to meet customer requirements
Look forward to your reply.
