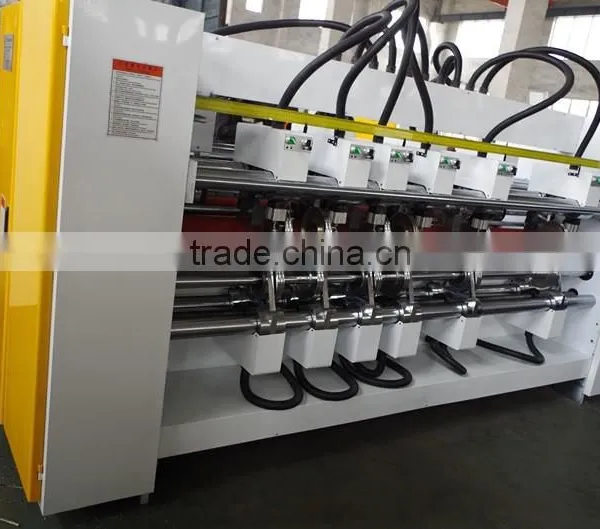

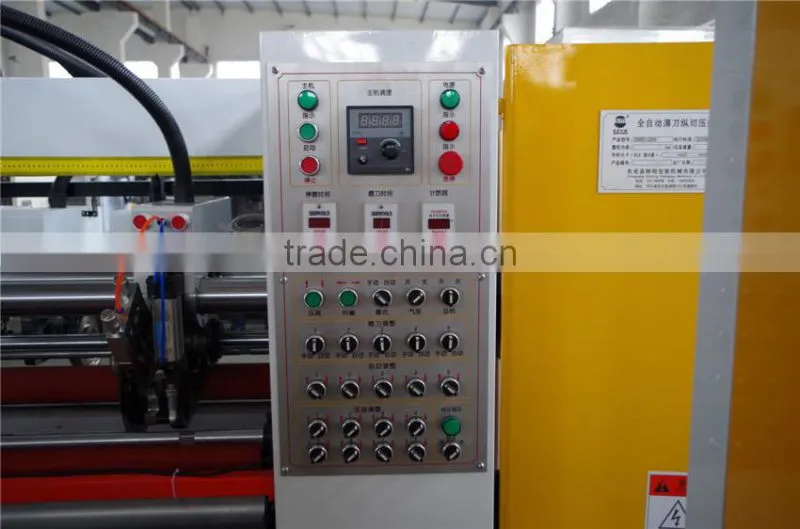

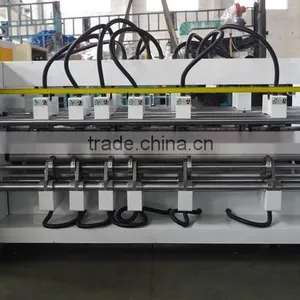

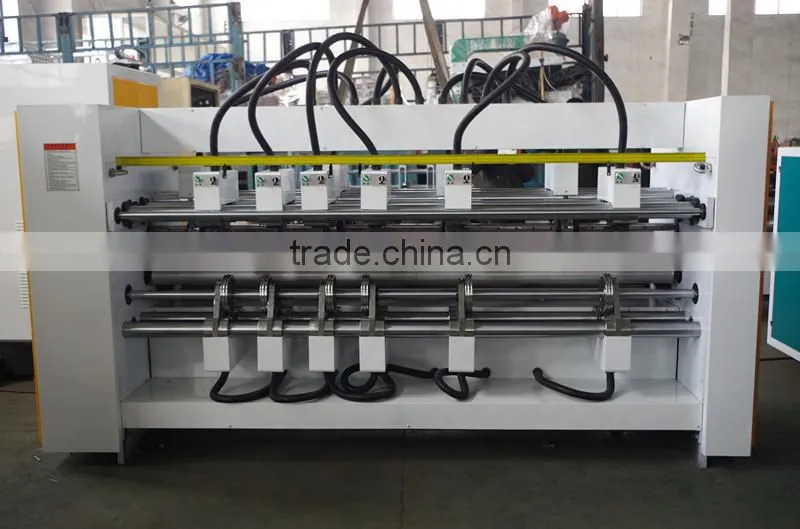

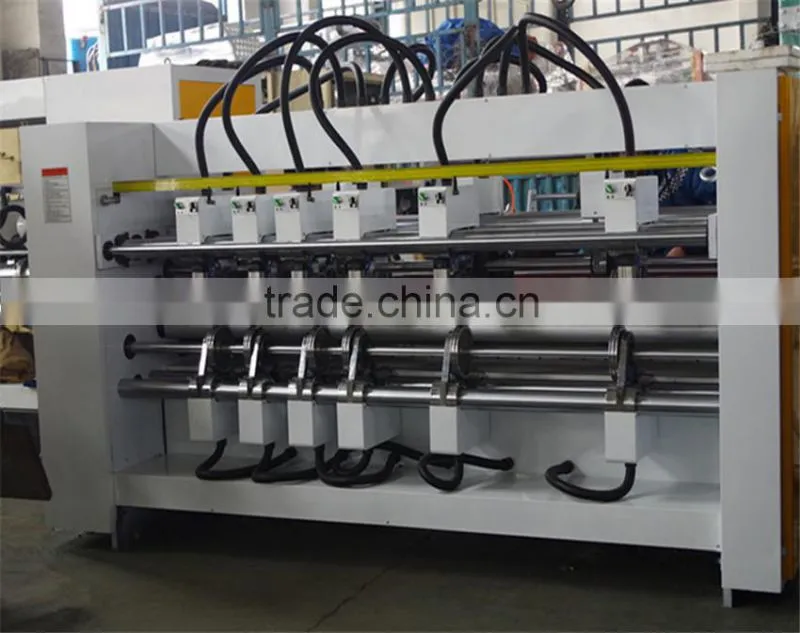

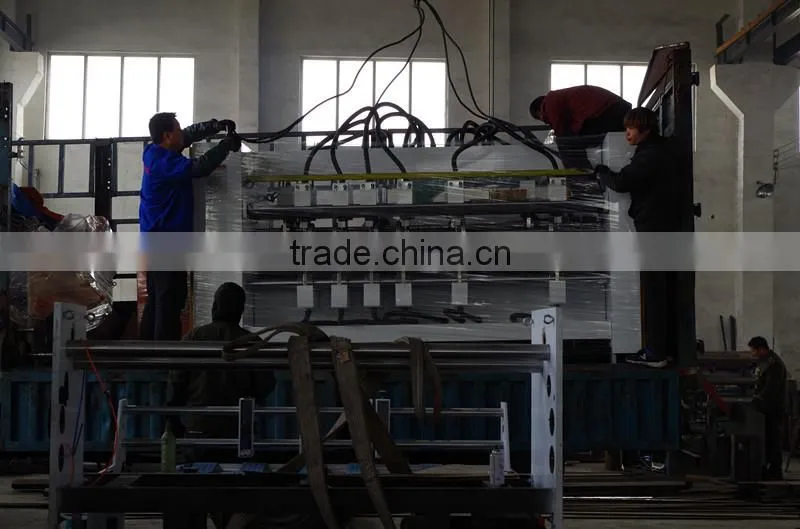

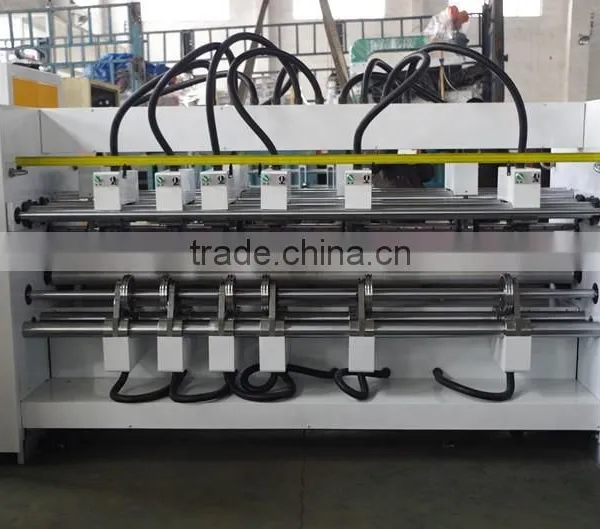

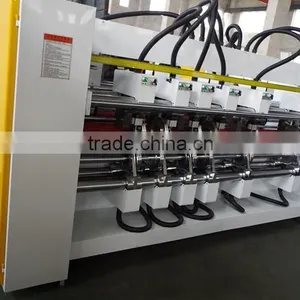

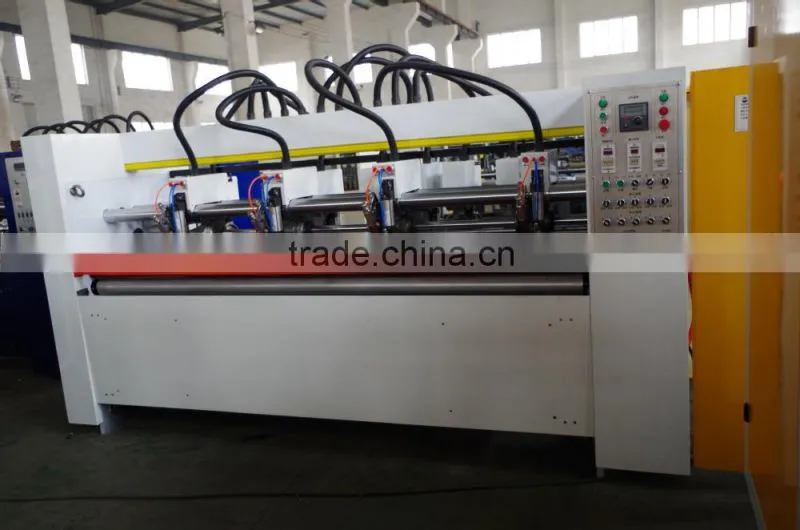

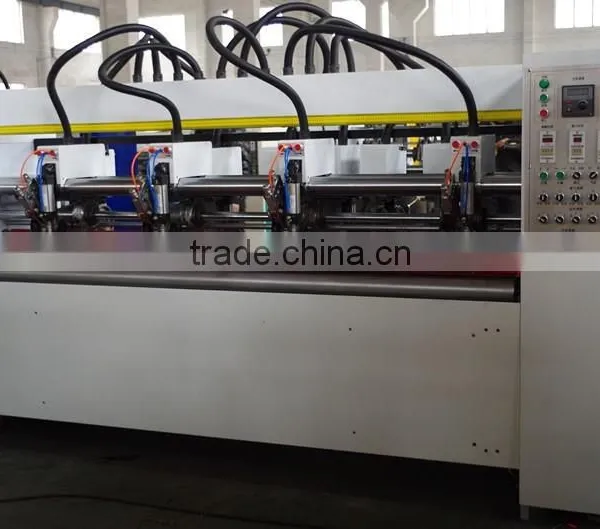

SMBD-QDD blade&scorer electric adjusted type thin blade slitter scorer

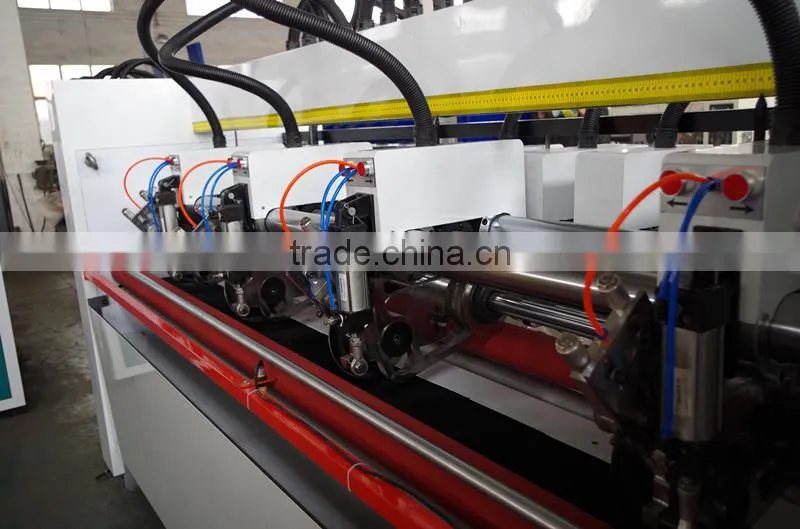

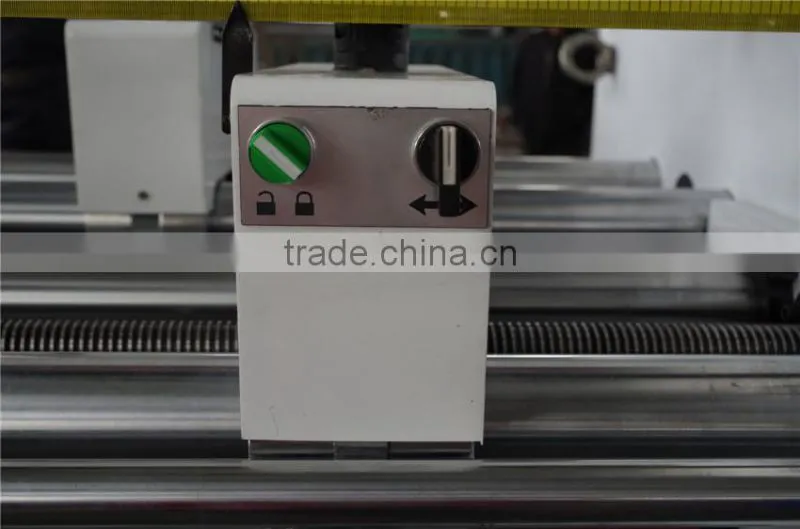

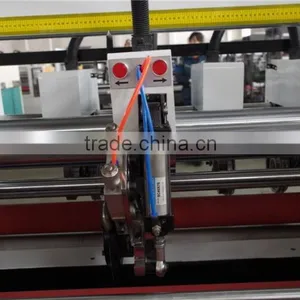

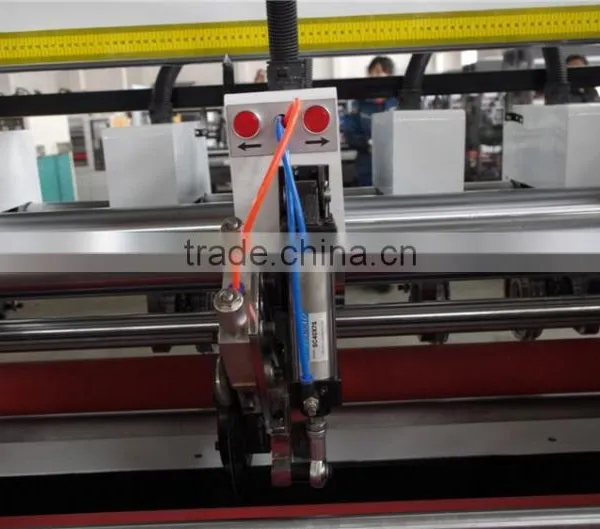

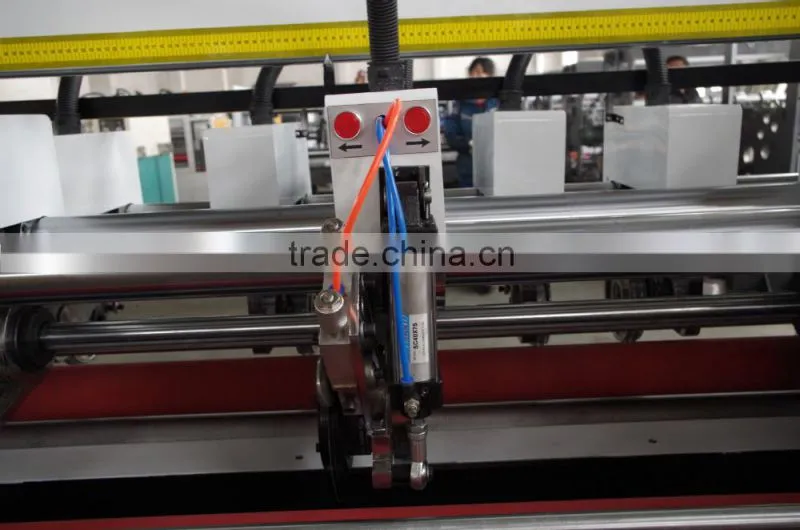

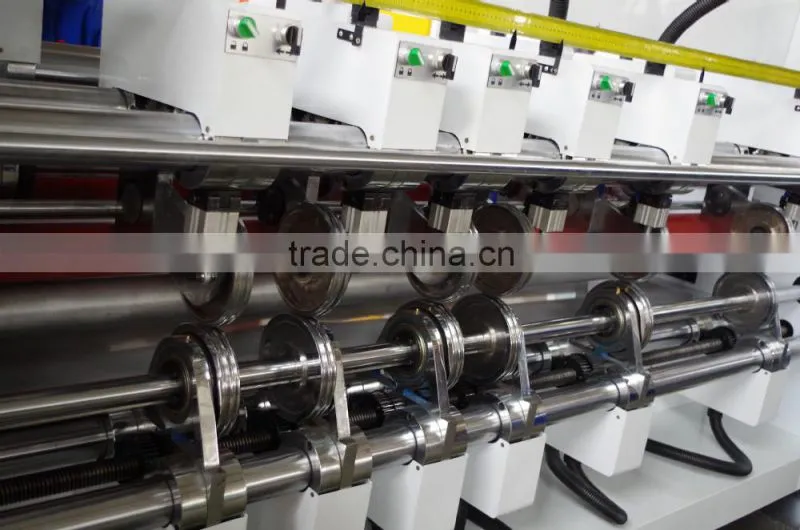

- Slitting blade electrically adjusted, pneumatic lifting, work with double smooth shaft guide way, pneumatic locking, assured the stable working, fast order changing.
- Scorer electrically adjusted, the above scorer pneumatic lifting, double smooth shaft guide way, pneumatic locking, fast order changing.
- The scorer part adopt button for rectification, can make the above and lower scorers align center.
- Adopt domestic or imported brand electric element.
- The former and latter rubber rollers minished the processable paper length. It can also slitting without scoring.
- Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
- Adopt two shafts in front and back of the slitter, can minimize the length of paperboard machining.
- Scoring part: adopt 5 points scoring, scoring distance inphase adjust, blazonry and easy to bend the carton sheet.

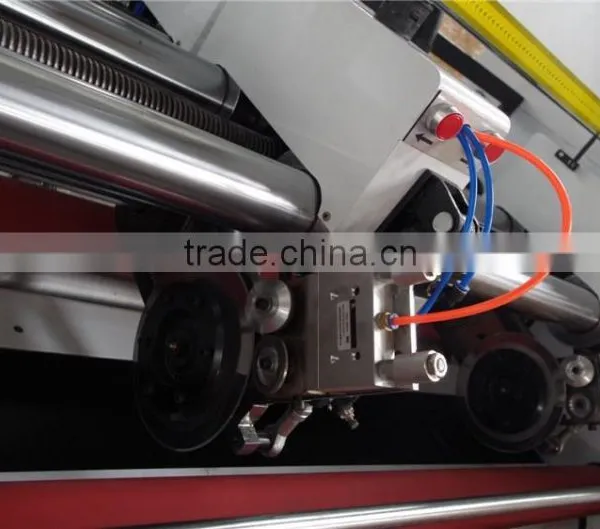

- Grinding part: adopt automatic and manual two kinds pneumatic grinding types, it could be grinding when working, improve work efficiency.
Model |
SMBD-QDD-2000 |
SMBD-QDD-2200 |
SMBD-QDD-2500 |
SMBD-QDD-3000 |
effective width |
1900mm |
2100mm |
2400mm |
2900mm |
min. slitting length |
280mm |
280mm |
280mm |
280mm |
min. slitting width |
130mm |
130mm |
130mm |
130mm |
min. Scorer width |
130mm |
130mm |
130mm |
130mm |
machine dimension |
2580*1750*1350 (mm) |
2780*1750*1350(mm) |
3080*1750*1350(mm) |
3580*11750*1350(mm) |
total power |
4kw |
4kw |
5kw |
7.5kw |
speed |
120m/min |
100m/min |
100m/min |
80m/min |
1. Q: Are you a manufacturer or trading company?
A: We SOOME is a manufacturer of carton machinery which has nearly 20 years production experience.
2. Q: Have you ever attended or will attend any exhibition?
A: We ever attended the Canton Fair and Chengdu international corrugated exhibition. And we will attend the SinoCorrugated 2015 in Shanghai from Apr. 14th to 17th, 2015.
Welcome to visit our booth: N5 D94
3. Q: Can we visit your factory?
A: Yes, you are welcomed to visit our factory at any time!
