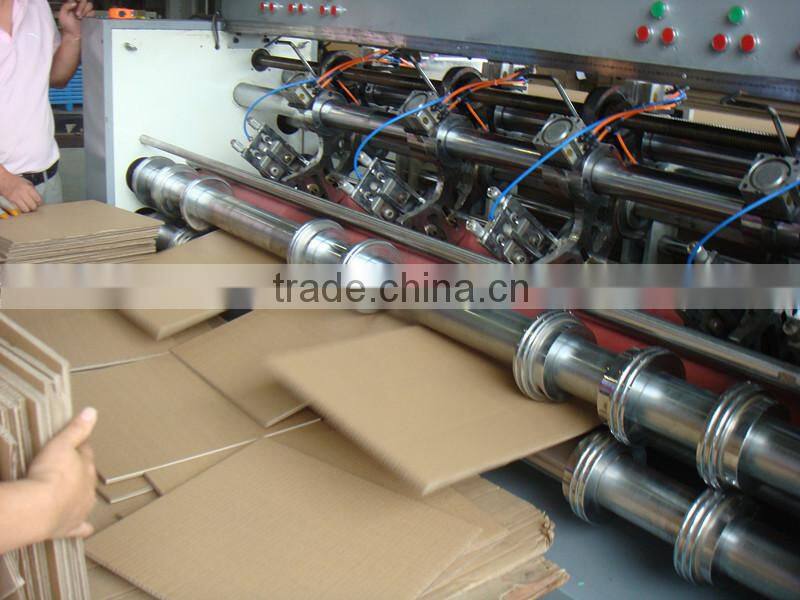

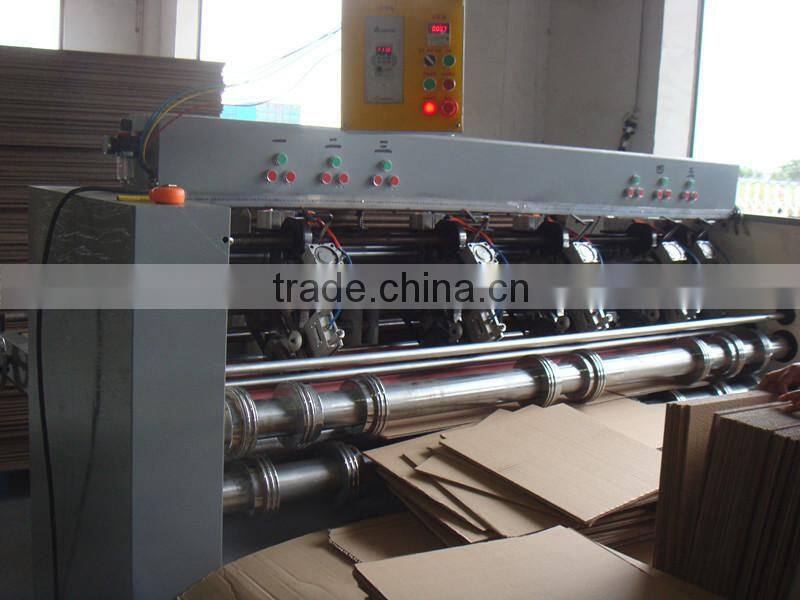

SMBD-ZDSL Auto feeding paper type thin blade slitter scorer
- 60 Set / Sets per Month
- Tianjin port
- T/T Credit Card
- Inside and outside bag packaging line Healthy teatriangle packaging linkage line
- Pharmaceuticals industrypackaging assembly line Packaging production line
- China teatriangle packaging linkage line Green teainternal and external package linkage line
- Packing and palletizing linkage line Beverage industrybox and palletizing production line
- Pharmaceuticals industrypackaging linkage line Packaging production line
- Box code stack production line Beverage industrybox and palletizing assembly line
Product Details
Condition: | New | Application: | Other, paper slitting | Packaging Type: | Cartons, Case, Film |
Packaging Material: | Plastic, Wood | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | customer required | Power: | 9.5kw | Place of Origin: | Hebei, China |
Brand Name: | SOOME | Model Number: | SMBD-ZDSL | Dimension(L*W*H): | 2900*2300*1400mm |
Weight: | 1.5T | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

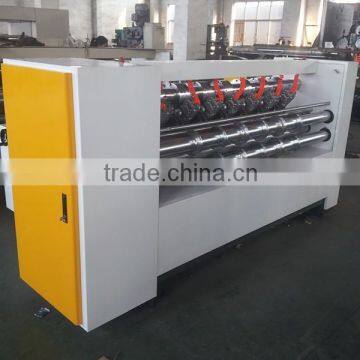

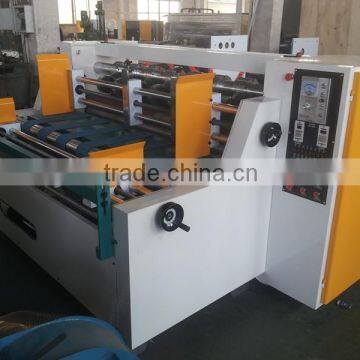

Automatic paper feeding type thin blade slitter scorer single machine

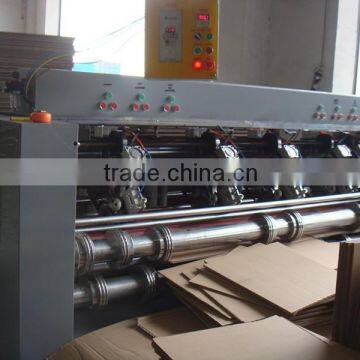

1. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining.
2. Slitting part: adopt high quality tungsten steel blade, sharp and long working life, slice tidier, non-pressing and non-burr.
3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjustment, blazonry and easy to bend the carton sheet.
4. Grinding part: adopt automatic and manual pneumatic grinding. It can grind while working, which can improve working efficiency.
5. Electrical blade distances adjustment, pneumatic locking. (Optional)
6. Can set the qty. of paperboard, automatic stop the feeding after finishing.

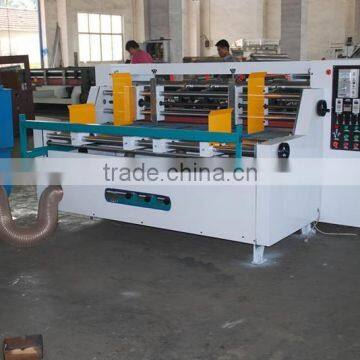

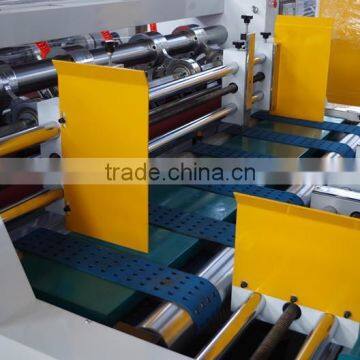

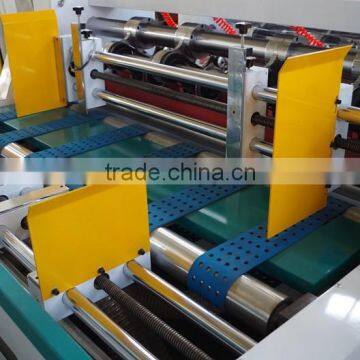

Auto suction paper feeding, assured the safety of workers and decreased the working load.
Suitable to a large scale paperboard machining.
Main Technical Parameter:
Type | Smbd-zdsl-2000 | Smbd-zdsl-2200 | Smbd-zdsl-2500 | Smbd-zdsl-3000 |
effective width | 1800mm | 2000mm | 2300mm | 2800mm |
min. slitting length | 260mm | 260mm | 260mm | 260mm |
min. slitting width | 120mm | 120mm | 120mm | 120mm |
min. Scorer width | 30mm | 30mm | 30mm | 30mm |
machine dimension | 2580*1750*1350 (mm) | 2780*1750*1350(mm) | 3080*1750*1350(mm) | 3580*11750*1350(mm) |
total power | 9kw | 9kw | 10.5kw | 13.5kw |
speed | 120m/min | 100m/min | 100m/min | 80m/min |
1. Q: Are you a manufacturer or trading company?
A: We SOOME is a manufacturer of carton machinery which has nearly 20 years production experience.
2. Q: Have you ever attended or will attend any exhibition?
A: We ever attended the Canton Fair and Chengdu international corrugated exhibition. And we will attend the SinoCorrugated 2015 in Shanghai from Apr. 14th to 17th, 2015.
Welcome to visit our booth: N5 D94
3. Q: Can we visit your factory?
A: Yes, you are welcomed to visit our factory at any time!
