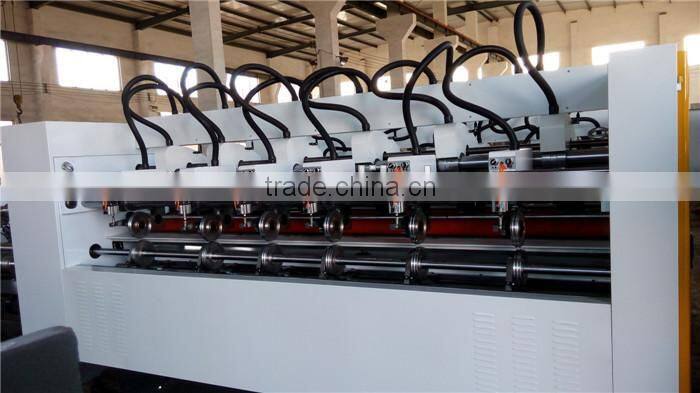

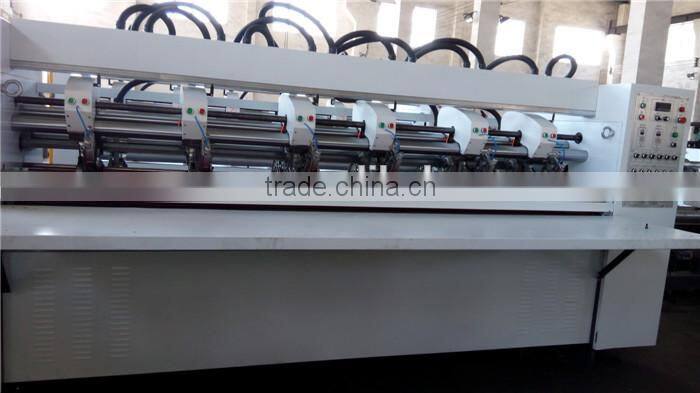

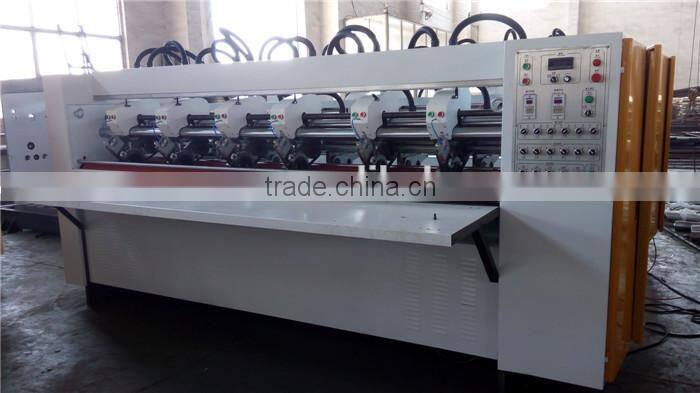

Knife & creaser both move by electric thin blade slitter scorer
Function and Features

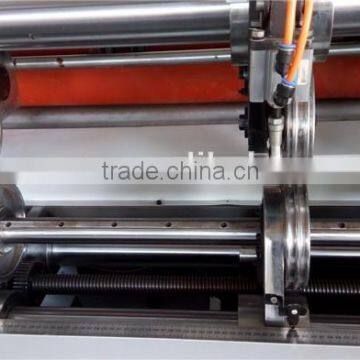

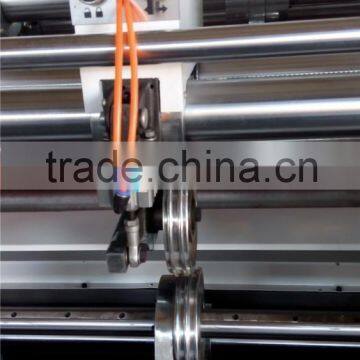

1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 300mm.

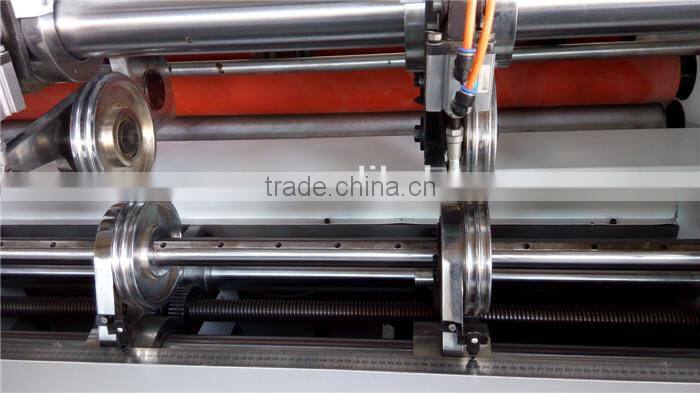

3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4. Grinding part: adopt manual and pneumatic two types of blade grinding , it could be grinding when working, improve work efficiency.

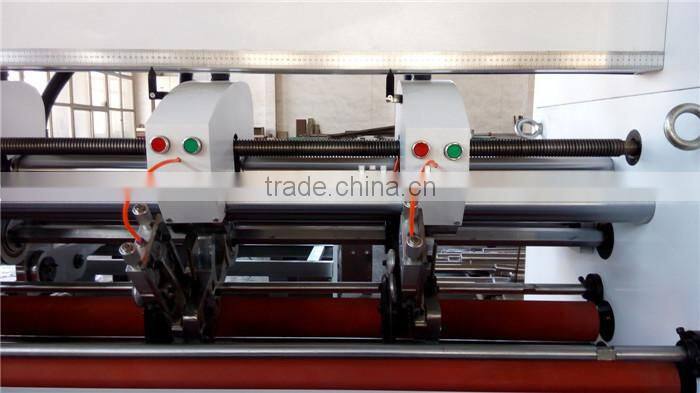

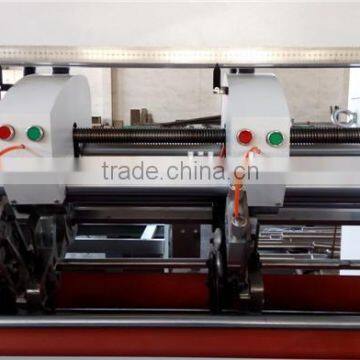

5. Blade and creaser both move by electric.
6. The scorer part adopt above & lower button for rectification, can make the scorers align center.
7. The former and latter rubber rollers minish the processable paper length. Can also slitting without creasing.
8. Option: Blade & scorer pneumatic lifting up and down.
9. Can cut and crease 15mm thick cardboard.
Technical parameters
TYPE |
SMBD-QDD-1600 |
SMBD-QDD-1800 |
SMBD-QDD-2000 |
SMBD-QDD-2500 |
SMBD-QDD-2700 |
SMBD-QDD-3000 |
Effective width |
1400mm |
1600mm |
1800mm |
2300mm |
2500mm |
2800mm |
Speed |
130m/min |
130m/min |
120m/min |
100m/min |
100m/min |
80m/min |
Total power |
4kw |
4kw |
4kw |
5kw |
5kw |
7.5kw |
Min. Slitter-spacing |
130mm |
130mm |
130mm |
130mm |
130mm |
130mm |
Min. Score-spacing |
130mm |
130mm |
130mm |
130mm |
130mm |
130mm |
Min. Paper length |
300mm |
300mm |
300mm |
300mm |
300mm |
300mm |
Dimensions L x W x H (mm) |
2250*770*1350 |
2450*770*1350 |
2650*770*1350 |
3150*770*1350 |
3350*770*1350 |
3650*770*1350 |
