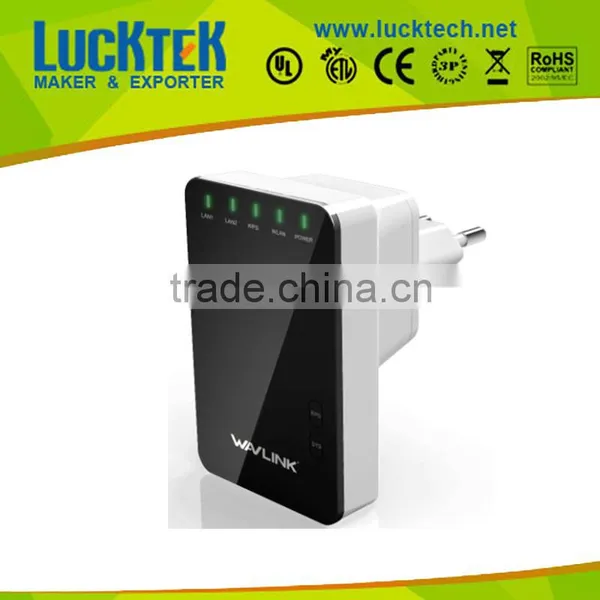

300Mbps Mini AP/Repeater Wireless N

300Mbps Mini AP/Repeater Wireless N thumbnail-1
300Mbps Mini AP/Repeater Wireless N photo-1
US$ 10 - 12 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Lucktech or OEM
Model Number:
LK-WN523N2
Contact Supplier Request Quote Chat Now
Ningbo Lucktech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Lucktech or OEM
Model Number LK-WN523N2

Specifications

1,Supports Wifi Protection Setup
2,supports repeater,client an AP operation mode
3,Extend wifi coverage

300Mbps Mini AP/Repeater Wireless N  description:



The Wireless Mini Router, supports 802.11 N wireless transmission standards, and compatible with IEEE802.11 b/g standards, which supports data rate up to 300 Mbps.The Wireless Mini Router is Mainly used for providing  free WIFI service in big area such as factory , community , street or etc. For example, the normal enhancer can expend distance up to 300 meters away. It supports WEP, WPS adn WPA/WPA2 of personal and enterprise encryption standards.
The Wireless Mini Router Not only the product can work compatitable with 11b/g/n wireless adapter, but also can work well with WiFi mobile phone,tablet PC,Laptop,notebook etc.It provides stable and high-speed wireless signal that makes you surf internet more smooth and fast.



Featues:



• Provides 1 x 1000Mbps Auto-Negotiation Ethernet WAN port
• Provides 1 x 1000Mbps Auto-Negotiation Ethernet LAN ports
• Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
• Provides up to 300Mbps transmission rates
• Supports AP,AP Client,Gateway,WDSworking mode
• Support 2.4GHz WLAN networks
• Maximum WLAN security with WPA2, WPA and WEP(128/64)
• Software wizard for simple setup
• detachable omni antennas



Package Content:



1 xWifi repeater
1 x RJ-45 Networking Cable
1 x  Quick Installation





SPECIFICATION
Hardware Wireless
Ports 1x10/100Mbps LAN PORT,1x10/100MbpsWLAN PORT Standard IEEE802.11b,IEEE 802.11g, IEEE 802.11n
Button 1x Reset   1x WPS Modulation 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
LED 1x LAN, 1 x WLAN, 1 x Power,1 x WPS, 1 x WAN
Chipset RTL8196C+RTL8192CE Speed 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Flash 16Mbps
SDRAM 128Mbps Channel 11: (Ch.1-11) - USA
13: (Ch.1-13) – Europe
14: (Ch.1-14) – Japan
Power Supply 100-240 Va.c. 50/60Hz,0.1A
Power Plug EU   UK…Australia Frequency band 2.412~2.462 GHz –USA
2.412~2.472 GHz –Europe ETSI
2.412~2.484 GHz –Japan
Power Consumption N/A
Rated Voltage/ requency /current input:100-240 Va.c. 50/60Hz,0.1A   ; Output 5V/1A Power 802.11b: 17dBm ± 1.5 dBm
802.11g: 14dBm ± 1.5 dBm
802.11n: 14dBm ± 1.5 dBm
Dimensions
Unit Dimensions mm (L x W x H) Sensitivity 802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm
Weight About g Antenna 2dBi Integrated Antennas x 2
Package Dimensions x x x MM   (xxg/PCS) Distance Outdoors 300m, Indoor 100m(According to the actual environment change)
Inner Pack x x x CM (xxPCS/CTN) Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC , WDS
Master Carton x x x CM (xxPCS/CTN)
Environmental Software
Operating Temperature 0ºC~40ºC Standard Version RFC768 User Datagram Protocol(UDP)
RFC791 Internet Protocol(IP)
RFC792 Internet Control Message Protocol
RFC793 Transmission Control Protocol(TCP)
bandwidth:20MHz,40MHz
Wireless Mode:11n only,11 bgn mixed,11 bg mixed,11 gn mixed,     11g only,11b only(option)
Storage Temperature -10~70°C
Relative Humidity(Operational) 10%~90%,noncondensing
Relative Humidity(Storage) 10%~90%,noncondensing
Certification
CE-EMC EN55022 EN55024          NO suitable   Mode AP Mode / Client Mode
Bridge Mode /Router Mode
CE-RTTE EN301489-1 V 1.9.2 EN301489-17 V2.1.1 EN300328 V 1.7.1 PASS
CE-LVD EN60950-1 PASS Wireless Safely Wireless MAC address Screening
Wireless security function switch
64/128/152-bit WEP
WPA-PSK/WPA2-PSK,WPA/WPA2
FCC DOC FCC Prat15 B NOT
FCC ID FCC Part15C NOT
ROHS 2011/65/EC NOT Function IP bandwidth control
DNS Relay
VPN Pass-throughStatic Route
DHCP Server
Reach SVHC-73 NOT
3C GB4943-2001 GB9254-1998 GB/T17618-1998 NOT
Others
Method See Manual
Performance See Test Report DHCP settings Server Mode
disabled Mode
Reliability See Test Report
                            Security
Settings		 IP and MAC address binding against ARP attacks
IP address Screening
MAC address Screening



                            System Tools Traffic statistics
System Journal
