Specifications
RG6 coaxial cable1, CCS or CU conductor
2,different braiding avaible
3,UL approved

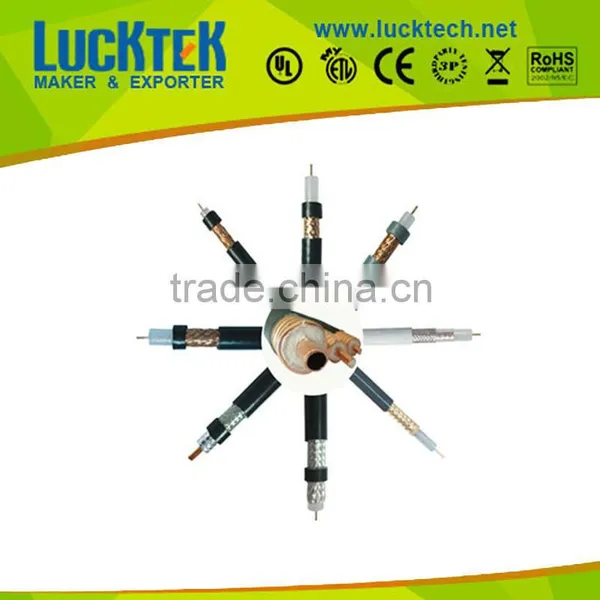

RG6 coaxial cable Specifications
RG6 coaxial cable features: 1.02mmCCS+4.8mmFPE+ALFoil+64*0.12mmAl-Alloy+6.8mmPVC 2.Impedance : 75ohm 3.ISO 9001/CE/ROHS
1. RG6 coaxial cable Specification
1) Inner conductor: CCA/CCS/CU
2) Dielectric: SPE/FPE
3) AL Foil: Bonded, non-bonded, single, double
4) Braiding wire material: Cu,Al-Mg, TC
5) Braiding wire diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding net: 48,64,72,80,96,128 and more
7) Coverage: 40%,50%, 60%, 80% and more
8) PVC Degree: 65,68,70,75
9) color: Black,white or grey
10) OEM and customers designation are welcome
2. RG6 coaxial cable Characteristics
| Attenuation | Frequency | Nominal values | Frequency | Nominal values | |
| [@68 F. (20 C°) ] | MHz | (dB/100m) | MHz | (dB/100m) | |
| 5 | 1.9 | 750 | 18.44 | ||
| 55 | 5.25 | 870 | 19.99 | ||
| 211 | 9.43 | 1000 | 21.46 | ||
| 250 | 10.82 | 1450 | 26.25 | ||
| 300 | 11.25 | 1750 | 28.67 | ||
| 400 | 13.12 | 2050 | 31.04 | ||
| 550 | 16.08 | 2250 | 32.81 | ||
3.Packing details
1) Inner packing: 100m in PE film, 100m in plastic/wood spool, 305m/wood drum, 500m/wood drum
2) Outer packing: carton, wooden drum
3) Other packing available according to clients requests.
