Coaxial Cable Price Semi-Rigid Coax Cable
US$ 0.01 - 0.2
MOQ: 10000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
SR-141C-35
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Semi Rigid Coaxial CableUS$ 0.01 - 0.2MOQ: 10000 Meters -
Semi Rigid Coaxial CablesUS$ 0.01 - 0.2MOQ: 10000 Meters
-
Semi Flexible Cables Coaxial PriceUS$ 0.01 - 0.2MOQ: 10000 Meters
-
Semi Flexible CableUS$ 0.01 - 0.2MOQ: 10000 Meters
-
High Grade Semi Flexible Coaxial CableUS$ 0.01 - 0.2MOQ: 10000 Meters
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
SR-141C-35
Type
Coaxial
Number of Conductors
1
Specifications
-Quality Approved-Competitive price
-Promote Delivery time

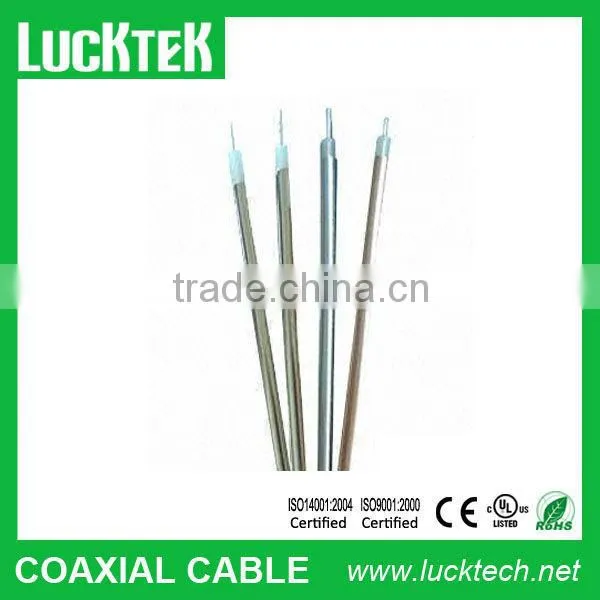

Semi-Rigid Coax Cable
SR-141C-35
0.141 inch OD (3.58mm)
Construction:
| Item | Material | Diameter (Inch/mm) | |
| Inner Conductor | Silver plated copper |
0.0508+/-0.001 | 1.29+/-0.0254 |
| Dielectric | PTFE | 0.117+/-0.001 | 2.97+/-0.0254 |
| Outer Conductor | Seamless Copper Tube | 0.141+/-0.001 | 3.58+/-0.0254 |
Electrical & Mechanical Characteristics:
Capacitance: 136.0pF/m
Impedance: 35+/-1Ω
Velocity of Propagation: 70.0%
Corona Extinction voltage: 1500.0VRMS@60Hz
Voltage Withstand: 3000.0VRMS@60Hz
Max. Operating Frequency: 20.0GHz
Min. Inside Bend Radius: 12.5mm
Outer Conductor Integrity Temp: 175.0°C
Operating Temp Range: -55 to +125°C
Attenuation & Average Power (@ 20°C & Sea Level):
|
Frequency (GHz) |
Attenuation (dB/ft. dB/meter) |
Average Power (Watts CW) |
|
| 0.5 | 0.09 (0.28) | 552.4 | |
| 1.0 | 0.12 (0.41) | 384.6 | |
| 5.0 | 0.30 (0.99) | 161.5 | |
| 10.0 | 0.45 (1.48) | 109.2 | |
| 20.0 | 0.69 (2.25) | 72.7 | |
Certification:
Factory Show:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
