Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 50hz X Engine Silent Diesel Generator 13kw
50hz X Engine Silent Diesel Generator 13kw
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SDS
Model Number:
SDG-X13S3
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50hz 10kw Silent Diesel Generator SetUS$ 999 - 2,199MOQ: 1 Unit -
50hz X Engine 16kw Super Silent Diesel GeneratorUS$ 1 - 2MOQ: 1 Set
-
50HZ X Engine Super Silent 30kw Diesel GeneratorUS$ 2,500 - 3,500MOQ: 1 Unit
-
60HZ X Engine 25kva Diesel GeneratorUS$ 1,999 - 3,899MOQ: 1 Unit
-
60hz X Engine 20kw Super Silent Diesel GeneratorUS$ 999 - 2,999MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
SDS
Model Number
SDG-X13S3
Output Type
AC Three Phase
Speed
1500
Frequency
50
Rated Power
13KW
Rated Voltage
230/400V
Rated Current
34.21A
Product Description
50hz X engine silent diesel generator 13kw
1)X engine+Brushless alternator
2)68db@7m, small size
3)Low fuel consumption
Important Features:
12 months warranty
The best Chinese engine
Light weight &compact in structure small size to save shipping cost
Noise level 69db(A) @7m
50 Litre top tank to avoid fuel leakage

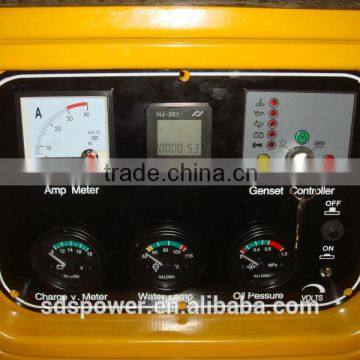

Deepsea702 controller applied
Rugged, closed water cooled, 4-cycle direct injection diesel engine
100% copper wire
ATS is ready
Generator Specification |
||
| Frequency | 50Hz | 60Hz |
| Rated Power KW | 13KW | 15KW |
| Max power KW | 14KW | 16KW |
| Rated voltage (V) | 230/400 | 240/416 |
| Rated current A | 34.21 | 39.47 |
| Rated speed r/min | 1500 | 1800 |
| Starting Mode | 12V | |
| Feul tank capacity (Liter) | 44L | |
| Continuous operational time(hrs) | 12 hrs | |
|
Noise level(dB(A)/ 7m) |
69 | 69 |
| Dimension L.W.H.(mm) | 1650*750*750 | |
| Net weight (kg) | 430 | |
| Loading Capacity | 30pcs/20'FCL,55pcs/40'HQ | |
| Engine Specification: | ||
| Engine Model | XC485D | |
| Manufacturer | XC | |
| Bore*Stroke | 85*100 | |
| Displacement(L) | 2.27 | |
| 12h Power kw(ps) | 17/1500r/min | 19/1800r/min |
| Fuel consumpion g/kw.h | ≤238 | |
| Engine Type | ||
| Compression ratio | 18:1 | |
| Starting Motor (V-KW) | 12V-3KW | 12V-3KW |
| Charging alternator(V-W) | 14V-500W | 14V-500KW |
