50hz 10kw Silent Diesel Generator Set
US$ 999 - 2,199
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SDS
Model Number:
SDG-Y10S
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50hz X Engine 16kw Super Silent Diesel GeneratorUS$ 1 - 2MOQ: 1 Set -
50HZ X Engine Super Silent 30kw Diesel GeneratorUS$ 2,500 - 3,500MOQ: 1 Unit
-
60HZ X Engine 25kva Diesel GeneratorUS$ 1,999 - 3,899MOQ: 1 Unit
-
60hz X Engine 20kw Super Silent Diesel GeneratorUS$ 999 - 2,999MOQ: 1 Set
-
50HZ X Engine Super Silent 25kw Diesel GeneratorUS$ 2,500 - 3,500MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
SDS
Model Number
SDG-Y10S
Output Type
AC Three Phase
Speed
1500rpm 1800rpm
Frequency
50hz 60hz
Rated Power
9kw 10kw
Rated Voltage
230V /400V 240/416V
Rated Current
26.32A 27.5A
Product Description

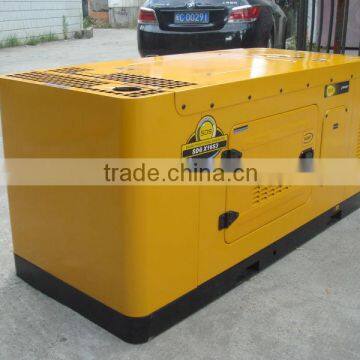

50hz 10kw silent diesel generator set
1)Y engine, 4 cylinders
2)Very small size, save freight
3)Stable Performance
Important Features:
12 months warranty
Light weight &compact in structure
Noise level 69db(A) @7m
Brushless alternator, in accordance with IEC60034
50 Litre top tank to avoid fuel leakage

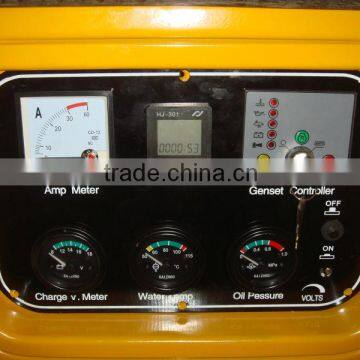

Deepsea702 controller applied

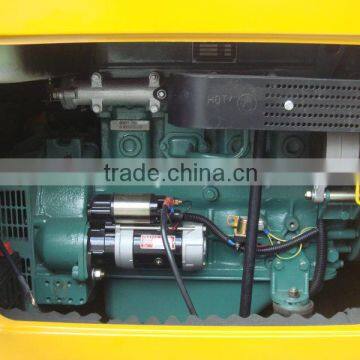

Rugged, closed water cooled, 4-cycle direct injection diesel engine.
100% copper wire
ATS is ready
| Generator Specification | ||
| Frequency | 50Hz | 60Hz |
| Rated Power KW | 9KW | 10KW |
| Max power KW | 10KW | 11KW |
| Rated voltage (V) | 230/400 | 240/416 |
| Rated current A | 26.32 | 27.5 |
| Rated speed r/min | 1500 | 1800 |
| Starting Mode | 12V | |
| Feul tank capacity (Liter) | 44L | |
| Continuous operational time(hrs) | 12 hrs | |
| Noise level(dB(A)/ 7m) | 68 | 69 |
| Dimension L.W.H.(mm) | 1500*750*750 | |
| Net weight (kg) | 390 | |
| Loading Capacity | 30pcs/20'FCL, 62pcs/40'FCL, | |
| Engine Specification: | ||
| Engine Model | 385BD | |
| Manufacturer | LAIDONG | |
| Bore*Stroke | 85*90 | |
| Displacement(L) | 1.532 | |
| 12h Power kw(ps) | 12/1500r/min | 13/1800r/min |
| Fuel Consumpion g/kw.h | ≤238 | |
| Engine Type | Closed water cooled, in line, 3-cylinders, 4-cycle, direct injection, | |
| Compression ratio | 18:1 | |
| Starting Motor (V-KW) | 12V-3KW | 12V-3KW |
| Charging alternator(V-W) | 14V-500W | 14V-500W |
