50HZ X Engine Super Silent 30kw Diesel Generator
US$ 2,500 - 3,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SDS
Model Number:
SDG-X30S3
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
60HZ X Engine 25kva Diesel GeneratorUS$ 1,999 - 3,899MOQ: 1 Unit -
60hz X Engine 20kw Super Silent Diesel GeneratorUS$ 999 - 2,999MOQ: 1 Set
-
50HZ X Engine Super Silent 25kw Diesel GeneratorUS$ 2,500 - 3,500MOQ: 1 Unit
-
50HZ X Engine 20kw Silent Diesel Generator SetUS$ 1 - 2MOQ: 1 Unit
-
50hz X Engine Silent Diesel Generator 13kwUS$ 1 - 2MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
SDS
Model Number
SDG-X30S3
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50HZ
Rated Power
30KW
Rated Voltage
380V
Rated Current
54.13A
Product Description

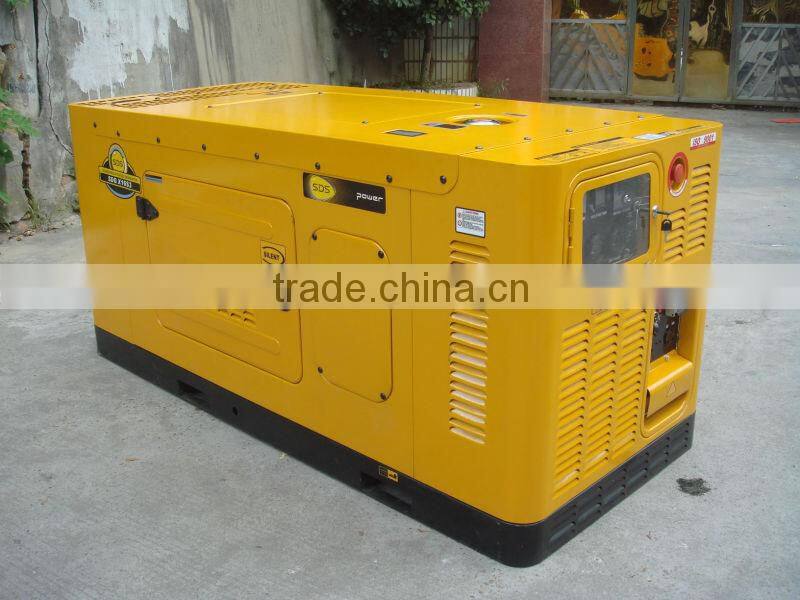

50HZ X engine Super Silent 30kw diesel generator
1)X engine
2)compact structure, 68db@7m
3)small size, save freight
4)12 months warranty
Important Features:
X engine, the most cost-effecive type engine, very good performance
Light weight &compact in structure
Brushless alternator, in accordance with IEC60034
50 Litre top tank to avoid fuel leakage
Deepsea control system
Rugged, closed water cooled, 4-cycle direct injection diesel engine
Best Quality AVR
100% copper wire
ATS is Available
| Frequency | 50Hz | 60Hz |
| Rated Power KW | 30KW | 35KW |
| Max power KW | 33KW | 38KW |
| Rated voltage (V) | 230/400 | 240/416 |
| Rated current A | 54.13 | 60.72 |
| Rated speed r/min | 1500 | 1800 |
| Starting Mode | 24V Electric | |
| Feul tank capacity (Liter) | 44L | |
| Continuous operational time(hrs) | 5 hrs | |
| Noise level(dB(A)/ 7m) | 69 | 70 |
| Dimension L.W.H.(mm) | 1950*900*920 | |
| Net weight (kg) | 700 | |
| Loading Capacity | 12pcs/20'FCL, 26pcs/40'HQ | |
| Engine Specification: | ||
| Engine Model | 4DX22-50D | 4DX22-60D |
| Manufacturer | XC | |
| Engine Type | Closed water cooled, in line, 4-cylinders, 4-cycle, direct injection, | |
| Air Intake Type | Turbocharged | |
| Bore*Stroke | 102*118 | |
| Displacement(L) | 3.86 | |
| 12h Power kw(ps) | 37/1500r/min | 45/1800r/min |
| Fuel Consumpion g/kw.h | ≤220 | |
| Compression ratio | 17:1 | |
| Starting Motor (V-KW) | 24V-4.5KW | 24V-4.5KW |
| Charging alternator(V-W) | 28V-980W | 28V-980W |
