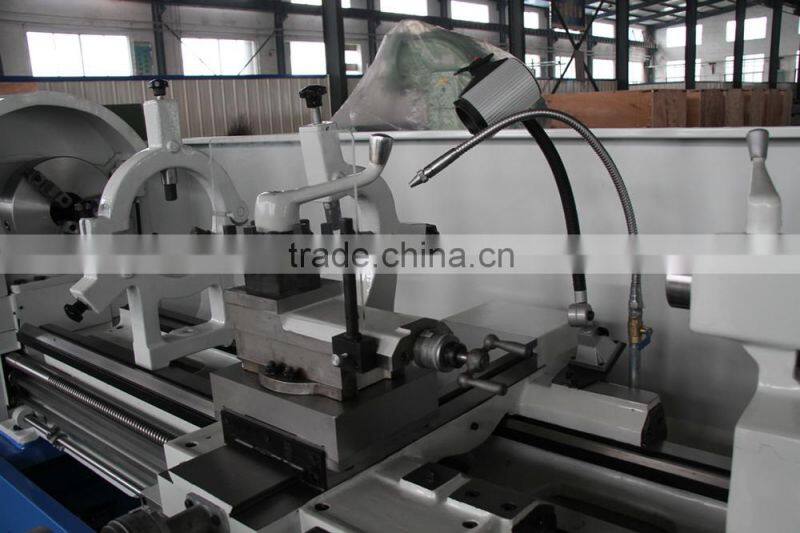

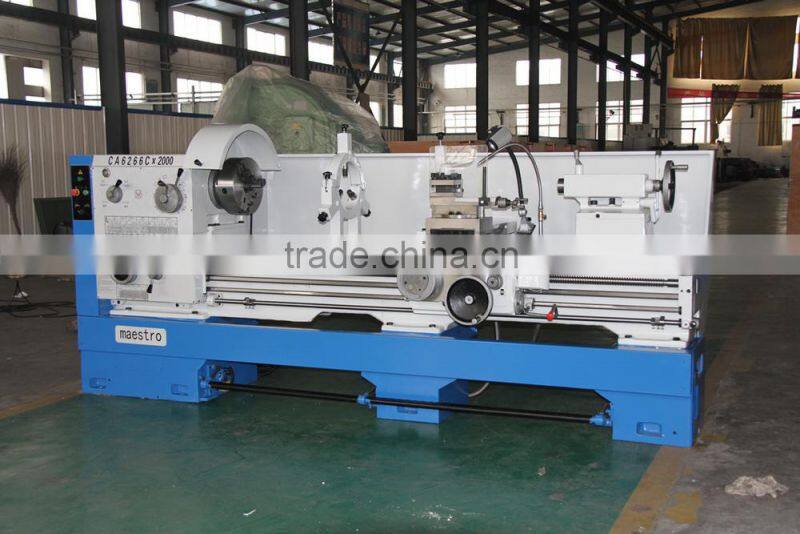

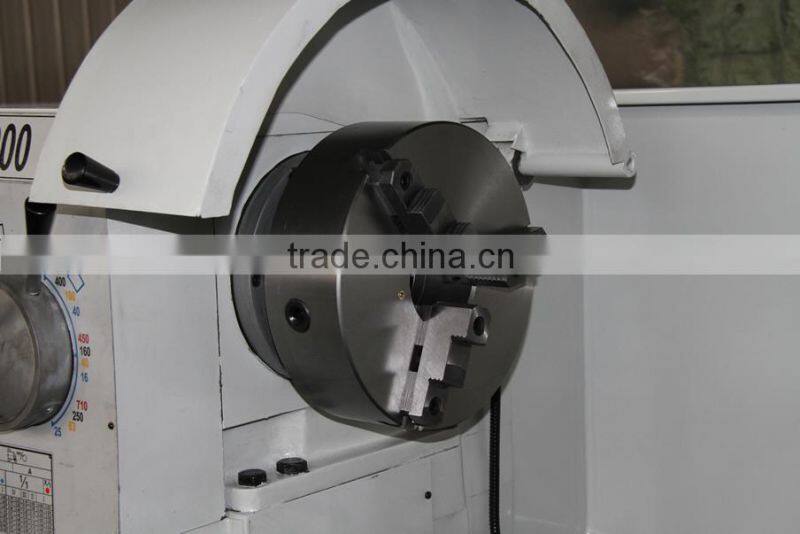

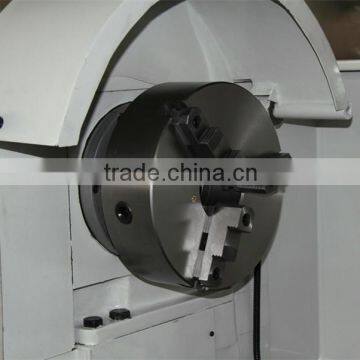

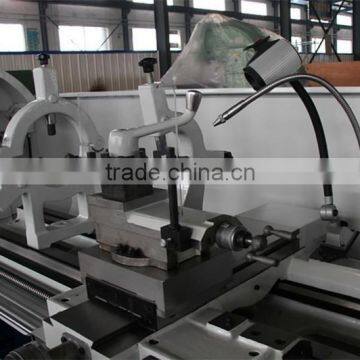

CA6266C Horizontal Lathe Machine With Spindle Bore 105mm

Name: CA6266C Horizontal Lathe Machine With Spindle Bore 105mm
Brand: Hising
SKU: 122084313
Availability: InStock

Tengzhou Hising Machine Tools Co., Ltd.

US$ 5,500 - 10,050 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 400mm

Place of Origin Shandong, China

Brand Name Hising

Model Number CA6266C

Voltage 380V/220V/415V

Power(W) 7.5KW

Dimension(L*W*H) 3650X1140X1900MM

Weight 2880/3050KGS

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Main Features of Horizontal lathe CA series:

1. High quality cast iron

2. guideway quenching treated and fine grinded.

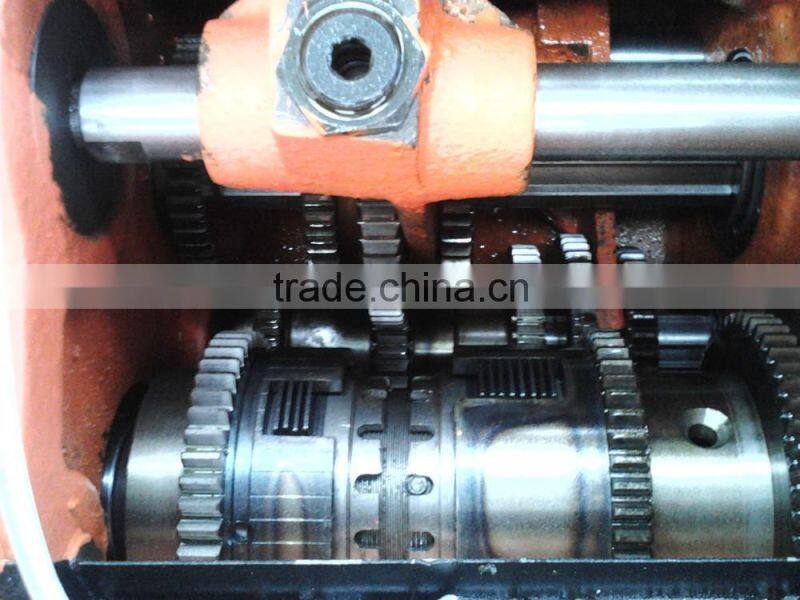

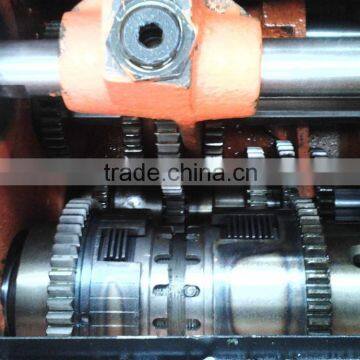

3. Famous brand gears adopted.

4. Color and voltage can be specially requested.

5. OEM services provided.

6. After-Sale services Provided.

Specifications

Model	CA6140 CA6240 CA6140B CA6240B		CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C		CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C		CA6166 CA6266 CA6166B CA6266B CA6166C CA6266C		CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C
Max. Swing over bed	400mm		500mm		610mm		660mm		800mm
Max. Swing over carriage	210mm		300mm		370mm		400mm		540mm
Max. Swing in gap	----	630mm	----	720mm	----	830mm	----	880mm	----	1020mm
Effective gap length	----	210mm	----	210mm	----	210mm	----	210mm	----	210mm
Max. length of work piece	500mm or 750mm or 1000mm or 2000mm or 2200mm or 3000mm or 4000mm
Width of bed	400mm
Section of turning tool	25mm x 25mm
Spindle hole	52mm (80mm)[ Φ105]
Spindle taper	Morse No.6(MT6)( Φ 90 1:20)[ Φ 113 1:20]
Number of feeds	64kinds (for each)
Range of metric threads (kinds)	(1-192mm) (44 kinds)
Range of inch threads (kinds)	(1-24tpi) (21 kinds)
Range of module threads (kinds)	0.25-48(module 39 kinds)
Range of pitch threads (kinds)	1-96DP (37 kinds)
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle center hole	MT5
Main motor	7.5kw (10HP)
