CNC Vertical Lathe With C Axis for Turning, Milling, Boring, Tappering

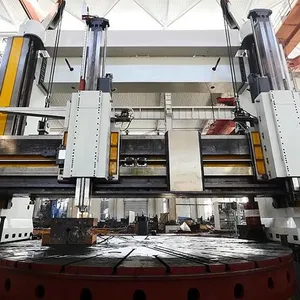

CNC Vertical Lathe With C Axis for Turning, Milling, Boring, Tappering thumbnail-1
CNC Vertical Lathe With C Axis for Turning, Milling, Boring, Tappering photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Vertical
Certification:
CE, ISO
Contact Supplier Request Quote Chat Now
Starfish Ruhr Heavy Machinery Technology (Dalian) Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Vertical
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Automatic Grade Automatic
CNC or Not CNC

Introduction

This CXK52 series of Double Column Vertical Turning Milling Lathe is our company absorbs contemporary advanced design and manufacturing technology, adopts finite element analysis calculation and optimization design methods, implements the latest national precision standards, configures advanced functional components at home and abroad, realizes strong cutting in structural performance, high dynamic and static rigidity of machine tools, safe and reliable movements, long service life and high processing efficiency of high-tech mechatronics machine tools.

This large live tool vertical lathe has 1 spindle (milling spindle), X, Z, C three feed axes, for three-axis linkage multi-functional, high-efficiency CNC double-column vertical turning and milling machine.


Parameter

The lathe is equipped with C axis for milling, boring, drilling, tapping

Item Unit CXK5225 CXK5235 CXK5240 CXK5250
Max. Worktable diameter mm 2500 3500 4000 5000
Max. Workpiece height mm 1600/2000/2200 1600/2000/2200 1600/2000/2200 4000
Worktable diameter mm 2250 2850 3150 4500
Max. Worktable weight t 10/16 10/16/20/32 10/16/32
/40/50/63		 32/40/50
/63150
Worktable rotation step
stepless stepless stepless stepless
Worktable rotation speed r/min 2~63 2~63 2~63 0.32~32
Max. Worktable torque KN·m 63 63 63 150
Main motor power kW 55 55 55 75/90
Weight t 41 45 47 200


Item Unit CXK5263 CXK5280 CXK52100 CXK52125
Max. Worktable diameter mm 6300 8000 10000 12500
Max. Workpiece height mm 4000 4000 4000 5500
Worktable diameter mm 5700 7100 7500 7500
Max. Worktable weight t 63/80
/100/150		 100/125/150 150/250 250
Worktable rotation step
stepless stepless stepless stepless
Worktable rotation speed r/min 0.32~32 0.32~32 0.2~20 0.16~16
Max. Worktable torque KN·m 150 150 640 640
Main motor power kW 90 90/132 132 132
Weight t 215 - - 465

Product Advantage

1. Gantry frame

The gantry is composed of a left column, a right column, a connecting beam, a worktable, etc. The gantry is connected to the foundation of the heavy duty vertical lathe with live tool Closed symmetrical frame; using high-strength low-stress cast iron, with sufficient rigidity and strength, to ensure the accuracy of the vertical turning lathe with long-term retention and stability.

2. Cross beam

The beam is placed in front of the column driven by a double-shaft extension AC motor, and driven by gears, worm gears, and lead screws to make the beam move vertically on the column

3. The worktable adopts

A fixed-spindle-type short-spindle structure. A set of high-precision (P5) double-row short cylindrical roller bearings is installed on the spindle of large vertical lathe.

4. Vertical tool holder

This equipment is equipped with a tool holder, which is a CNC turning and milling tool holder.



Product Tags: CNC Vertical Lathe with C axis , Vertical Turning Milling Lathe , CNC Vertical Turning Milling Lathe
