Specifications
1.quick start&small invest2.safe and pro-environment
3.save 20% fuel

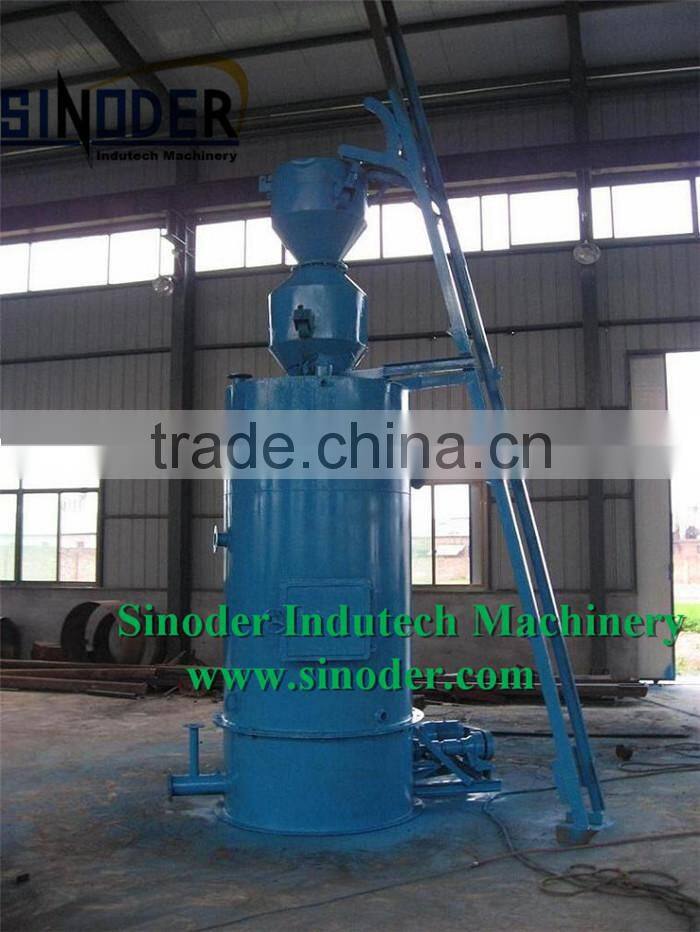

2014 hot selling biomass gasifier/ gas furnance
INTRODUCTION
The coal gas producer is a equipment that use coking coal,anthracite, weak conherent charcoal as fuel, air and steam as vaporization medicinalpreparation to produce gas as heat source.
It is widely used in the enviroment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerater, glass melting gas furnace, ceramic gas furnace, smoke exausting refractory kiln and tunnel kiln, as well as the renovation of furnaces that burn coal or oil, kilns, and equipment that needs heat such as metallurgy, chemical industry, allumim, fire-resistant materials, glass products and existing kiln,with very good effect
Technical parameter of single-stage gas producer
Type |
HT1.5-1 |
HT2.0-1 |
HT2.4-1 |
HT2.6-1 |
HT3.2-1 |
||||
I.D. of chamber mm |
1500 |
2000 |
2400 |
2600 |
3200
|
||||
Chamber cross-section area m2 |
1.77 |
3.14 |
4.52 |
5.31 |
8.04 |
||||
Heat perception area of water jacket m2 |
10.37 |
17.84 |
24.66 |
31.32 |
38.75 |
||||
Applicable coal |
Non-coking or weak-coking bituminous coal,soft coal or coke. Coal quality should be coincident with the requirement of GB9143 |
||||||||
Height of the ash layer mm |
100-300 |
100-300 |
100-300 |
100-300 |
100-300 |
||||
Coal size mm |
13~25; 25~50; 50~100 |
||||||||
Coal consumption kg/h |
350~550 |
600~900 |
900~1400 |
1000~1500 |
1700~2600 |
||||
Gasifying agent |
Air+Steam |
||||||||
Air consumption m3/kg coal |
2.2~2.8 |
2.2~2.8 |
2.2~2.8 |
2.2~2.8 |
2.2~2.8 |
||||
Stream consumption m3/kg coal |
0.3~0.5 |
0.3~0.5 |
0.3~0.5 |
0.3~0.5 |
0.3~0.5 |
||||
Gas putout N m3/h |
980~1600 |
1750~2800 |
2500~4000 |
3500~4800 |
5000~7500 |
||||
Gas heat value KJ/ m3 |
5020~6060 |
5020~6060 |
5020~6060 |
5020~6060 |
5020~6060 |
||||
Gas pressure at the outlet KPa |
<0.98 |
<0.98 |
<0.98 |
<1.5 |
<1.5 |
||||
Gas temperature at the outlet |
400~550 |
400~550 |
400~550 |
400~550 |
400~550 |
||||
Max. blast pressure at furnace bottom KPa |
2.45 |
3.5 |
3.5 |
4.0 |
6.0 |
||||
Steam output of water jacket kg/h |
250~300 |
300 |
450 |
500 |
550 |
||||
Steam pressure of water jacket Mpa |
0.294 |
0.294 |
0.294 |
0.294 |
0.294 |
||||
Coal-feeding mode |
Manual, Automatic |
||||||||
Coal-feeding system |
Bell charging, mechanical charging |
Bell charging, Hydraulic charging |
|||||||
Ash-discharging mode |
Automatically wet ash-discharging,Automatically dry ash-discharging |
||||||||
The features of coal gasifier:
1.Small investment of the main equipment,run fast.
2.Safe and convenient using,simple operation,can save 20% fuel than direct coal.
3.Compared with the heating furnace of direct fuel,use hot gas can save energy economy more than 60%
4.Have a significant effect of smoke prevention and dust control,meet environmental protection requirements, is the important equipment of hot working system.
5.Gas outlet temperature is 400-550 °C, the heat energy utilization rate is extremely high.
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
