infrared sensor smart phone

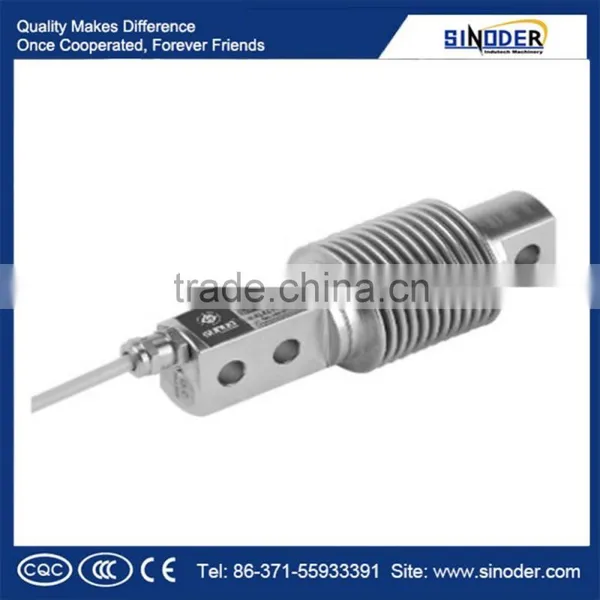

Product description:
1. Use a metal corrugated pipe welding seal form, the internal inert gas, can withstand pressure in two forms.
2. Overload resistance, fatigue resistance, resistance to partial load ability.
3. Can be used in belt scale, hopper scale, platform scales and various other materials testing machine system etc.

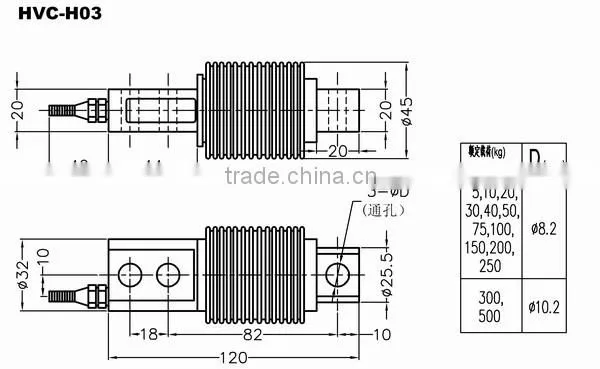

Parameter
Model |
SNHV-H03 |
Rated capacities(Emax) |
5,10,20,30,40,5075,100,150, 200,250,300,500kg |
Sensitivity |
2.0±0.002mv/v |
Total error |
±0.1percentF.S ±0.2 percent |
Creep(30min) |
±0.1 percentF.S ±0.2 percentF.S |
Zero balance |
±1 percentF.S |
TCO |
±0.2 percentF.S/10℃ |
TC SPAN |
±0.1 percentF.S/10℃ |
Input resistance |
400±20Ω |
Output resistance |
350 ±3Ω |
Insulation resistance |
≥5000MΩ |
Operating Temp Range |
-10~+200℃ |
Limit Temp Range |
-10~+250℃ |
Compensation Temp Range |
-10~+200℃ |
Safe load limit |
150 percentF.S |
Over load limit |
300 percentF.S |
Recommendexcitati |
10V~12V DC |
Maximumu excitation |
15V DC |
Protection Class |
IP68 |
Construction |
Alloy Steel |
Cable |
Length:3m Diameter: Φ5mm |
