Ultrasonic Atomizing Piezoelectric Transducer

Name: Ultrasonic Atomizing Piezoelectric Transducer
Brand: Sinoder
SKU: 122059571
Availability: InStock

US$ 20 - 100 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Sinoder

Model Number:

SNHV-L02

Zhengzhou Sinoder Indutech Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Sinoder

Model Number SNHV-L02

Usage Other, weighting

Theory Resistance Sensor

Output Analog Sensor

ultrasonic atomizing piezoelectric transducer

Parameter

Model	SNHV-L02
Rated capacities(Emax)	20t 30t
Sensitivity	3.0±0.06mv/v
Total error	±0.05percentF.S
Creep(30min)	±0.03 percentF.S
Zero balance	±1 percentF.S
TCO	±0.02 percentF.S/10℃
TC SPAN	±0.02 percentF.S/10℃
Input resistance	760±30Ω
Output resistance	700 ±10Ω
Insulation resistance	≥5000MΩ
Temperature range,compensated	-10~+40℃
Temperature range,operating	-30~+70℃
Maximum safe overload	150 percentF.S
Ultimate overload	200 percentF.S
Excitation,recommend	5V~12V DC
Excitation,maximum	15V DC
Protection Class	IP67
Construction	Alloy Steel
Cable	Length:12m Diameter: 6mm

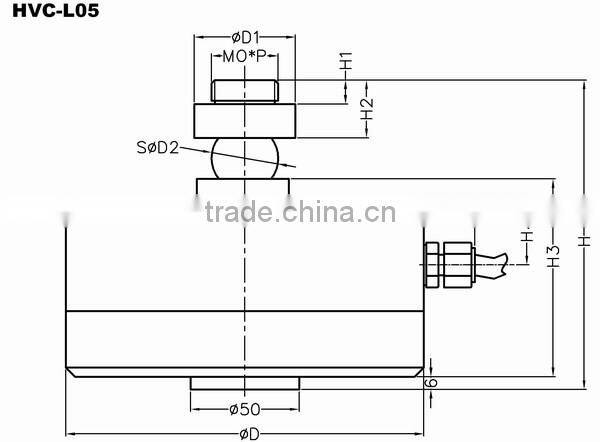

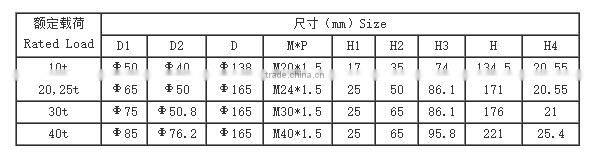

Model	SNHV-L05
Rated capacities(Emax)	10,20,25,30,40t
Sensitivity	3.0±0.003 mV/V
Total error	±0.05 percentF.S
Creep(30min)	±0.05 percentF.S
Zero balance	±1 percentF.S
TCO	±0.02 percentF.S/10℃
TC SPAN	±0.02 percentF.S/10℃
Input resistance	400 ±10 Ω(ohms)
Output resistance	352 ±2 Ω(ohms)
Insulation resistance	≥5000 MΩ
Temperature range,compensated	-10~+40℃
Temperature range,operating	-30~+70 ℃ 30t,40t
Maximum safe overload	150 percentF.S, 120 percentF.S
Ultimate overload	250 percent F.S, 200 percentF.S
Excitation,recommend	10~12 V DC
Excitation,maximum	15 V DC
Protection Class	IP67
Construction	Alloy Steel
Cable	Length:12m Diameter:6mm

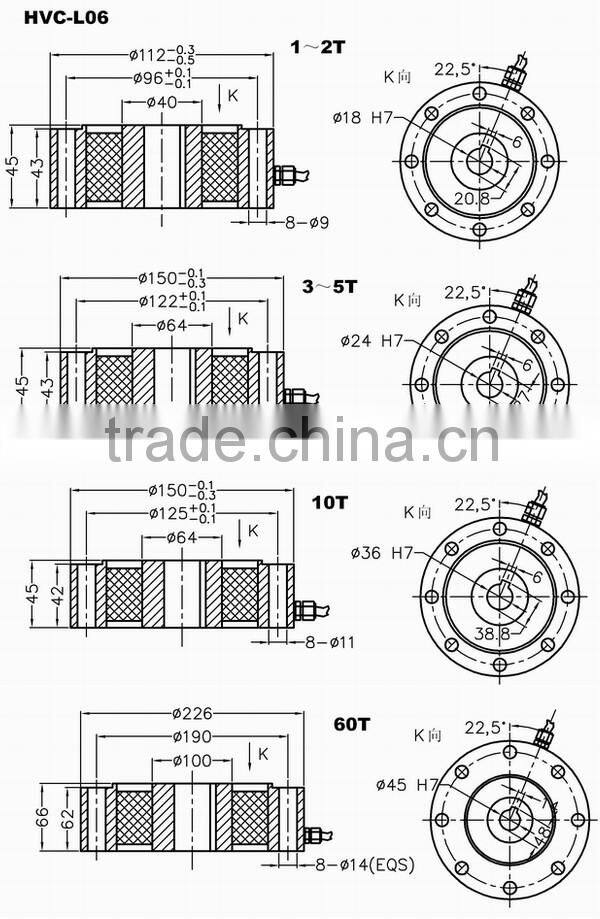

Model	SNHV-L06
Rated capacities(Emax)	1, 2, 5, 10, 60t
Sensitivity	2.0±0.005mv/v
Total error	±0.1 percentF.S
Creep(30min)	±0.05 percentF.S
Zero balance	±1 percentF.S
TCO	±0.05 percentF.S/10℃
TC SPAN	±0.05 percentF.S/10℃
Input resistance	400 ±10Ω
Output resistance	352 ±3Ω
Insulation resistance	≥5000MΩ
Temperature range,compensated	-10~+40℃
Temperature range,operating	-30~+70℃
Maximum safe overload	150 percentF.S
Ultimate overload	200 percentF.S
Excitation,recommend	10~12V DC
Excitation,maximum	15V DC
Protection Class	IP67
Construction	Alloy Steel
Cable	Length:12m(1-10t),16m(60t) Diameter:6mm
