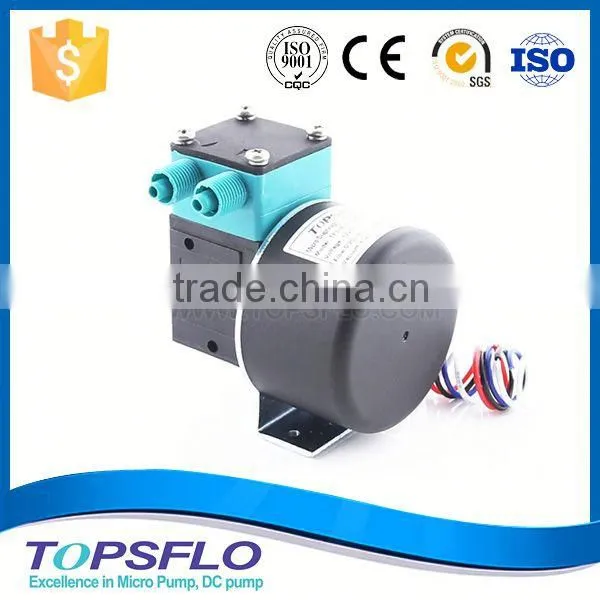

Diaphragm liquid corrosion resistance brushless dc small stable flow liquid pump for fireplace
TOPSFLO has rich experience in micro field, especially for fireplace, we have many cooperated clients in this industry use our pumps very well.

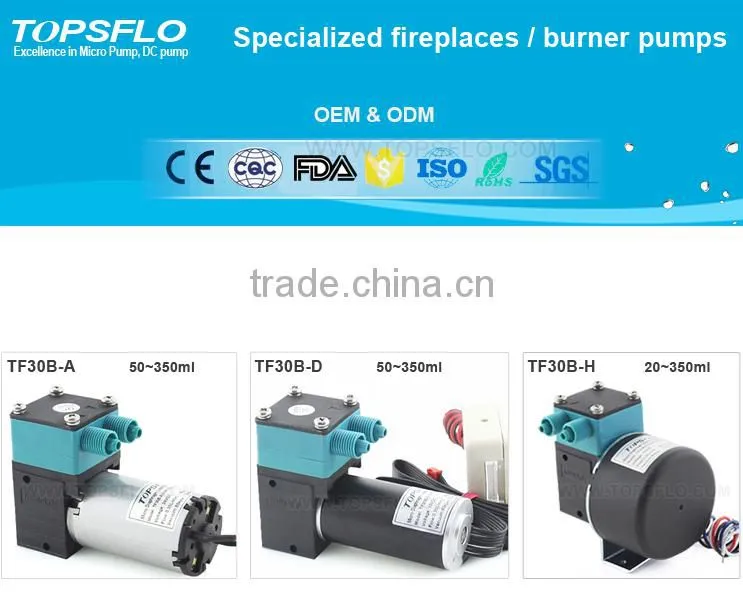

| Model | TF30B-C/D | TF30B-H | TF30B-A |
| Pump head | Nylon | Nylon | Nylon |
| Membrane | EPDM/PTFE | EPDM/PTFE | EPDM/PTFE |
| Valve | EPDM/FPM | EPDM/FPM | EPDM/FPM |
| Motor | DC coreless motor | DC brushless motor | DC brush motor |
| Lifetime | >15000hours | >10000hours | >3000hours |
| Voltage(v) | 6/12/24 | 12/24 | 6/12/24 |
| Flow rate(ml/min) | 50~350 | 20~350 | 50~350 |
| Max head | ≥10M | ≥10M | ≥10M |
| Low noise | <50dB | <50dB | <50dB |
| Size(mm) | 80*31*60 | 65*54*75 | 80*31*60 |
| Light weight(g) | 250 | 350 | 220 |

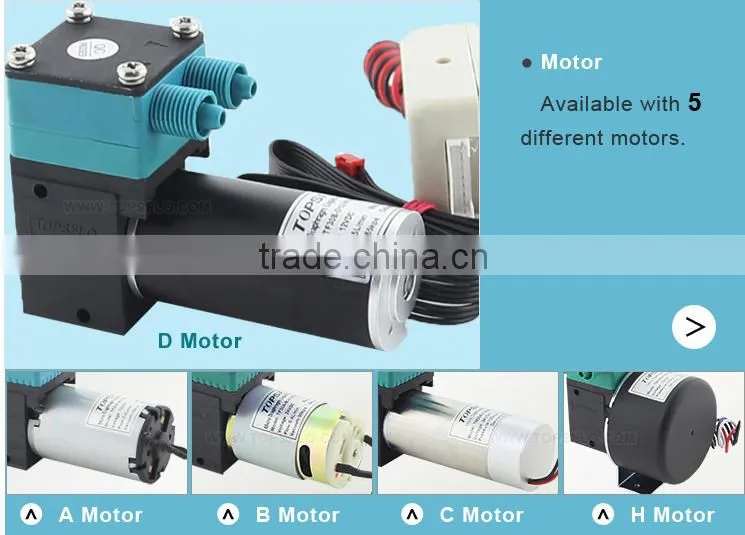

A- Premium duty brush DC motor
lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor
With outer controller With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
