Diaphragm Vacuum Pump/12V Vacuum Pump/DC Mini Vacuum Pump
US$ 72 - 88
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TOPSFLO
Model Number:
TM30A-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TM30A-B 6v 12v 24v dc Diaphragm Compressor Air PumpNegotiableMOQ: 200 Pieces -
TM22-B Small Flow Rate Diaphragm Air Pump Vacuum PumpNegotiableMOQ: 100 Pieces
-
High Performance Air Compressor Pump/mini Electric Air Compressor Pump/compressor PumpUS$ 55 - 68MOQ: 100 Pieces
-
Electric Vehicles Air PumpUS$ 88 - 90MOQ: 100 Pieces
-
Diaphragm Ipad Components Vacuum Dock PumpNegotiableMOQ: 100 Pieces
Place of Origin
China
Brand Name
TOPSFLO
Model Number
TM30A-C
Theory
Vacuum Pump
Structure
Diaphragm Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Other, Standard,customized
Fuel
Other, DC power, Battery
Pressure
Other, pressure 120kpa,vacuum 70kpa
Application
Other, Air Quality Sampling Monitors Respiration Monitors

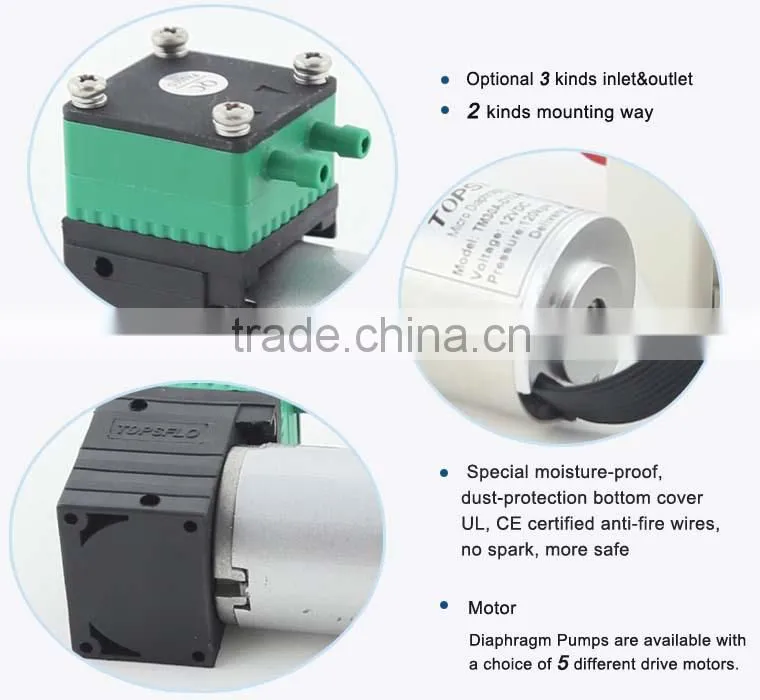

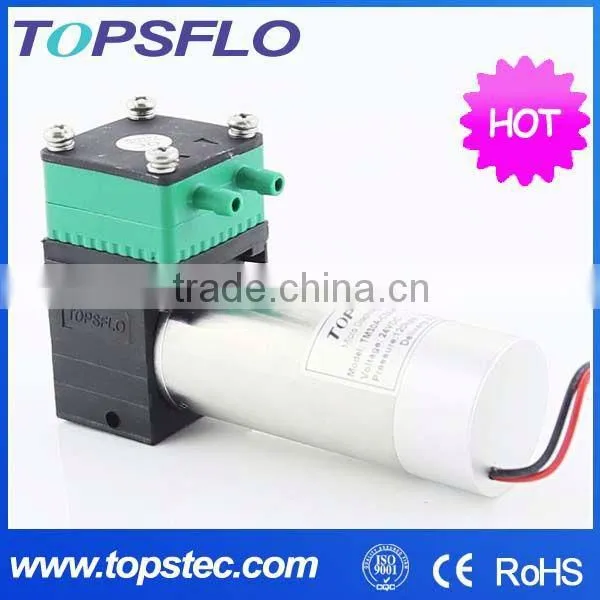

Diaphragm vacuum pump/12V vacuum pump/DC Mini vacuum pump
Product Features:
1. Highest Performance/Size Ratio
2. Performs Quieter
3. Lasts Reliably Longer
4. Uncontaminated flow
5. Little vibration
6. High level of gas tightness
7. Extreme chemical resistance
8. Optimal solution for your application
Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |

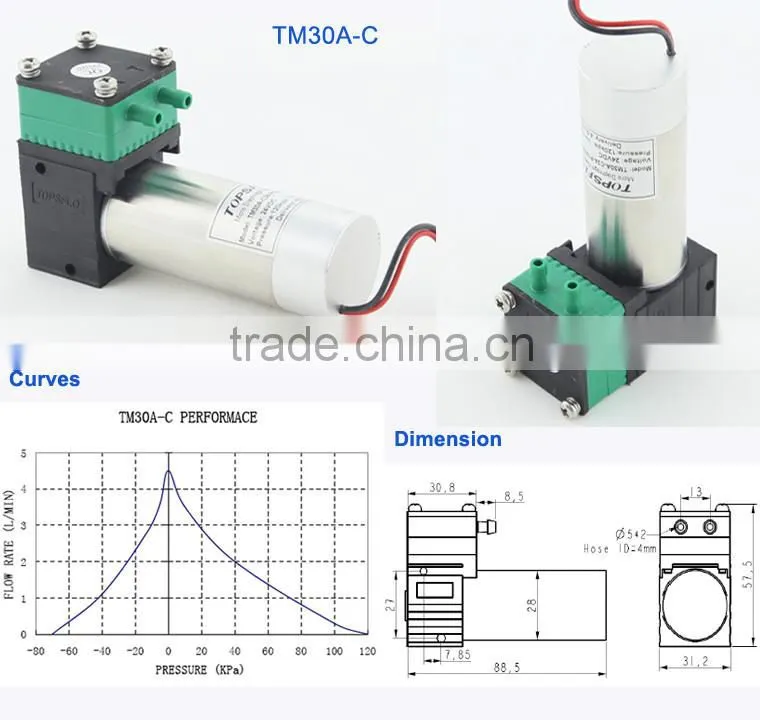

| TM30A-C | TM30A-C12-P12004 | TM30A-C12-V7004 | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 4.5 |

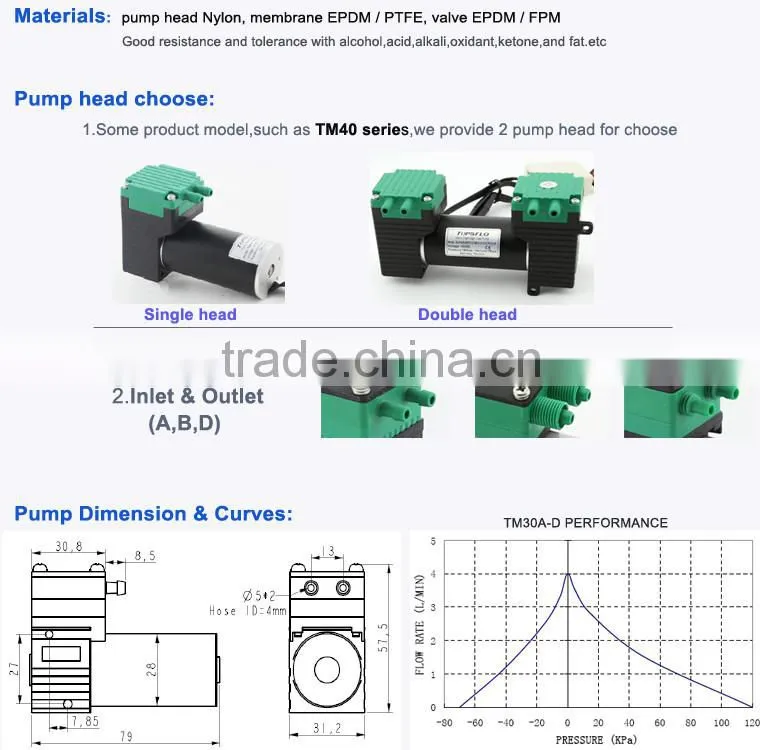

| TM30A-D | TM30A-D12-P12004 (outside controller) | TM30A-D12-V7004 ( outside controller) | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 4 |
| " P "means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
| Pump Weight:250g; Pump Size:80mm*31mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise | |||||||
| Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
2. Portable Analytical Instruments
3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors
5. Respiration Monitors
6. Gas or Odor Leak Detectors
TOPSFLO Other Micro DC Pump
|
TD5 Micro solar dc circulation pump |
| |
TS5 Micro solar dc circulation pump |
|
|
TL-B04H Micro brushless centrifugal pump |
|
MG200XK/DC24WI Micro magnetic drive gear pump |
|
TF30B-D Micro diaphragm vacuum / liquid pump |
|
TMD40-F Micro diaphragm air pump(double head) |
For more detail,please feel free contact us!
