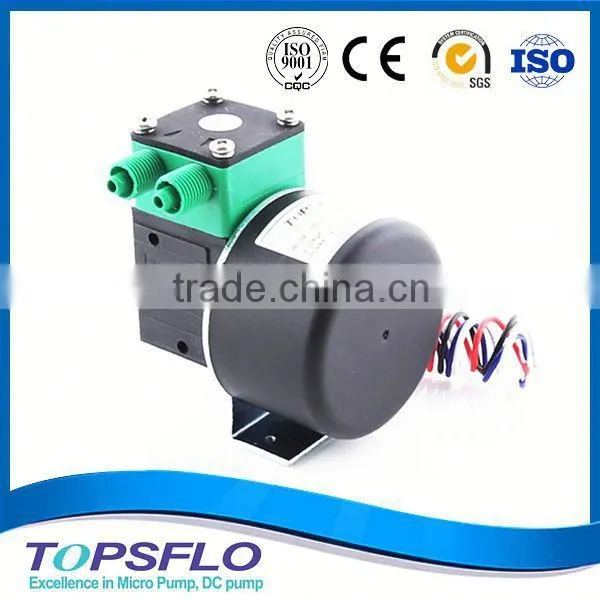

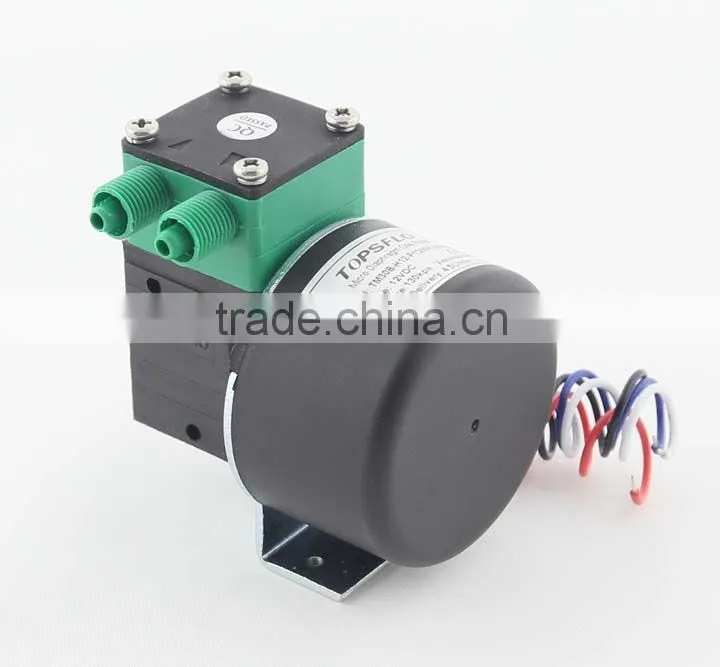

Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (mA) | (KPa) | (KPa) | (L/min) | |
| TM30B-H | TM30B-H12-P13004 |
TM30B-H12-V15505 | 12/24 | 200 | 130 | -65 | 4.5 |
|
" P " means pressure pump, " / V " means vacuum pump, "12/24" means different voltages optional.
| |||||||
| Pump Weight:350g; Pump Size:65*54*75 mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise | |||||||
| Motor type and code:" H"means brushless DC motor (lifetime reference 10,000hours) | |||||||
| Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane. | |||||||
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps
have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
Dimension(mm) : 1inch=25.4mm
A- Premium duty brush DC motor
lifetime 5,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm air/liquid pump )for over 10 years with excellent quality and competitive.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice
TOPSFLO Other Micro DC Pump
|

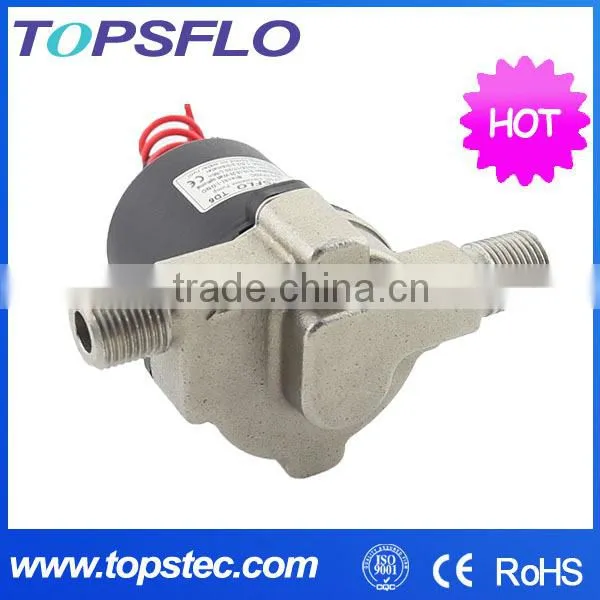

TD5 Micro solar dc circulation pump |
| |
TS5 Micro solar dc circulation pump |
|
|
TL-B04H Micro brushless centrifugal pump |
|

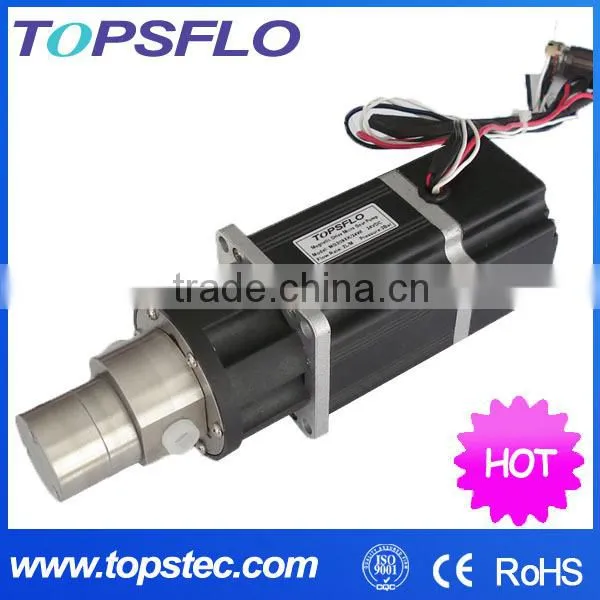

MG200XK/DC24WI Micro magnetic drive gear pump |
|

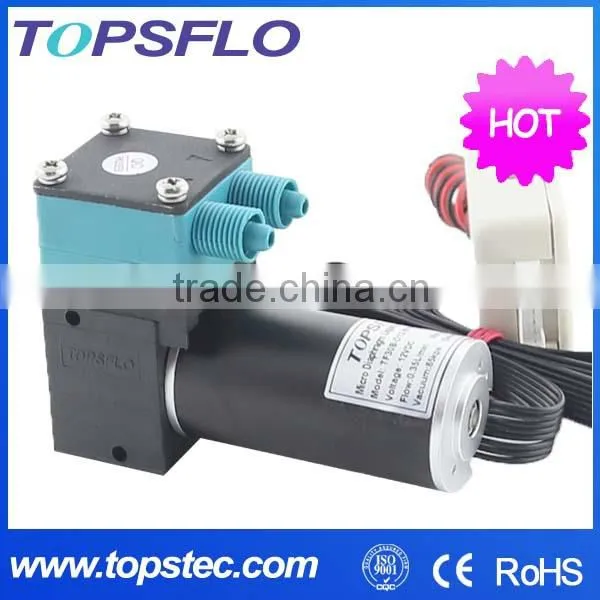

TF30B-D Micro diaphragm vacuum / liquid pump |
|

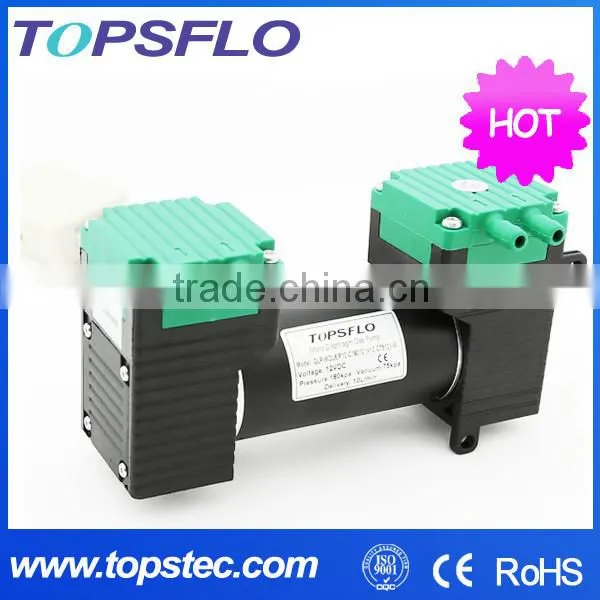

TMD40-F Micro diaphragm air pump(double head) |
