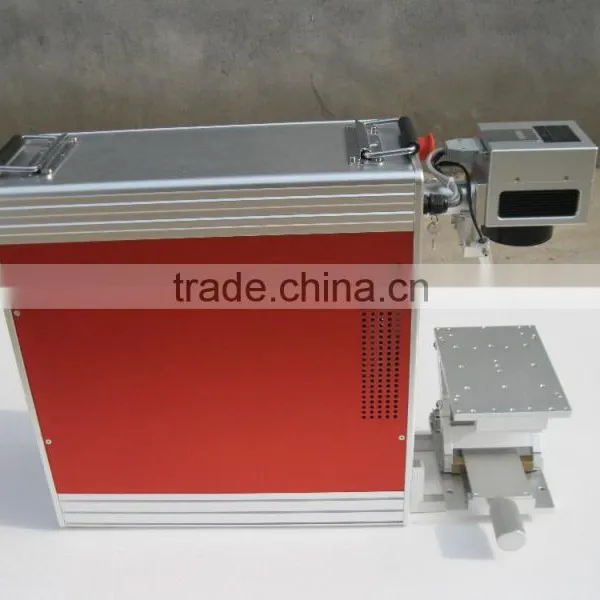

Help CenterChina Desktop Mini Laser Marker
Related Products
-
Desktop Mini Metal Laser Marking MachineNegotiableMOQ: 1 -
High Speed Co2 Galvo Laser Engraving Machine for Fabric/leatherNegotiableMOQ: 1 Unit
-
Portable Metal Co2 Laser Engraving MachineNegotiableMOQ: 1
-
Q-switch Nd Yag Laser Marking Naevus Of Ito Removal Machine 50W Of High Precision Tattoo Removal Laser EquipmentNegotiableMOQ: 1 Unit
-
Semiconductor Metal Laser Marking Machine of High PrecisionNegotiableMOQ: 1 Unit
Feature:
- Use the most advanced international laser technology, and adopt fiber laser device.
- The optical system adopts the entire seal structure, and has the laser path preview and focus indication function. More small appearance and more convenient operation.
- No need water cooling system, and low operating noise, and the high precision temperature regulation, and supply the reliable guarantee for the long time running.
Application Materials:
Common metal and alloy (iron, copper, aluminum, magnesium, zinc, etc. all metals), rare metal and alloy (gold, silver, titanium), metal oxide (all kinds), special surface treatment materials (phosphating, aluminum annihilated, plating surface), ABS material (electric appliance shell, daily necessities),
printing ink (euphotic button, printing products), epoxy resin (encapsulation and insulating layer of electronic components )
Technical Parameters:
Model |
GX02 |
|
|
Marking scope |
110mmx110mm Standard (160x160mm optional) |
Max. laser average power |
10W Standard (20W optional) |
Min. Marking line width |
0.015mm |
Max. Marking depth |
0.3mm |
Beam quality m2 |
<6 |
Wavelength |
1064nm |
Min character size |
0.2mm |
Marking speed |
7000mm/s |
Repetition precision |
±0.002mm |
Repeat frequency |
30KHz |
Software system |
Win XP + EZCAD marker system |
Optical system |
40 x 1,110 x 1,200mm |
Cooling style |
Air cooling |
Power consumption |
500kw |
Supply voltage |
AC220±10% 50Hz, 2A |
Operating temperature |
5°C—40°C, No Condensation, No Icing |
Samples:
