High Speed Co2 Galvo Laser Engraving Machine for Fabric/leather

Name: High Speed Co2 Galvo Laser Engraving Machine for Fabric/leather
Brand: ARTSIGN
SKU: 121929009

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Laser Type:

CO2

CNC or Not:

Yes

Jinan Artsign Science & Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Laser Type CO2

CNC or Not Yes

Cooling Mode Water Cooling

Control Software Win XP/7 32/64bits + EZCAD marker system

Graphic Format Supported AI, BMP, DXF, LAS

Working Accuracy ±0.01

Place of Origin Shandong, China

Brand Name ARTSIGN

Model Number GL200/160

Power(W) 40W/60W/80W/100W

Certification CE

After-sales Service Provided No overseas service provided

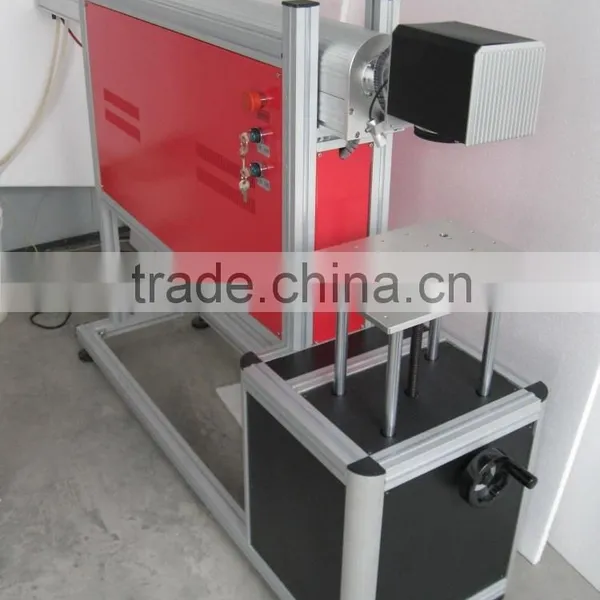

All-In-One Version CO2 Laser Marking Machine GL110

Technical parameters:

Model	GL110/DB110RF
Max. laser power(W)	40W(Standard) , 60W,80W, 100W(optional)
Laser tube Type	Co2 glass tube (standard), Chinese made CO2 RF tube 25W/Imported CO2 RF tube Coherent 30W/50W (optional)
Laser wave-length(um)	10.6um
Laser repetition frequency	≤25KHZ
Standard marking area(mm)	110110mm(Standard) 160160/220220/ 300300mm/400*400mm(optional)
Up and down(mm)	Manual up and down 100-200mm optional
Marking depth(mm)	≤3mm
Marking speed(mm)	≤3000mm/s
Min line width(mm)	0.2mm
Min character size(mm):	0.5mm
Repetition accuracy (mm)	±0.01
Power consumed(KW):	<1200W
Voltage:	220V 50HZ 8A
Cooling system:	Water cooling
Software	Win XP/7 32/64bits + EZCAD marker system
Operating temperature	0-30℃
Machine Weight	100KG
Machine Size	19504101110MM
Gross Weight	150KG
Packing Size	20405401250MM

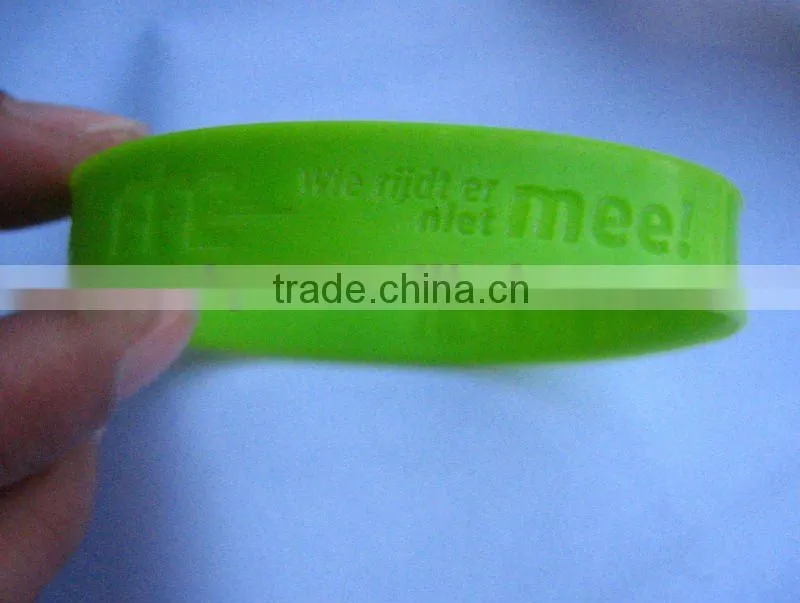

Applicable industry: Widely used in leather, food, beverage, cloth, electronic ,meter, communication instruments, package and other industries, can be combined with streamline for online marking
Applicable Materials: Can be used in wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials, and coated metal.
