H63 Large Stable 5 Axis Machining Center

H63 Large Stable 5 Axis Machining Center thumbnail-1
H63 Large Stable 5 Axis Machining Center photo-1
US$ 92,840 - 105,219 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Hankui International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
Place of Origin Shandong, China
Brand Name HANKUI
Model Number H63
Voltage Customer's Requirement
Power(W) 15~22 kw
Dimension(L*W*H) 4425x2890x2685 mm
Weight 9000kg
Certification ISO CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Export Products

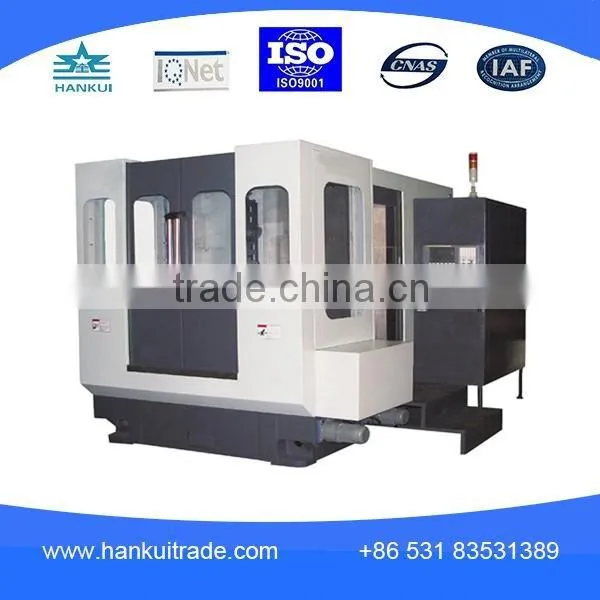

H63 large stable 5 axis machining center





H63 large stable 5 axis machining center



1.The whole lathe bed, column, workbench, wagen, spindle box and other big parts are all of

high quality resin sand molding and high strength cast iron, which make the precision of lathe

with high rigidity and long term stability. The interior of lathe is decorated with the triangular

stiffener, which can make the lathe bed more stable, so that can make the precision of lathe

with high rigidity and stability for a long time



2.The heavy duty roller guide which made in Taiwan has strong rigidity, and good dynamic

performance. The imported screw which has large diameter is cooperated with the international

advantage lead screw auxiliary support system . It is of compact structure, smooth movement,

and high accuracy. So the machine driven system is of high rigidity and high stability.



3.The whole lathe bed which is optimization designed, one piece inverted, and T type structure

has the good rigidity, perfect dynamic characteristics. It is suitable for the heavy cutting, and

also has high precision of stability and excellent vibration absorbing ability.







Product-related Data







Item

H63

H63/1

worktable

Worktable size

630×700mm

630×700mm



Worktable quantity

1

2



Indexing unit

1°X360

1°X360



Max. load

950kg

950kg



Max. workpiece swing dia.

820mm

820mm

Travel

Reverse T type constructure

X axis travel

1050mm

1050mm





Y axis Headstock travel

750mm

750mm





Z axis column travel

900mm

900mm

Spindle  BT50

speed

6000rpm

6000rpm



Spindle center line to table surface

120~870mm

0~750mm



Distance between spindle nose to table center

130~1030mm

130~1030mm

Rapid speed

X, Y, Z axis

36m/min

36m/min



B axis

10r/min

10r/min

Positioning

accuracy

X, Y, Z axis

0.01

0.01



B axis

10″

10″

Repositioning

accuracy

X, Y, Z axis

0.006

0.006



B axis

5″

5″

controller

FANUC(standard),             SIEMENS                                   Mitsubishi                                 KND(optional)

X axis servo motor

22~30N.m

22~30N.m





Y axis servo motor

30N.m

30N.m





Z axis servo motor

22~30N.m

22~30N.m





B axis servo motor

8N.m

12N.m





Spindle servo motor

15~22KW

15~22KW





APC servo motor

8N.m



Dimension





4425×2890×2685

3210×2890×2685

G.W





9000kg

10500kg
Packaging & Shipping

Transport Information





H63 large stable 5 axis machining center





Packaging Information











Packaging Detail:Wooden Case,Standard packing for H63 large stable 5 axis machining center.





Delivery Detail:Within 35 working days after receiving your deposit.





According to the customer's requirements.



Our Services

If you need to know more about H63 large stable 5 axis machining center please contact with us!





H63 large stable 5 axis machining center

Company Information

Factory Information





H63 large stable 5 axis machining center







Our company is specializing in the production of CNC for 2 decades, and we have passed the

ISO9000 certification and the right of import and export. Our company has owned 10 patent

technologies at present, including the appearance, design, the utility model of machine and so

on. And our company is a provincial high-tech enterprises.



Without any doubt, all of our items are with excellent quality and reasonable price, we can

product different kinds of machines according to your specific requirements, we hope that we

can help you, and enter business with you!
