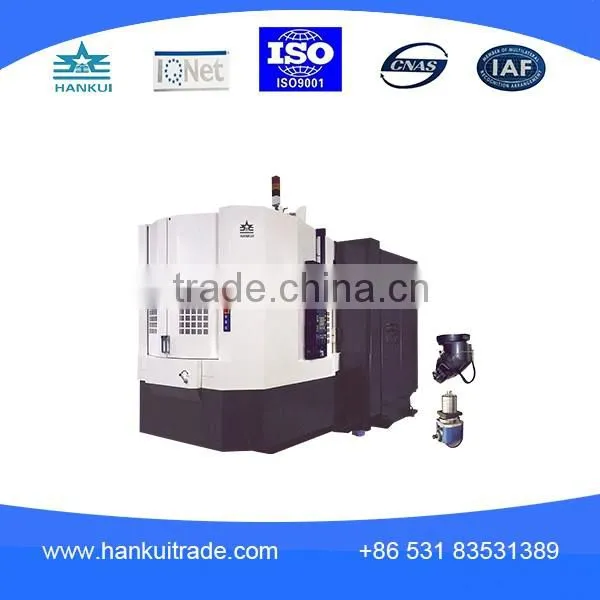

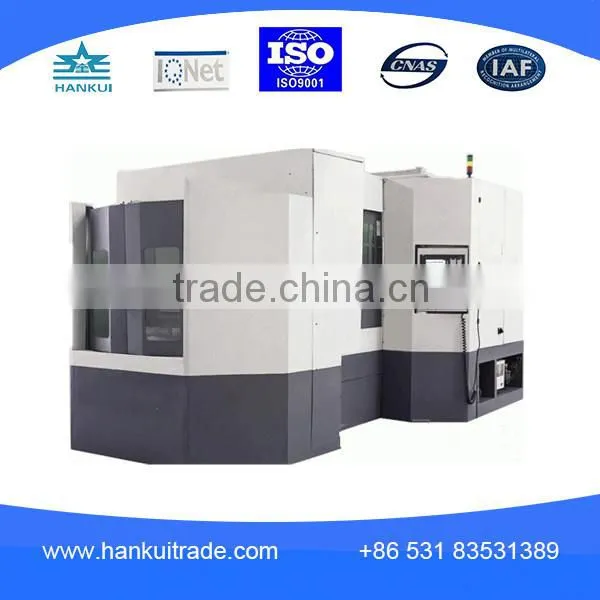

H100/1 manufacturers Original horizontal machining center of Manufacturing
1.The whole lathe is rigidity, and is convenient and flexible for operation. It can process
horizontal milling, drilling, expanding, boring, tapping and so on. It is widely used, especially
suitable for processing all kinds of box type parts which are complicated shape . And it is more
suitable for the batch processing of the workshop's production of enterprise.
2.The whole lathe bed, column, workbench, wagen, spindle box and other big parts are all of
high quality resin sand molding and high strength cast iron, which make the precision of lathe
with high rigidity and long term stability. The interior of lathe is decorated with the triangular
stiffener, which can make the lathe bed more stable, so that can make the precision of lathe
with high rigidity and stability for a long time.
3.The high performance spindle which made in Taiwan, adopts the lubrication to lubricate, it
can make the spindle bearings get constant and reliable lubrication. It is not only environmentally
friendly, but also free maintenance, and has the excellent performance.
Product-related Data
Item |
H100 |
H100/1 |
||
worktable |
Worktable size |
1000mmX1000mm |
1000mmX1000mm |
|
|
Worktable quantity |
1 |
2 |
|
|
Indexing unit |
1°X360 |
1°X360 |
|
|
Max. load |
2000kg |
2000kg |
|
|
Max. workpiece swing dia. |
2000mm |
2000mm |
|
Travel |
Reverse T type constructure |
X axis travel |
2200mm |
2200mm |
|
|
Y axis Headstock travel |
1300mm |
1300mm |
|
|
Z axis column travel |
1200mm |
1200mm |
Spindle BT50 |
speed |
6000rpm |
6000rpm |
|
|
Spindle center line to table surface |
120~1450mm |
0~1300mm |
|
|
Distance between spindle nose to table center |
300~1500mm |
300~1500mm |
|
Rapid speed |
X, Y, Z axis |
36m/min |
36m/min |
|
|
B axis |
10r/min |
10r/min |
|
|
Positioning accuracy |
X, Y, Z axis |
0.01 |
0.01 |
|
|
B axis |
12″ |
12″ |
|
|
Repositioning accuracy |
X, Y, Z axis |
0.008 |
0.008 |
|
|
B axis |
6″ |
6″ |
|
controller |
FANUC(standard), SIEMENS Mitsubishi KND(optional) |
X axis servo motor |
30N.m |
30N.m |
|
|
Y axis servo motor |
30N.m |
30N.m |
|
|
Z axis servo motor |
30N.m |
30N.m |
|
|
B axis servo motor |
12N.m |
12N.m |
|
|
APC servo motor |
|
22N.m |
Dimension |
|
4325X3880X4000 |
6330X3880X4000 |
|
G.W |
|
20000kg |
25000kg |
|
Transport Information
Packaging Information
Packaging Detail:Wooden Case,Standard packing for H100/1 manufacturers Original horizontal machining center of Manufacturing.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
If you need to know more about H100/1 manufacturers Original horizontal machining center of Manufacturing please contact with us!
Factory Information
Our company is specializing in the production of CNC for 2 decades, and we have passed the
ISO9000 certification and the right of import and export. Our company has owned 10 patent
technologies at present, including the appearance, design, the utility model of machine and so
on. And our company is a provincial high-tech enterprises.
Without any doubt, all of our items are with excellent quality and reasonable price, we can
product different kinds of machines according to your specific requirements, we hope that we
can help you, and enter business with you!
