Product Details
| Condition: | New | CNC or Not: | CNC | Drilling Speed: | 15000 rpm |
| Place of Origin: | Shandong, China | Brand Name: | Jian HK | Model Number: | DG500Z |
| Voltage: | 380V or other | Power(W): | 5.5 KW | Dimension(L*W*H): | 1500*1600*1900 mm |
| Weight: | 3000kg | Certification: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

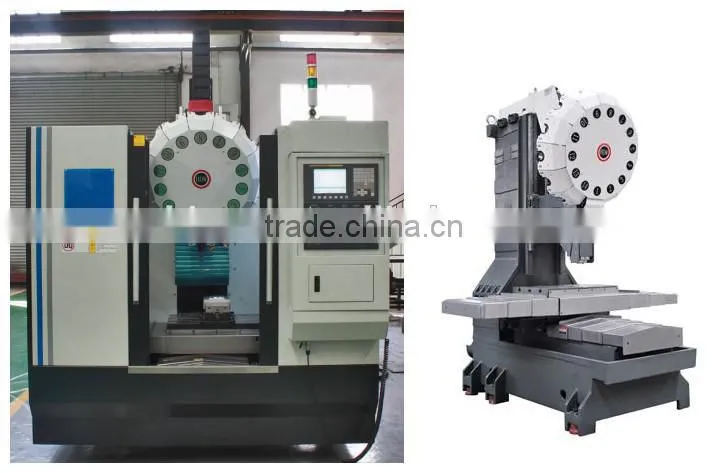

CNC Drilling machine
Applications & Features
Vertical drilling machining center, the high speed drilling and tapping machine tool, which is dedicated to parts processing industries. It meets the requirement of both the high speed drilling, tapping and high speed milling, cutting, goes specially well with the IT industry and auto parts processing industry. Features with good rigidity, symmetry structure, fast and dynamic respond, high precision, good stability and easy to operate, cover the procedures of vertical milling, drilling, chambering, boring and tapping, etc, widely used in varieties of applications.
Drilling machine has the dominated advantage of multi-bore multi-operation to sheet metal parts and to moderate and small box-parts in its top surface. Applicable to precision parts processing in communication and mobile phone industry.
Model of machine tool | unit | DG500Z | |
Worktable | Table size | mm² | 650×400 |
T-slot | mm | 3-14×125 | |
Loading capacity | Kg | 250 | |
Travels | X axis | mm | 500 |
Y axis | 400 | ||
Z axis | 300 | ||
Spindle center to column | 425 | ||
Spindle nose to worktable | 150-450 | ||
Spindle | Spindle taper |
| BT30 |
Spindle sleeve |
| Φ95 | |
Drive model |
| Direct connection | |
Spindle speed | rpm | 15000 | |
Feed | Cutting feed | mm/min | 20-6000 |
Rapid speed | 48000 | ||
Guide way |
| Linear way | |
Ball screw |
| XY:2816,Z:3216 | |
Tool magazine | Form of tool magazine |
| Arm type |
Capacity of tool magazine | Tools | 16 | |
Tool change time(tool to tool) | sec(") | 1.6 | |
Max. tool weight | kg | 3 | |
Motor | Spindle motor | kw | 5.5 |
Servo motor | 1.8/1.8/3.0 | ||
Cooling motor | 0.76 | ||
Performance | X/Y/Z Axis Positioning | mm | 0.01 |
X/Y/Z Axis Repeatability | mm | 0.006 | |
Power consumption | KVA | 15 | |
Outer dimension(length*width*height) | m | 1.5×1.6×1.9 | |
Machine gross weight | t | 3 | |
