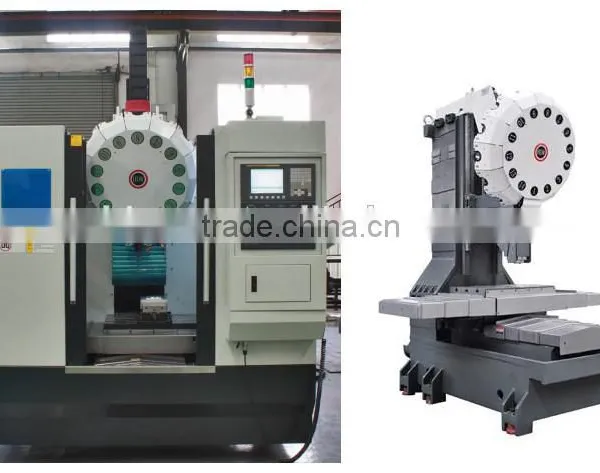

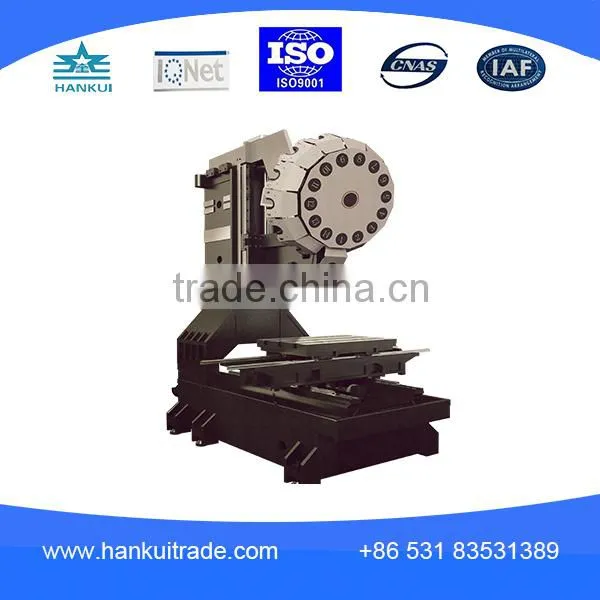

High effect direct manufacturer vertical drilling machine price
Applications & Features
vertical drilling machine price , the high speed drilling and
tapping machine tool, which is dedicated to parts processing industries.
It meets the requirement of both the high speed drilling, tapping
and high speed milling, cutting, goes specially well with the IT industry
and auto parts processing industry. Features with good rigidity,
symmetry structure, fast and dynamic respond, high precision,
good stability and easy to operate, cover the procedures of
vertical milling, drilling, chambering, boring and tapping, etc,
widely used in varieties of applications.
Drilling machine has the dominated advantage of multi-bore
multi-operation to sheet metal parts and to moderate and
small box-parts in its top surface. Applicable to precision parts
processing in communication and mobile phone industry.
Model of machine tool |
unit |
DG500Z |
|
Worktable |
Table size |
mm² |
650×400 |
T-slot |
mm |
3-14×125 |
|
Loading capacity |
Kg |
250 |
|
Travels |
X axis |
mm |
500 |
Y axis |
400 |
||
Z axis |
300 |
||
Spindle center to column |
425 |
||
Spindle nose to worktable |
150-450 |
||
Spindle |
Spindle taper |
|
BT30 |
Spindle sleeve |
|
Φ95 |
|
Drive model |
|
Direct connection |
|
Spindle speed |
rpm |
15000 |
|
Feed |
Cutting feed |
mm/min |
20-6000 |
Rapid speed |
48000 |
||
Guide way |
|
Linear way |
|
Ball screw |
|
XY:2816,Z:3216 |
|
Tool magazine |
Form of tool magazine |
|
Arm type |
Capacity of tool magazine |
Tools |
16 |
|
Tool change time(tool to tool) |
sec(") |
1.6 |
|
Max. tool weight |
kg |
3 |
|
Motor |
Spindle motor |
kw |
5.5 |
Servo motor |
1.8/1.8/3.0 |
||
Cooling motor |
0.76 |
||
Performance |
X/Y/Z Axis Positioning |
mm |
0.01 |
|
X/Y/Z Axis Repeatability |
mm |
0.006 |
|
Power consumption |
KVA |
15 |
|
Outer dimension(length*width*height) |
m |
1.5×1.6×1.9 |
|
Machine gross weight |
t |
3 |
|
High effect direct manufacturer vertical drilling machine price
High effect direct manufacturer vertical drilling machine price
|
Direct factory
Short delivery time
High configuration
More competitive price
|
|
|
CNC machines (Pipe threading machine)
CNC Lathes (Flat bed / Slant bed / vertical)
Machines centers (Vertical, Gantry, Horizontal) |
|

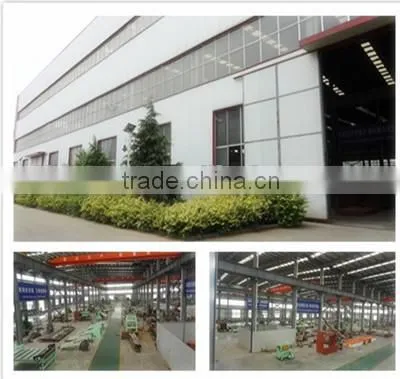

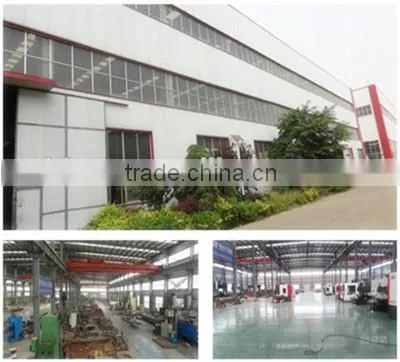

Factory production capacity
|
|
ISO9001 professional manufacturer of CNC machines, CNC Lathes, slant bed types, flat bed types, Machines centers (vertical, gantry, horizontal) with fixed column or movable column |
|
Engineers are the original Ji'nan first machine tool factory employees, with 20 years of experience . |
|
Supply to you product with high configuration and perfect service at competitive price |
High effect direct manufacturer vertical drilling machine price
High effect direct manufacturer vertical drilling machine price
