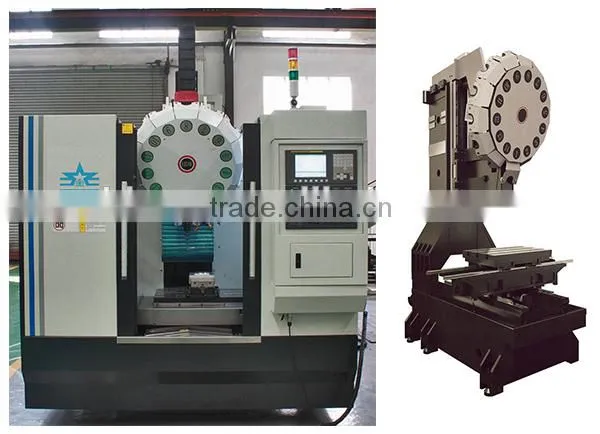

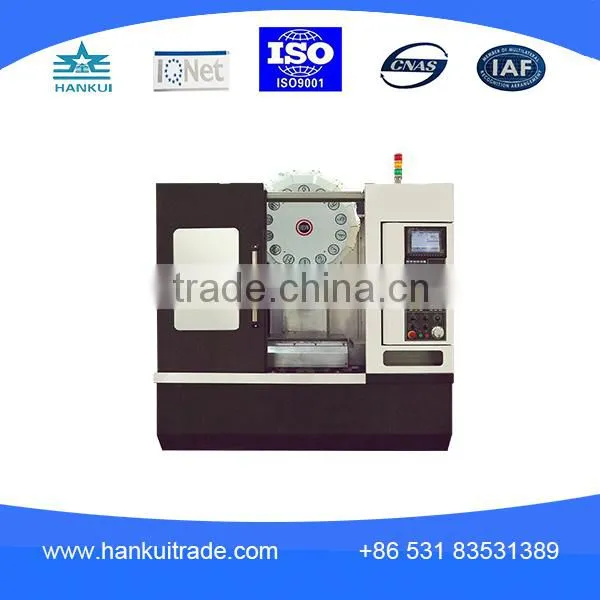

VMC Tapper and drilling machine VMC-ZG500Z
1. It meets the requirement of both the high speed drilling, tapping and high speed milling, cutting, goes specially well with the IT industry and auto parts processing industry.
2. Features with good rigidity, symmetry structure, fast and dynamic respond, high precision, good stability and easy to operate, cover the procedures of vertical milling, drilling, chambering, boring and tapping, etc, widely used in varieties of applications.
The main configuration
Resin sand casting
Direct spindle (Taiwan)
Ball screw (Taiwan)
Pressure cylinder (Taiwan)
Linear slide rail (Taiwan)
Bearing (NSK)
The electric lubrication system
Cooling water system
One set air cooling pipes
The spindle synchronous belt wheel and belt
Beijing KND , Japan FANUC,OR Mitsubishi (optional)
Water coolant through spindle center, oil cooler (optional)
Model of machine tool |
VMC-ZG500Z |
||
Project |
Unit |
Specification |
|
Worktable |
Table size |
mm² |
650×400 |
T-slot |
mm |
3-14×125 |
|
Max.weight on table |
Kg |
250 |
|
Travels |
X axis travels |
mm |
500 |
Y axis travels |
400 |
||
Z axis travels |
300 |
||
Spindle center to column |
425 |
||
Spindle nose to worktable |
150-450 |
||
Spindle |
Spindle taper |
|
BT30 |
Spindle sleeve |
|
Φ95 |
|
Drive model |
|
Direct connection |
|
Spindle speed |
rpm |
15000 |
|
Feed |
Cutting feed |
mm/min |
20-6000 |
Rapid speed |
48000 |
||
Guide way |
|
Linear way |
|
Ball screw |
|
XY:2816,Z:3216 |
|
Tool magazine |
Form of tool magazine |
|
Arm type |
Capacity of tool magazine |
Tools |
16 |
|
Tool change time(tool to tool) |
sec(") |
1.6 |
|
Max. tool weight |
kg |
3 |
|
Motor |
Spindle motor |
kw |
5.5 |
Servo motor |
1.8/1.8/3.0 |
||
Cooling motor |
0.76 |
||
accuracy |
X/Y/Z Axis Positioning |
mm |
0.01 |
X/Y/Z Axis Repeatability |
mm |
0.006 |
|
Air pressure required |
kgf/cm² |
≥6 |
|
Power consumption |
KVA |
15 |
|
Controller |
|
Mitsu M70B |
|
Outer dimension(length*width*height) |
m |
1.5×1.6×1.9 |
|
Machine gross weight |
t |
3 |
|

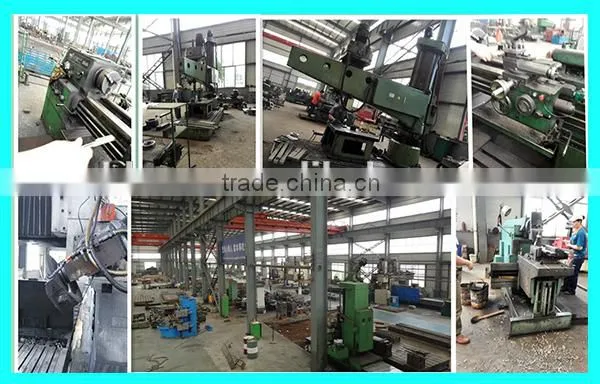

1. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
2. The main products are horizontal / vertical/ gantry machining center, boring and milling machine, slant bed CNC tuning lathe, CNC vertical turning lathe, Drilling and tapper center etc.
3. We have passed the ISO9001:2008 international quality management system authentication.
1. MOQ
1 set
2. Delivery Time
Some of the products are in stock and others need about 2 month or more .
3. Warranty
13 month after the B/L date.
4. Training and maintenance
After the contact signed, you can send someone to our company for professional operation traning.
CERTIFICATE
