VMC-ZG500Z High precision cheap VMC Drilling and Tapping Center
Thanks for your attention for our products!!!
Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises.

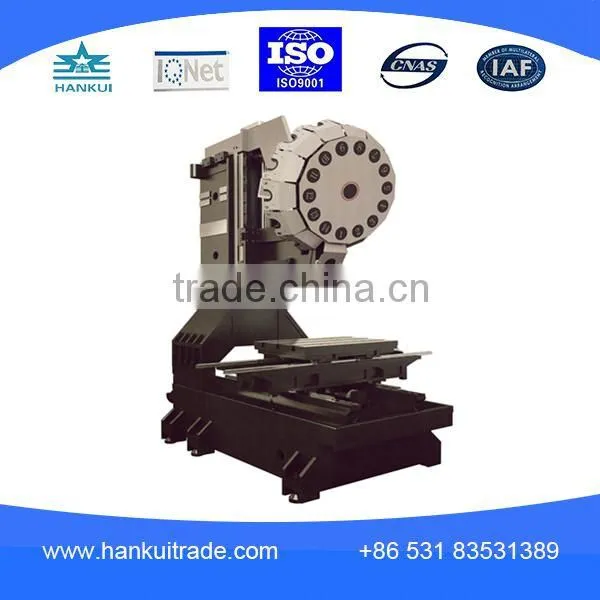

The vertical drilling and tapping center is a high speed drilling machine tool which is special for parts manufacturing. It can meet the high speed drilling and tapping demands as well as the high-speed milling process , especially suitable for IT and automotive parts processing industry .The machine is of good rigidity, symmetrical structure, fast dynamic response, high accuracy, good stability and easy operation. It can finish milling, drilling, expanding, boring, tapping and so on. Drilling and tapping center in a single piece, mass production for small box parts of the top of the hole or plate type parts of the hole on the surface of the porous process of processing . It is applicable for mass processing of precision parts in mobile phone industry.
The characteristics :
The model of machine parts is made of aluminum and wood combined and polished by resin sand . The workbench is made of HT250 cast iron and other parts are made of HT250 cast iron . After two artificial aging treatment , they are good stability , high strength , accuracy stable and reliable .
The spindle of the machine tool is BT30 and the full set from Taiwan professional supporting manufacturers ( POSA or KENTURN ) , the important parts are processed by strengthening . With the world famous brand P4 special spindle bearing and using KLUBRNBU15 grease lubrication ,the whole spindle set is assembled in the constant temperature condition . Then there would be computer balance calibration and run the test to make the whole set of spindle long life and high reliability.
The ball screw of X,Y,Z three axis are C3 level double nut pre tightening ball screw made by Taiwan professional auxiliary manufacturers (HIWIN) . Both ends of the ball screw rod bearings are P4 level 60 contact angle and special for the ball screw , and three axis ball screw are pre stretched , thus ensuring the transmission of high rigidity, stable and reliable .
The three direction of the machine tool is the overload linear guide , ensure dynamic response of machine tool , overcome the problem of large friction force of the rail surface of hard rail machine tool and the resulting problem of creep. At the same time to solve the problem of ball guide carrying capacity insufficient and cutting ability not enough .

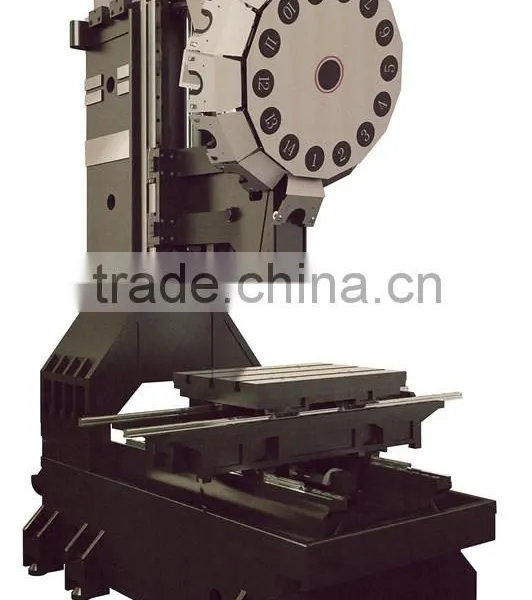

The lathe bed, column, table, saddle, spindle box pieces are made of high strength cast iron and polished by high quality resin sand, so make the machine tool to get high rigidity and stability of the long term . The internal layout of triangular stiffener makes the bed heavy so that the machine can get high rigidity and stability.

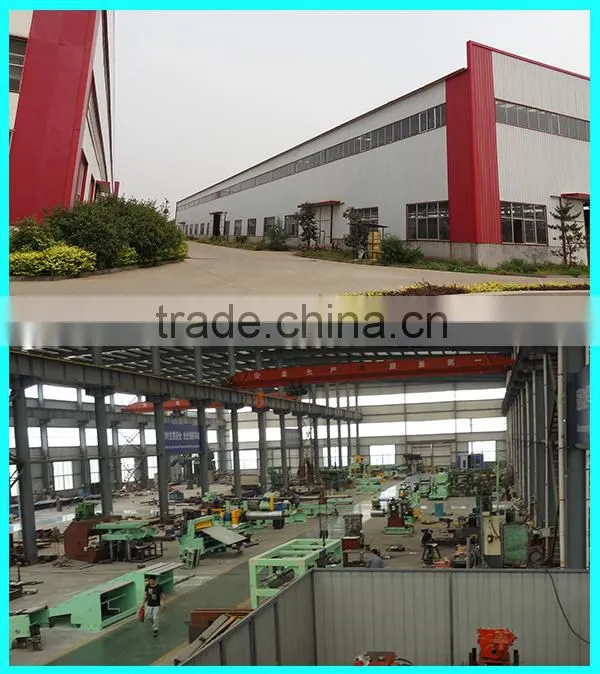

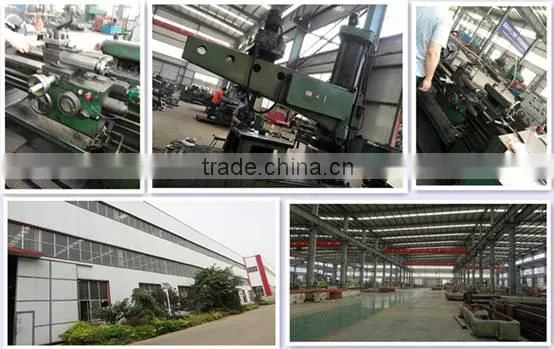

The Workshop photos:
The main technical parameters:
| Model of machine tool | VMC-ZG500Z | ||
| Project | Unit | Specification | |
| Worktable | Table size | mm² | 650×400 |
| T-slot | mm | 3-14×125 | |
| Max.weight on table | Kg | 250 | |
| Travels | X axis travels | mm | 500 |
| Y axis travels | 400 | ||
| Z axis travels | 300 | ||
| Spindle center to column | 425 | ||
| Spindle nose to worktable | 150-450 | ||
| Spindle | Spindle taper | BT30 | |
| Spindle sleeve | Φ95 | ||
| Drive model | Direct connection | ||
| Spindle speed | rpm | 15000 | |
| Feed | Cutting feed | mm/min | 20-6000 |
| Rapid speed | 48000 | ||
| Guide way | Linear way | ||
| Ball screw | XY:2816,Z:3216 | ||
| Tool magazine |
Form of tool magazine | Arm type | |
| Capacity of tool magazine | Tools |
16 | |
| Tool change time(tool to tool) | sec(") | 1.6 | |
| Max.tool weight | kg | 3 | |
| Motor |
Spindle motor | kw | 5.5 |
| Servo motor | 1.8/1.8/3.0 | ||
| Cooling motor | 0.76 | ||
| accuracy | X/Y/Z Axis Positioning | mm | 0.01 |
| X/Y/Z Axis Repeatability |
mm | 0.006 | |
| Air pressure required | kgf/cm² | ≥6 | |
| Power consumption | KVA | 15 | |
| Controller | Mitsu M70B | ||
| Outer dimension(length*width*height) | m | 1.5×1.6×1.9 | |
| Machine gross weight | t | 3 | |
We transport the machine according to customer's specific requirements.
Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises. we are the manufacturer and exporter of CNC lathe, machine center, milling machine, boring machine and so on, without any doubt, all of our products are with excellent quality and lowest price, because we are the manufacturer, we are the source! sincerely hope we could help you!
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
