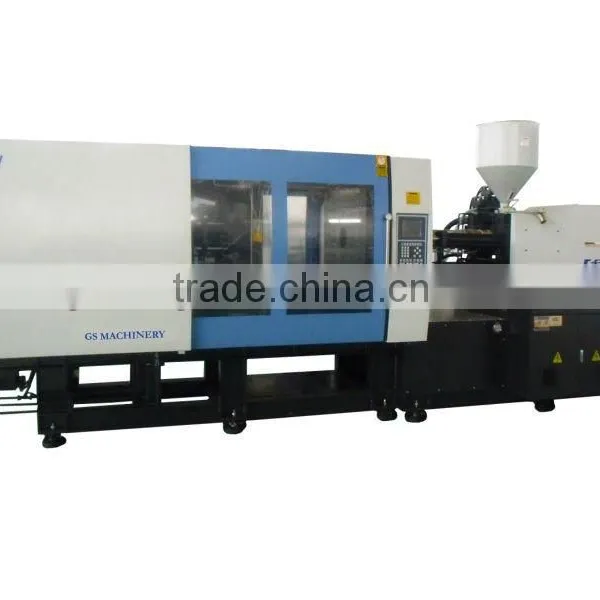

Plastic Injection Machine for PVC Pipe Fittings

Plastic Injection Machine for PVC Pipe Fittings thumbnail-1
Plastic Injection Machine for PVC Pipe Fittings photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Contact Supplier Request Quote Chat Now
Shanghai GS Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Preform Injection
Style Horizontal
Brand Name GS
Model Number GS388
Place of Origin Shanghai, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 1400g
Injection Rate 328g/s
Clamping Force 3880KN
Opening Stroke 700mm

Specifications

Plastic Injection Machine with variable pump controlling system is able to save 30%-50% electric power based on fixed Pump



Specification:

      GS388
A B C D
INJECTION UNIT Screw Diameter mm 65 70 75 80
Screw L/D Ratio L/D 21.5 20 18.7 17.5
Shot Size(Theoretical) cm3 1068 1239 1423 1619
Injection Weight g 972 1127 1295 1473
Injection Rate g/s 292 339 389 443
Plasticizing Capacity g/s 38.2 44.9 51.4 58.7
Injection Pressure Mpa 213 184 160 141
Screw Speed rpm 0-185
CLAMPING UNIT Clamp Tonnage KN 3800
Toggle Stroke mm 700
Space Between Tie Bars mm 730*730
Max.Mould Height mm 730
Min.Mould Height mm 280
Ejector Stroke mm 180
Ejector Tonnage KN 110
Ejector Number piece 13
OTHERS Max.Pump Pressure Mpa 17.5
Pump motor Power KW 37
Heater Power KW 24.85
Machine Dimension(L*W*H) m 7.36*1.96*2.15
Machine Weight t 15
Hopper Capacity Kg 50
Oil Tank Capacity L 750
