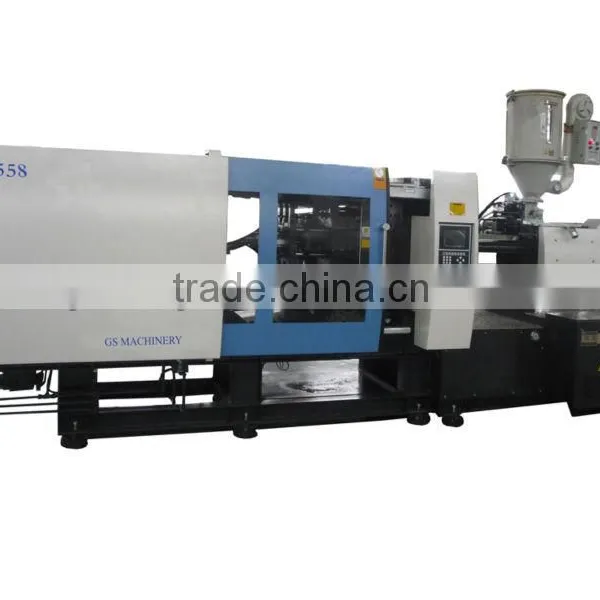

Help CenterInjection Molding Machine for PET Preform
Related Products
Specifications
MouldingV Series plastic injection molding machines able to save 30%-50% electric power consumption.
MouldingMoulding
The key advantages of GSV series plastic injection machine:
- Save of energy
- High speed system response and short molding cycle
- Largely decrease system oil temperature
- Reduce mold open and close crash to extend service time of machine and mold tool.
- To extend service life of oil piping system, to reduce maintenance possibilities and save maintenance cost.
- Higher requirement for hydraulic oil; provides with imported high quality oil strainer.
| GS558 | A | B | C | D | |
| Screw Diameter | mm | 80 | 85 | 90 | 100 |
| Screw L/D Ratio | L/D | 21.2 | 20 | 18 | 17.6 |
| Injection Pressure | Mpa | 201 | 178.6 | 159.3 | 129 |
| Shot Size(Theoretical) | cm3 | 2362.5 | 2667 | 2990 | 3691.4 |
| Injection Weight | g | 2150 | 2427 | 2721 | 3359 |
| Injection Rate | g/s | 505 | 568 | 700 | 832 |
| Plasticizing Capacity | g/s | 97.4 | 109.2 | 134.8 | 163.1 |
| Screw Speed | rpm | 0-130 | |||
| Injection Stroke | mm | 470 | |||
| Clamp Tonnage | KN | 5580 | |||
| Toggle Stroke | mm | 850 | |||
| Space Between Tie Bars | mm | 840*830 | |||
| Max.Mould Height | mm | 850 | |||
| Min.Mould Height | mm | 320 | |||
| Daylight Opening | mm | 1700 | |||
| Ejector Tonnage | KN | 158 | |||
| Ejector Stroke | mm | 220 | |||
| Ejector Number | piece | 17 | |||
| System Pressure | Mpa | 16 | |||
| Pump motor Power | KW | 55 | |||
| Heater Power | KW | 44.45 | |||
| Hopper Capacity | Kg | 100 | |||
| Machine Dimension(L*W*H) | m | 8.63*2.27*2.45 | |||
| Oil Tank Capacity | L | 640 | |||
| Machine Weight | t | 22 | |||
GSV variable pump drive injection molding machine is precision and energy-saving series by GuangSu, assumers perfect combination of GuangSu state-of-the-art machine processing together with internationally advanced variable pump control technology.
This type of injection molding machine adopt high responsive proportional variable pump system thus to enable the high mach of power between hydraulic output and machine effective operation which avoids energy loss from high pressure throttle flow. Compared with normal constant pump drive machine, the variable pump drive machine is able to save electric power consumption by 30% up to 50%.
In addition, the machine less heating enables save of cooling water by 30%, debasing peripheral noise and extension of service life of hydraulic sealing parts and oil to minimize operation and maintenance cost and meanwhile to meet the strict international environment protective policy.
GuangSu GSV Series variable pump drive injection molding machine is sure to bring for customers incomparable cost efficiency advantages.
