Specifications
Galvanized welding machine for can body
1.16 years experience
2. delivery on time
3. 1 year guarantee
Main technical parameter
| Model | FN2000-A |
| Input power | 3N380V/50HZ 10KVA |
| Welding speed | 5~10m/min |
| Productivity(cpm) | 10~20 |
| Can Diameter(mm) | Φ105~Φ300 |
| Can Height(mm) | <=400(500) |
| Overlap(mm) | 3~4 |
| Material thickness(mm) | 0.18~0.40(0.50) |
| Welding material |
tinplate steel-base |
| Copper wire(mm) | Φ1.5 T2 |
Cooling water |
>=0.3MPa 8~10L/min |
| Weight(kg) | 1000 |
| Dimensions(mm) | 2200*1100*1600 |
Product features
1. The equipment is easy to maintance and repair, can welding many size of cans which need not to add other accessoriers.
2. Adopt Japan's mitsubishi PLC and frequency conversion speed governor control system.
3. Welding current is using a new generation digital circuit microcomputer control, with the function of gently rising and slow function at front and back end of current.
4. Welding positioning device with upper and lower limit, prevent loose function.
5. Small can using tiles jig, the can body non-deformation after welding, easily flanging at next working procedure.
6. Galvanized material adopt double copper wire technique, the copper wire with zinc layer can't reusable, ensure the welding quality, according to the different material, also can use single copper wire welding.
7. Welding pressure, wire reservoin pressure have a table show, intuitive and convenient to adjust.
8. Electric component from world famous brand:MITSUBISHI, OMRON, LG, SCHNEIDER, and SEMIKRON
Advantages
1).More than 18 years experience and reputation both at home and abroad;
2).Quality Assurance, excellent after service and reasonable price;
3).Reliable and safe to control, easy to operate and maintain;
4).High speed, high production efficiency, save labor force;
5).Equipped with human-computer interface and PLC; adopt digital control technology;

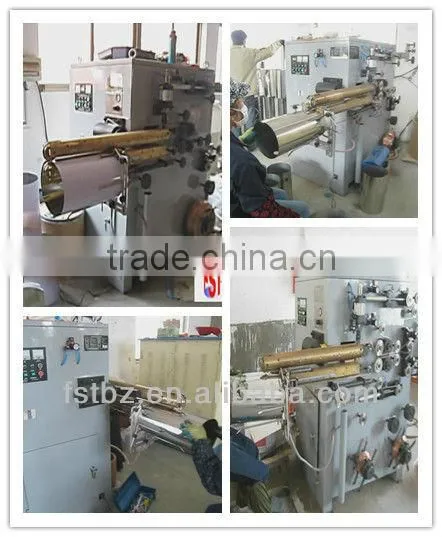

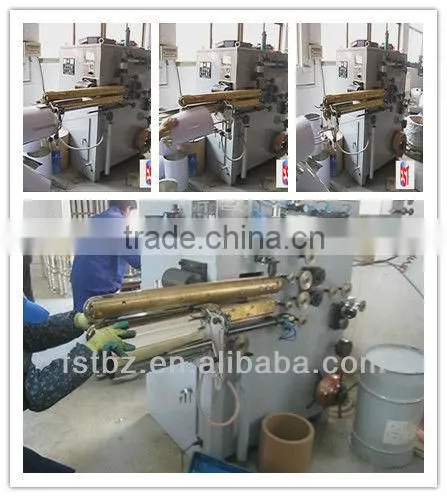

Production image
The advantages of our machine
1 After service:after machine arrived,our company will send engineers to install and debug. we also provide free training until staffs can used by themselives.
2 Electrical component:
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from German.
BOURNS potentiometer from America.
3 Payment:T/T,30% deposit,the rest should be pay off before shippment.
4 Package:plywood(standard export packing).
5 Guarantee:1 year.
Our service
A. one year warranty for the whole system.
B. Free equipment installation and debugging.
C. Atfer one year,we can help you to maintain the machine and accessories are provide only the coat price.
D. We can help you to design the production line ,workshop and provide turn key project.
Sample show-case
this is samples of chemical/paint can, oil barrels,food cans, adhesive cans,biscuit can etc. please supply the can size(diameter/height/thickness) or cans pictures.we will recommend the proper machine for you.
Packing & shipping
Packaging Details: To be packed in plywood case for can machine.
Delivery Detail: 30 days after recived the deposit for can machine.
Customers visit
1 Our machines had exported all over the world.
2 The main market:Southeast Asia,South America,Africa,Mid-East and Russia.
3 More than 30 countries: Egypt, Russia,Turkey,Thailand,North Korea,Pakistan,Kazakhstan,
India,South Africa and so on.
About our company
Suzhou First Packing Machinery Co,.Ltd
Suzhou First Packing Machinery Co.Ltd was founded in 1997. we specialize in various of tin cans making machines/production line, such as round/square can semi-automatic production line; Conical closed/open barrel can production line, we also provide various two-piece and three-piece can production line.
Other products
To dear customer
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 16 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
Welcome to visit our company for business negotiation!
Any question or interest in our machinery, please feel free to contact me!
