Specifications
semi auto stainless steel tube seam welding machine1 Easy to operate, durable
2 Precision performance
3 delivery in time
1 Main technical parameter
Power |
3N380V/50Hz 25KVA |
Weeding speed |
4-8m/min |
Material |
Thin-galvanized sheets Tin-plated sheets Cold roller sheets |
Thickness(mm) |
0.3-1.0 |
Diameter range(mm) |
Φ150-Φ500 |
Height range(mm) |
≤1000mm |
Overlap(mm) |
6-8 |
Copper wire |
Φ1.8-Φ2.0 T2 |
Dimensions(mm) |
2500×1100×1600 |
Weight(kg) |
1200 |
2 Products feature
The new combination of welding structure which keep the welding electrode in good
hardness and no damage under large pressure . Apply to welder more thick and length
barrel.

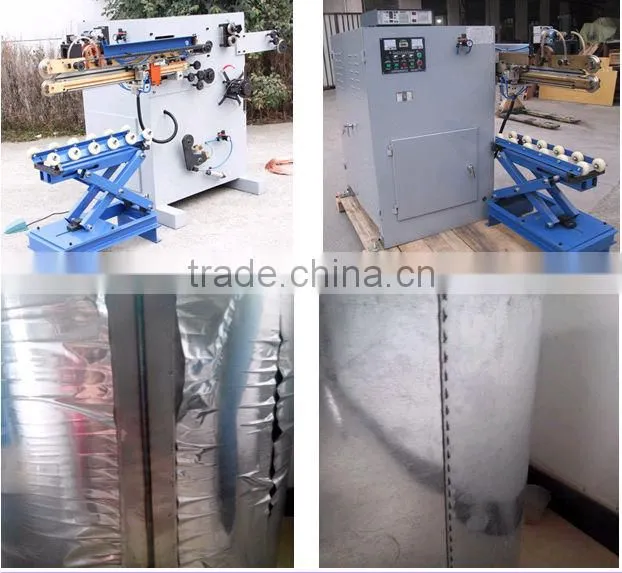

3 The detail picture of machine
The overlap seam welding machine is used for welding circular metal sheet.is most popular in pipe making,such as:chimney and ventilation pipe.it also have 2 types of welding line:continuous weld and intermittent weld.
4 Sample show-case
this is samples of chemical/paint can, oil barrels,food cans, adhesive cans,biscuit can etc. please supply the can size(diameter/height/thickness) or cans pictures.we will recommend the proper machine for you.
5 Customers visit
1 Our machines had exported all over the world.
2 The main market:Southeast Asia,South America,Africa,Mid-East and Russia.
3 More than 30 countries: Egypt, Russia,Turkey,Thailand,North Korea,Pakistan,Kazakhstan,
India,South Africa and so on.
6 About our company
Suzhou First Packing Machinery Co,.Ltd
Suzhou First Packing Machinery Co.Ltd was founded in 1997. we specialize in various of tin cans making machines/production line, such as round/square can semi-automatic production line; Conical closed/open barrel can production line, we also provide various two-piece and three-piece can production line.
7 The advantages of our machine
1 After service:after machine arrived,our company will send engineers to install and debug.
we also provide free training until staffs can used by themselives.
2 Electrical component:
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from German.
BOURNS potentiometer from America.
3 Payment:T/T,30% deposit,the rest should be pay off before shippment.
4 Package:plywood(standard export packing).
5 Guarantee:1 year.
8 To dear customers
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 16 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
9 Contact way
choose one way you like,and send me by mail or call me or online.
