Specifications

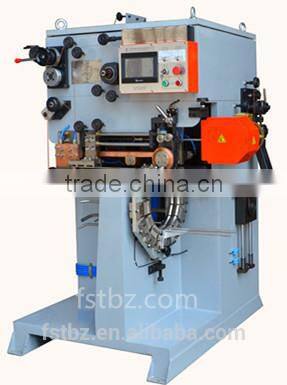

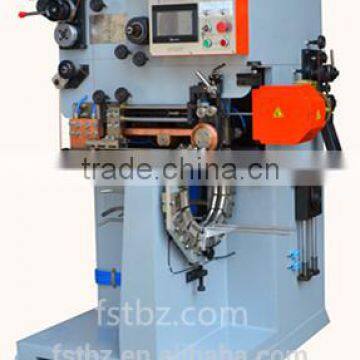

Tinplate can body welding machine
1 Easy to operate, durable
2 Precision performance
31 year service
1 The main technical parameter
| model | FB2000-A | FB2000-B |
| input power | 3N380V/50HZ 15KVA | |
| welding speed | <=12m/min | |
| productivity(cpm) | 20~50 | |
| can diameter(mm) | Φ65~Φ290 | Φ52~Φ180 |
| can height(mm) | 70~420(500) | |
| welding frequency | 80~250HZ | |
| welding material | tinplate | |
| overlap(mm) | 0.6~1.2 | 0.4~0.9 |
| material thikness(mm) | 0.18~0.4 | 0.18~0.35 |
| copper wire(mm) | Φ1.5 T2 | |
| cooling water | 0.3MPa 8~10L/min<=20 | |
| weight(kg) | 1300 | |
| dimensions(mm) | 1350*1200*2000 | |
2 Product feaure

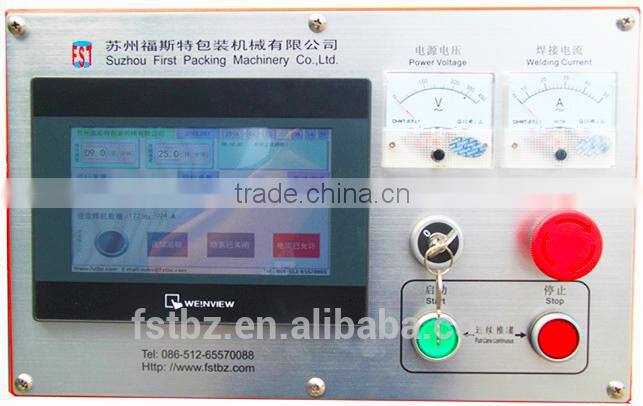

1. Adopt Japan's Panasonic PLC and Mitsubishi frequency conversion speed governor control system, touch screen operation.
2. The new type variable frequency power supply with communication interface, also have constant current and attenuation function of front and back end of the curret.
3. Through sensor and program can precise control front and back end welding current location.
4. Have 2 type foot step and automatic.
5. Change the sizing gauge can welding different size of cans.
6. Comprehensive monitoring of equipment operation and with failure self detected and arlarms system, also provide solution proposal.
7. Electric component from world famous brand:PANASONIC, MITSUBISHI, OMRON, SMC, SCHNEIDER and LG.

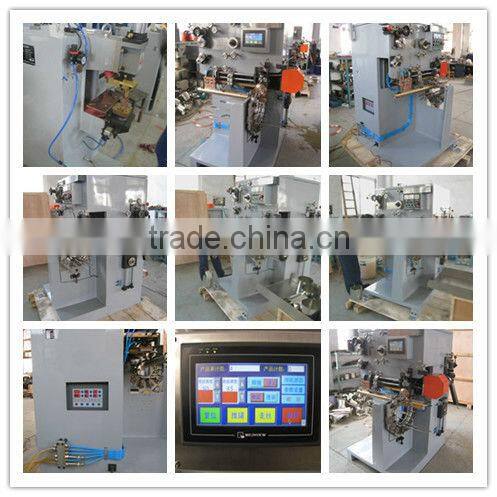

3 The detail picture of machine
4 What kind cans type can we make?
this cans mainly used for chemical/paint can, oil barrels,food cans, adhesive cans, garbage
basket,spray cans,coffee can,tea can,biscuit can etc. you just only supply the can size(diameter/height/thickness) or cans pictures.we will provide proper machine for you.
5 How many country did us exported?
1 Our machines had exported all over the world.
2 The main market:Southeast Asia,South America,Africa,Mid-East and Russia.
3 More than 30 countries: Egypt, Russia,Turkey,Thailand,North Korea,Pakistan,Kazakhstan,
India,South Africa and so on.
6 The advantage of machine
1 After service:after machine arrived,our company will send engineers to install and debug. we also provide free training until staffs can used by themselives.
2 Electrical component:
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from German.
BOURNS potentiometer from America.
3 Payment:T/T,30% deposit,the rest should be pay off before shippment.
4 Package:plywood(standard export packing).
5 Guarantee:1 year.
7 About our factory
Suzhou First Packing Machinery Co,.Ltd
Suzhou First Packing Machinery Co.Ltd was founded in 1997. we specialize in various of tin cans making machines/production line, such as round/square can semi-automatic production line; Conical closed/open barrel can production line, we also provide various two-piece and three-piece can production line.
8 Other products
9 To dear customer
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 16 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
Welcome to visit our company for business negotiation!
Any question or interest in our machinery, please feel free to contact me!
