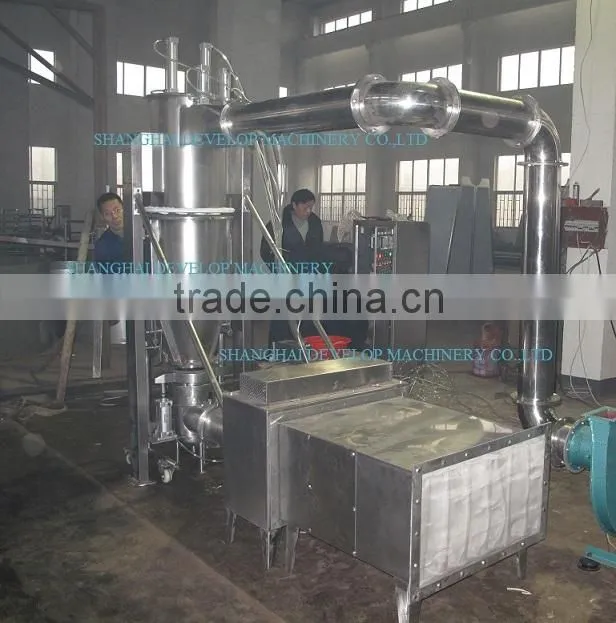

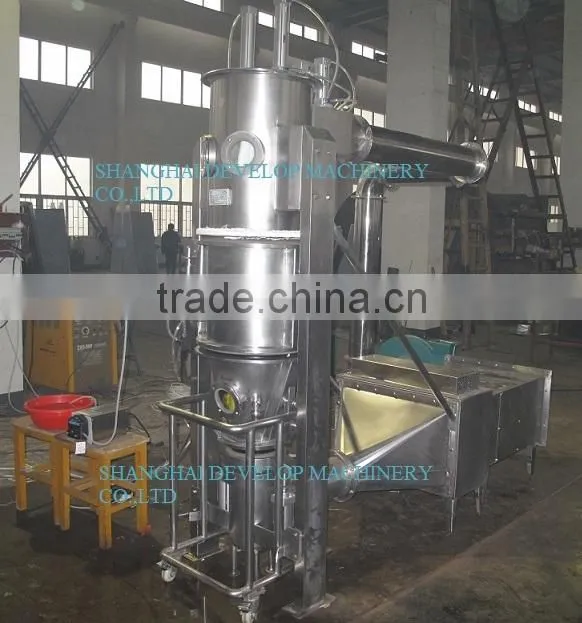

FL-30 Fluid Bed Granulator

Name: FL-30 Fluid Bed Granulator
Brand: Develop-MC
SKU: 121850211

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Develop-MC

Model Number:

FL-30

Shanghai Develop Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Develop-MC

Model Number FL-30

Application Powder

Type Drying Machine

After-sales Service Provided Engineers available to service machinery overseas

Specifications

fluid bed granulator
GMP
ISO9001
touching parts sus304 or 316L

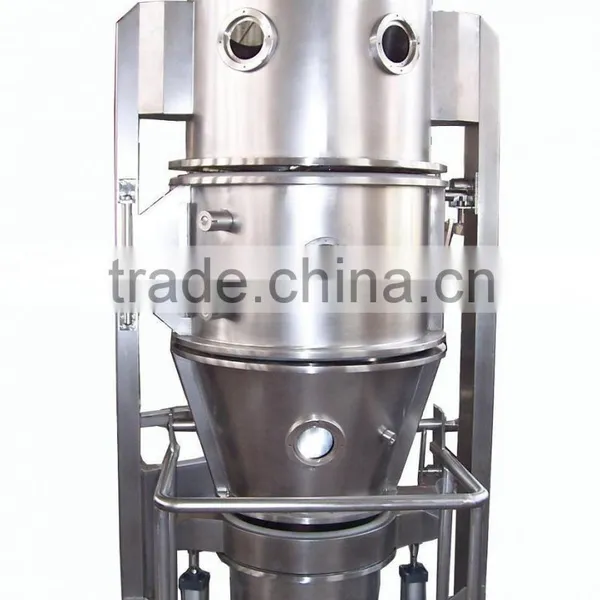

FL-30 Mini Fluidized bed Granulator

Use &Features

Pharmaceutical industry: table, capsule, low sugar or no sugar granule of Chinese medicine

Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.

Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.

Pharmaceutical industry:tablet.

Main Introduction:

Because of powder Granulating, the flow property is improved and the dust is reduced;

Because of powder Granulating, its solving property is improved;
The mixing, Granulating and drying can be completed in one step inside the machine;
The operation of equipment is safe because the anti static filtering cloth is adapted;
The operation personnel can not be damaged if explosion is taken place because there is releasing hole;
The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.

Technical Parameters

Item		Unit	Type
Item		Unit	3	5	15	30	60	120	200	300	500
container	volume	L	12	22	45	100	220	420	670	1000	1500
container	diameter	mm	300	400	550	700	1000	1200	1400	1600	1800
capability	min.	kg	1.5	4	10	15	30	80	100	150	250
capability	max.	kg	4.5	6	18	36	72	140	240	360	600
fan	capacity	m3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
	pressure	mm H2O	375	375	480	480	950	950	950	950	950
	power	kW	3	4	5.5	7.5	11	18.5	22	30	37
steam expend iture		kg/h	15	23	42	70	141	211	282	366	451
compressed air expenditure		m3/min	0.6	0.6	0.6	0.9	0.9	0.9	1.1	1.5	1.5
weight of the main body		kg	250	300	700	900	1100	1300	1500	1800	2000
steam pressure		MPa	0.3-0.6
temperature		°C	adjustable at the range from room temperature to 120°C
working time		min	decided in accordance with the properties of raw materials
field		%	≥99%
noise		dB(A)	When installation, main machine is separated from fan
size		m	1.0x0.55 x1.8	1.2x0.6 x2.1	1.25x0.75 x2.1	1.6x0.9 x2.3	1.85x1.25 x3	2.2x1.65 x3.3	2.34x1.7 x3.8	2.8x1.9 x3.8	3x2.25 x4.2
