Specifications
mixing machineCE standard
GMP standard
SUS304 OR SUS316L
safety sensor

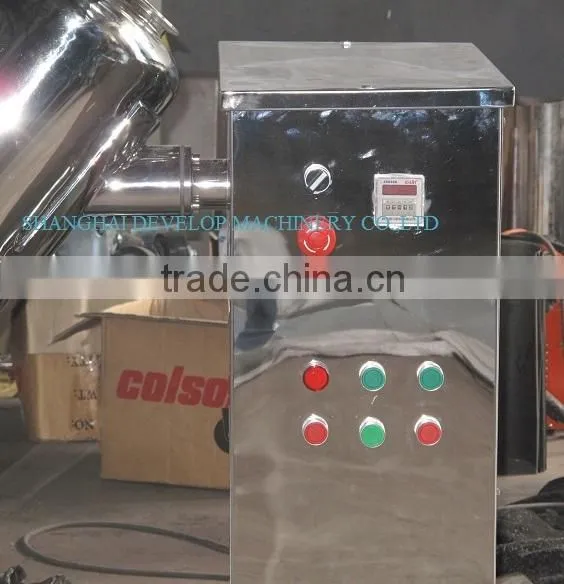

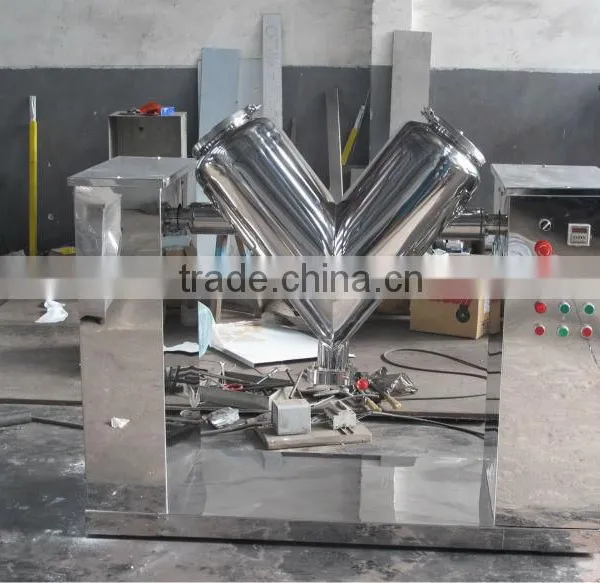

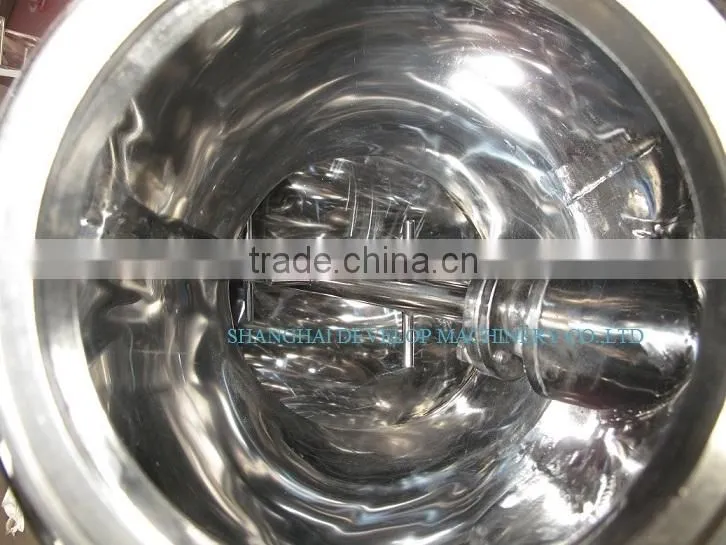

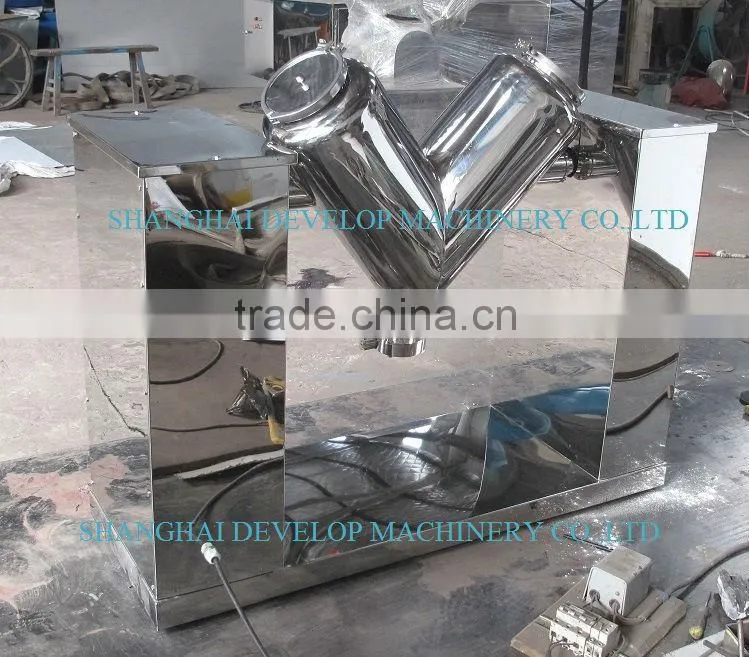

VB-50 Blending machine with intensifier bar
Features:
The forced stirring mixer is designed on the basis of absorbing foreign high technology. This machine can mix fine powder, caked or more two powder raw material with moisture. Particularly it can also mix raw material that need to be mixed with small amount of additive.
Technical parameters:
Type |
Barrel Capacity (L) |
Effective Capacity (L) |
Effective Capacity (Cubic feet) |
Max Feeding Volume coefficient |
Max Feed weight (KG) |
Intensify bar’s mixing speed |
Stirring speed(rpm) |
Mixing time (min/batch) |
Motor Power (kw) |
Overall size (mm) |
weight |
VB-50 |
50 |
30 |
1.06 |
0.6 |
21 |
500 |
12 |
6-8 |
1.1+0.55=1.65 |
1500*500*1260 |
120 |
VB-100 |
100 |
60 |
2.12 |
0.6 |
42 |
500 |
12 |
6-8 |
1.1+1.1=2.2 |
1900*850*1750 |
320 |
VB-180 |
180 |
108 |
3.82 |
0.6 |
76 |
500 |
12 |
6-8 |
1.1+1.1=2.2 |
2100*850*1750 |
420 |
VB-300 |
300 |
180 |
6.36 |
0.6 |
125 |
500 |
12 |
6-10 |
1.1+1.5=2.6 |
2300*1050*1900 |
550 |
VB-500 |
500 |
300 |
10.6 |
0.6 |
210 |
500 |
12 |
6-10 |
2.2+2.2=4.4 |
2600*1050*2100 |
800 |
VB-1000 |
1000 |
600 |
21.2 |
0.6 |
420 |
500 |
12 |
8-15 |
3+4=7 |
2800*1450*2700 |
1300 |
VB-1500 |
1500 |
900 |
31.8 |
0.6 |
630 |
500 |
12 |
8-15 |
5.5+4=9.5 |
3190*1600*3100 |
1600 |
VB-2000 |
2000 |
1200 |
42.4 |
0.6 |
840 |
500 |
12 |
8-15 |
7.5+4=11.5 |
3800*1900*3310 |
2000 |
